Contact for Pricing

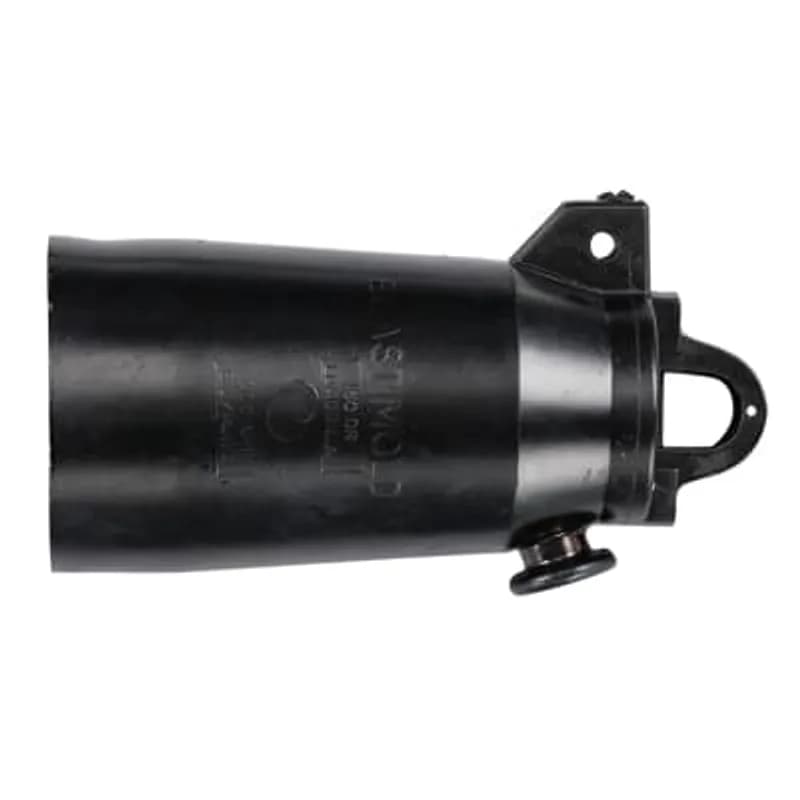

Overview
- 200 Amp current rating
- 15kV voltage rating
- Probeless cap loadbreak design
- G90 steel enclosure
- Center feed type, 2-gang configuration
Specifications
Application | 15 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Probeless Cap |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.5000 L |
Package Weight (Metric) | 0.6800 kg |
J4-6226-15
4 Point Junction, with one 200 Amp Bushing Well Interface, two 600 Amp Bushing interfaces and one 200 Amp Bushing Well Interface, 15kV, No Tilt Mounting.
Frequently Asked Questions
What is the 160DR insulated cap used for?
The 160DR insulated cap is a separable connector used to dead-end specific Elastimold® mating products on 15kV class, 200 Amp load systems. It is fully shielded, submersible, and hot stick operable.
What is included in the 160DR kit?
Each 160DR kit contains one 160DR insulating cap, one lubricant 82-08, and one installation instruction IS-0893.
What is the DC 15-minute withstand voltage?
The DC 15-minute withstand voltage for the 160DR is 53kV.
What is the AC one-minute withstand voltage?
The AC one-minute withstand voltage for the 160DR is 34kV.
What is the BIL impulse withstand rating?
The BIL impulse withstand rating for the 160DR is 95kV (1.2 x 50 microsecond wave).
What standards does the 160DR meet?
The 160DR meets ANSI/IEEE Standard 386, Latest Revision.
Is there a version of the 160DR without a probe?
Yes, the 160DRA is available without the probe.
What Elastimold products are compatible with the 160DR?
The 160DR is compatible with Elastimold® 1601A4 Bushing insert, 1602A3R Feed-thru insert, 164FT Feed-thru, and 164 series junctions.
Does the 160DR cap include a ground wire connection?
Yes, the 160DR insulated cap includes a provision for a ground wire connection.
Can the 160DR cap be operated with a hot stick?
Yes, the 160DR insulated cap is hot stick operable and has a provision for hotstick operation.
How to Install the 160DR(3) Insulated Cap
This guide provides step-by-step instructions for safely installing the ELASTIMOLD 160DR(3) insulated cap, designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces.
Estimated time: 20m
Tools needed:
Hotstick, Wire strippers, Screwdriver
Supplies needed:
160DR(3) Insulated Cap, Lubricant (supplied), Electrostatic grounding wire (No. 12 to No. 14 copper)
- Prepare for Installation and Ensure Safety
De-energize all apparatus before beginning installation. Ensure the product is installed only by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, proper rating, and compatibility with mating components. If the product has a protective shipping cover, remove it and replace with the appropriate HV insulated cap or connector before submerging or energizing the circuit. Do not touch or move energized products by hand.
- Connect Electrostatic Grounding Wire
Connect an electrostatic grounding wire, equivalent to No. 12 to No. 14 copper, to the grounding eye of the insulated cap and twist it tight. Connect the free end of this wire to the system ground, leaving enough slack for hot-stick operation. CAUTION: Train the electrostatic grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach it without first pulling the insulated cap off the bushing with a hotstick.
- Lubricate the Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE other lubricants, as they may harm the product. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated with the locking ring seated. Detach the hotstick from the insulated cap.
