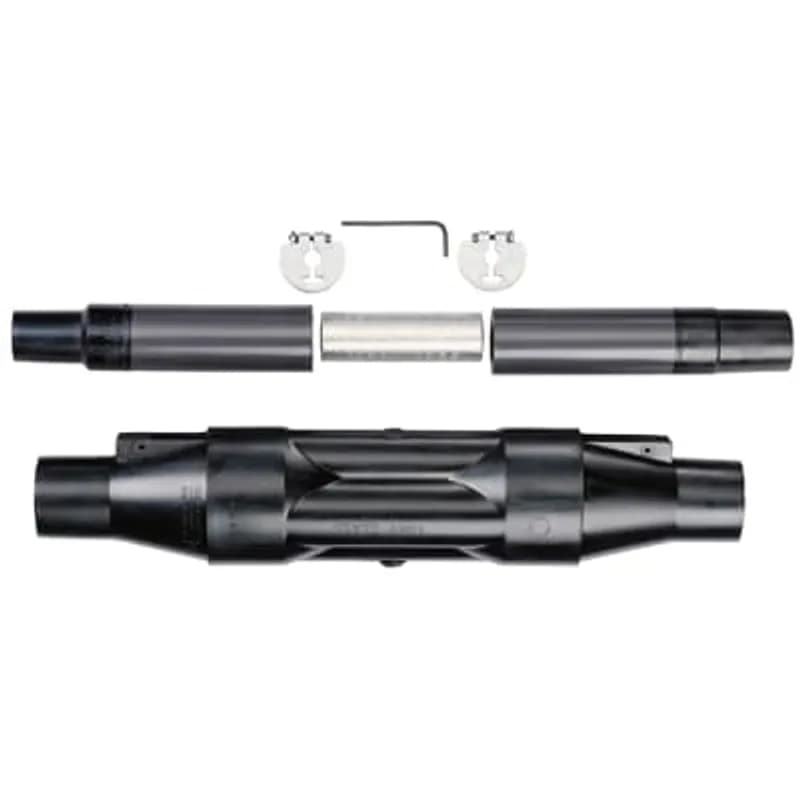

ABB Installation Products 15PCJ2G1240 15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable…
UPC: 783786642250
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Rated for 15kV medium-voltage applications
- Universal housing accepts 0.640" to 0.820" insulation diameters
- Compatible with 1/0 AWG stranded or 2/0 solid aluminum conductors
- Separate cable adapters for flexible installation
- Designed for industrial and utility power distribution systems
Specifications
Application | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
Color | Black |
Conductor Range | 1/0 STR AWG , 2/0 SOL AWG |
Connection | Compression |
Insulation | Yes |
Material | Aluminum |
Material | EPDM Rubber |
Number Of Conductors | 2 |
Size | 16-3/8 inch long |
Size | Cable Insulation Diameter 0.640 inch to 0.820 inch |
Special Features | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable |
Standard | IEEE Standard 404 |
Type | Power Cable Joint |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.7500 L |
Package Weight (Metric) | 0.7940 kg |

15PCJ1M2400
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Conductor. Conductor Size AWG Solid 1000.
15PCJ2G1240-F1230
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded 1/0 /Solid 2/0. Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded #1/Solid 1/0.
15PCJ2G1240-F1210
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded 1/0 /Solid 2/0. Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded #3/Solid #2.
35PCJ1Q1400
35kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.900 inch to 2.120 inch. Aluminum Conductor. Conductor Size AWG Solid 1000.
15PCJ1L1270
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Conductor. Conductor Size AWG Stranded 4/0 /Solid 250.
15PCJ1H2260
15kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Conductor. Conductor Size AWG Stranded 3/0 /Solid 4/0.
35PCJ1P1400-S
35kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Conductor. Conductor Size AWG Solid 1000. Cold-Shrinkable Jacket Seal Included.
15PCJ2G1240-F1220
15kV Power Cable Joint Style 2 with Universal Housing and Separate Cable Adapters. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Conductor. Conductor Size AWG Stranded 1/0 /Solid 2/0. Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Conductor. Conductor Size AWG Stranded #2/Solid #1.Frequently Asked Questions
What conductor sizes does this joint support?
The joint supports 1/0 AWG stranded or 2/0 solid aluminum conductors.
What insulation diameter range does this joint accommodate?
The joint is designed for cable insulation diameters from 0.640 to 0.820 inches.
What is the voltage rating of this cable joint?
This cable joint is rated for 15kV operation.
Is this joint compatible with solid conductors?
Yes, the joint supports 2/0 solid aluminum conductors.
Does this joint require specific cable adapters?
The joint uses separate cable adapters to match different cable sizes.
How to Install the 15/25/35PCJ2WXXXX---RC Cable Joint
This guide provides step-by-step instructions for the permanent, fully shielded, and submersible installation of the 15/25/35PCJ2WXXXX---RC straight joint for aluminum and/or copper conductor, wire shielded cables.
Estimated time: 1h 30m
Tools needed:
Stripping guide, Circular cutting tool or glass scraper, Hex wrench, Crimping tool, Wirebrush, Multimeter (for de-energizing verification)
Supplies needed:
Joint Housing, Splice (Conductor Contact), Cable Adapters, Lubricant, Retaining Collars, Hose Clamp, Electrical tape, Appropriate HV insulated cap(s) or connector(s), Connector (for shield wires), Bonding cable(s), Insulating and sealing tapes, Solder, CNW’s connectors, No. 14 AWG copper wire or equivalent, Heat or cold shrink materials
- Pre-installation Safety and Preparation
DANGER: De-energize all apparatus during installation or removal of parts. Ensure all work is performed by competent personnel trained in high voltage electrical equipment safety practices. Inspect all parts for damage, rating, and compatibility. Check the kit contents against the component list to ensure completeness. Read all instructions thoroughly before starting. Gather all required tools and maintain cleanliness throughout the procedure. Examine mating cable ends to ensure they are free from moisture and contaminants. Remove any graphite coatings 12 inches (30.5cm) beyond the cable jacket cut using a circular cutting tool or by scraping with glass; avoid sanding as it may embed conductive particles. If strand-filled or water-blocking material is present in conductors, contact the cable manufacturer for welding/crimping procedures. If the product came with protective shipping covers, remove them and replace with appropriate HV insulated caps or connectors before submerging or energizing the circuit.
- Prepare Cable 1 and Install Housing
Using the stripping guide, carefully remove the cable jacket (if applicable) from both cables for a distance of 11-1/4 inches (285.7mm). Fold back the shield wires and tape the end of the wires on Cable 1 to the jacket, allowing enough extra length to rejoin over the joint later. Clean the surface of the insulation shield, shield wires, and jacket for a distance of 30 inches (760mm). Slide the joint housing onto Cable 1 to a distance of 30 inches (760mm).
- Prepare Cable Insulation
Using the stripping guide, carefully remove the insulation shield and cable insulation. DO NOT CUT OR NICK THE INSULATION, as this could lead to assembly failure. Wrap two turns of tape 1 inch (25mm) from the edge of the insulation shield on both cables to serve as a marker. Clean the cable insulation, then lubricate it to provide a build-up or ramp of lubricant at the edge of the insulation shield.
- Install Cable Adapters
Take one cable adapter and lubricate the inside of both ends. Install the cable adapter onto the cable until it meets the tape marker as shown in the documentation. Repeat this process for the other cable adapter on the second cable.
- Install Retaining Collars
Select the correct retaining collar and partially thread the proper size setscrews, following the instructions packaged with the collars. Position the retaining collar over the insulation and flush against the cable adapter. Using the supplied hex wrench, tighten each set screw only one or two turns at a time to keep the collar centered over the insulation. Continue to tighten the set screws until they are below the surface of the collar. Repeat this procedure for Cable 2.
- Install the Splice
Thoroughly clean the end of the cable adapters and the cable where indicated. Install the hose clamp around the adapter on the opposite side of the splice from where the housing is stored, as shown, to hold the adapter in place during final assembly. Tape over the hose clamp to form a smooth surface. Wirebrush the exposed conductors of both cables and immediately insert them into the splice. Ensure the 'Check' dimension does not exceed 8-1/2 inches (215mm); if it does, redo the assembly. Crimp the splice following the recommendations provided with it. Wipe off all excess inhibitor. Check the distance between the cable adapters; if it exceeds 8-3/4 inches (222mm), redo the assembly. Clean and lubricate the outside surface of the cable adapters before sliding the housing into its final position.
- Complete Joint Assembly
Slide the housing into its final position, centering it over the cable adapters. Remove all temporary tape. Ensure that cable and adapter insulation are not exposed after positioning the joint. Reshape the shield wires and secure them to the ends of the joint as shown. Insert one of the shield wires from Cable 1 (if #14 AWG or larger) through the joint grounding eye. Repeat this for Cable 2. If shield wires are smaller than #14 AWG, use a separate #14 AWG copper wire or equivalent. Connect the joint grounding wires and any remaining shield wires using an appropriate connector. Reconstruct the cable jacket (where applicable) over both cables and also over the joint housing using heat or cold shrink materials (note: these materials are not included in this kit).
