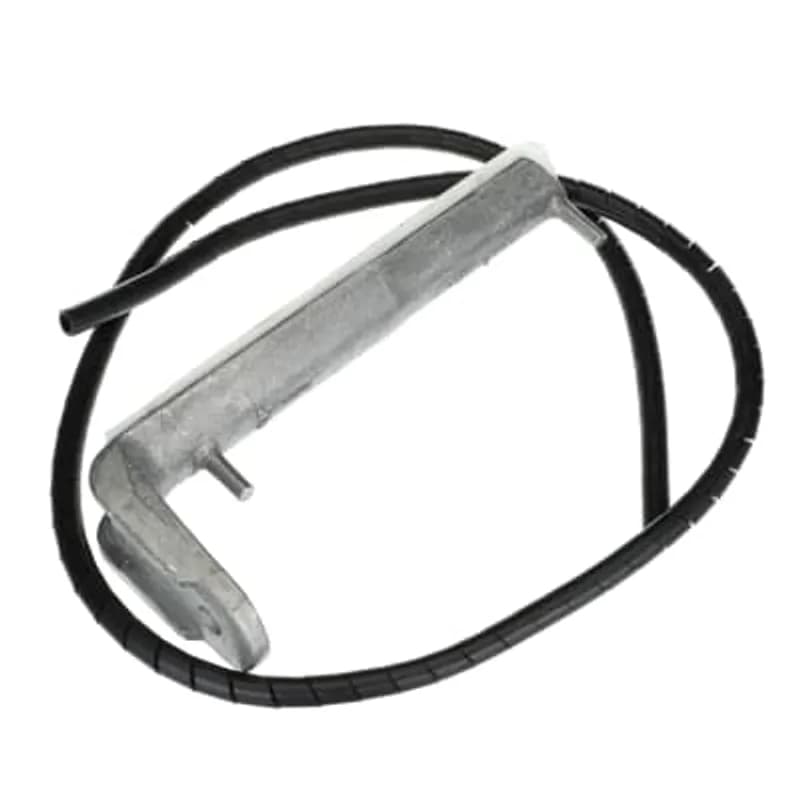

ABB Installation Products 1535AFB-1 Aluma Form bracket for all voltage class use with PCT-1 or PCT-2 terminators.
UPC: 783786628728
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Universal compatibility with PCT-1 or PCT-2 terminators across all voltage classes
- Durable aluminum construction for structural integrity and corrosion resistance
- Designed for overhead and underground distribution system applications
- Secure mounting solution for reliable electrical terminations
- Facilitates efficient maintenance and installation of power distribution networks
Specifications
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Bracket |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
1535AFB-5
Aluma Form bracket for tri-mounting for all voltage class use with PCT-1 or PCT-2 terminatorsFrequently Asked Questions
What terminators is this bracket compatible with?
The 1535AFB-1 bracket is designed for use with ABB PCT-1 or PCT-2 terminators.
What voltage classes does this bracket support?
The bracket is designed for universal application across all voltage classes.
What material is the bracket made from?
The bracket is constructed from aluminum for durability and corrosion resistance.
Where can this bracket be used?
It is suitable for overhead and underground distribution system applications.
What is the primary function of this bracket?
The bracket provides a secure mounting solution for electrical terminations.
How to Install the 1535AFB-1 Basic Bracket
This guide provides instructions for installing the 1535AFB-1 basic bracket, designed to support terminators and cables on a horizontal mounting surface. DANGER: Ensure all apparatus are de-energized during installation. This product should only be installed by competent personnel trained in high voltage electrical equipment safety practices.
Estimated time: 45m
Tools needed:
Wrench, Screwdriver, Utility Knife
Supplies needed:
Mounting hardware (bolts/screws), Grounding connector, Grounding wire
- Prepare Mounting Surface
If using a pole, crossarm, or riser pole bracket, install it first according to its separate instructions. Ensure the chosen mounting surface is secure and ready for the 1535AFB-1 bracket.
- Attach 1535AFB-1 Bracket
Securely attach the 1535AFB-1 bracket to the prepared pole bracket or other horizontal mounting surface using appropriate mounting hardware. Verify that the arrow on the 1535AFB-1 bracket is pointing upwards.
- Prepare Adhesive Surface
Carefully remove the protective sheet from the adhesive surface of the bracket.
- Position Cable
Place the cable, including any concentric neutral wires, against the exposed adhesive surface. Allow sufficient cable length for the subsequent installation of the terminator, as specified in the terminator's instructions.
- Secure Cable with Tie Wrap
Wind the provided polyethylene tie wrap 1-1/2 to 2 turns around the top tie horn and then around the cable to secure it firmly.
- Fasten Snap Hose Clamps
Fasten a snap hose clamp on the middle of each tie horn. Trim any excess tie wrap. IMPORTANT: If using concentric neutral cable, ensure the neutral wires are positioned under the tie wrap and are not unraveled or tied off below the bracket.
- Install Terminator
Install the terminator onto the cable according to the specific instructions provided with the terminator.
- Grounding Connections
Ground the concentric neutral wires from the cable(s), the electrostatic drain wire(s) from the terminator(s), and the 1535AFB-1 mounting bracket. Use a suitable grounding connector (not supplied) attached to the mounting hole provided on the bracket.
