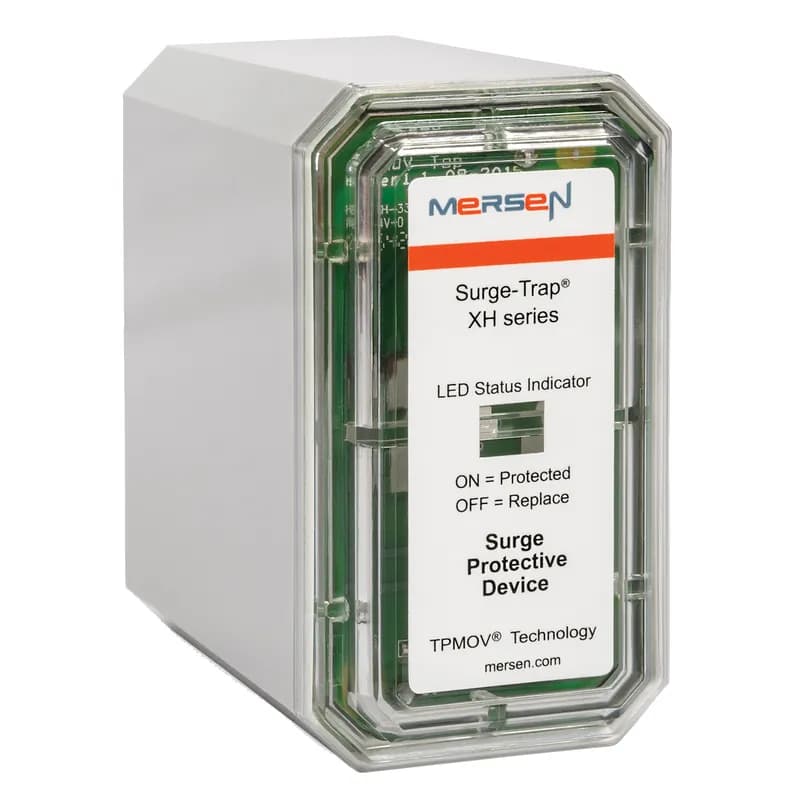

Mersen Surge-Trap STXH120P07: Type 1 SPD for 120/240VAC split-phase. Features TPMOV® technology. UL Listed, UL1449 5th Edition compliant. Compact for AC disconnects/HVAC. NEMA 4X enclosure. LED status. Fits 1/2" knockouts, 18" leads. 3 modes protection (L-N, L-L). 3-year warranty. Approvals: UL 1449 4th Ed. (Type 1), CSA C22.2 (Type 1), IEEE C62.41.1/2, C62.45, UL96A Lightning Protection, RoHS.

Surge-Trap® STXT Series 480/240V 100kA LED and Remote Audible Alarm 20kA In

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 120/208 Volts 3P Wye system type .

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 1000 Volts PV system type with microswitch .

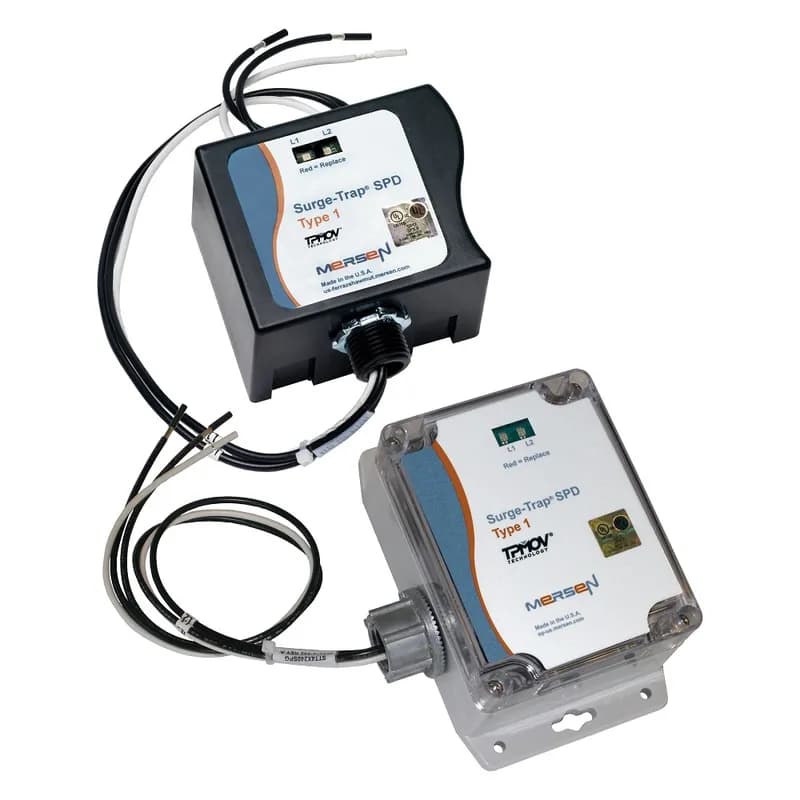

Mersen's Surge-Trap® Type 1 SPD is a fail-safe and economical solution for applications that require a NEMA-style SPD. It is UL 1449 Third Edition approved and offers a wide range of voltage configurations to meet all needs in its class. The Surge-Trap Type 1 SPD features Mersen's patented TPMOV® technology eliminating the need for additional overcurrent protection, thus providing substantial cost savings. 120/208 Volts 3P Wye system type .

Surge-Trap® Pluggable SPD provides advanced overvoltage protection. Utilizing Mersen's patented TPMOV® design, which does not require fuses, a fuse holder or additional wiring in meeting the UL 1449 Third Edition standards thus providing substantial cost savings and reduced installation times. It also features a visual indicator, easy installation, fail-safe design, mechanical coding and remote monitoring. The Surge-Trap Pluggable SPD base is designed to be mounted on 35mm DIN-rail while plugs are easily replaceable upon failure without touching the base or the hassle of rewiring. 277/480 Volts 3P Wye system type .

Mersen's Surge-Trap® Type 1 SPD is a fail-safe and economical solution for applications that require a NEMA-style SPD. It is UL 1449 Third Edition approved and offers a wide range of voltage configurations to meet all needs in its class. The Surge-Trap Type 1 SPD features Mersen's patented TPMOV® technology eliminating the need for additional overcurrent protection, thus providing substantial cost savings. 120/240 Volts split phase system type .

Surge-Trap® Pluggable SPD provides advanced overvoltage protection. Utilizing Mersen's patented TPMOV® design, which does not require fuses, a fuse holder or additional wiring in meeting the UL 1449 Third Edition standards thus providing substantial cost savings and reduced installation times. It also features a visual indicator, easy installation, fail-safe design, mechanical coding and remote monitoring. The Surge-Trap Pluggable SPD base is designed to be mounted on 35mm DIN-rail while plugs are easily replaceable upon failure without touching the base or the hassle of rewiring. 230 Volts TN1 system type .

Mersen's patented TPMOV® (Thermally Protected Metal Oxide Varistor ) eliminates common destructive failure modes associated with standard MOVs. Comprised of a voltage clamping device and a disconnecting apparatus that monitors the status of the metal oxide disk inside the TPMOV, the device is securely disconnected in the event of an overvoltage by an arc shield. Upon failure, the TPMOV is also equipped with a visual pin indicator as well as a normally open microswitch providing remote indication, if applicable. 550 Volts Short leads and Visible tabs series.

The Surge-Trap® Type 1 XT Series offers Advanced Technology. The XT features TPMOV® technology inside making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel. 127/220 Volts 3P Wye system type .

The Surge-Trap® Type 1 XT Series offers Advanced Technology. The XT features TPMOV® technology inside making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel. 127/220 Volts 3P Wye system type 200 kA surge rating with alarm .

The Surge-Trap® Type 1 XR Series meets requirements for UL1449 Third Edition and is ideal for the replacement of surge arrestors. The XR Series SPD feature TPMOV® technology inside making them the safest product available. With a small, compact design and line or load installation flexibility the XR series is the perfect fi from service entrance all the way down to a specific control panel. 480 Volts 3P Delta system type .
