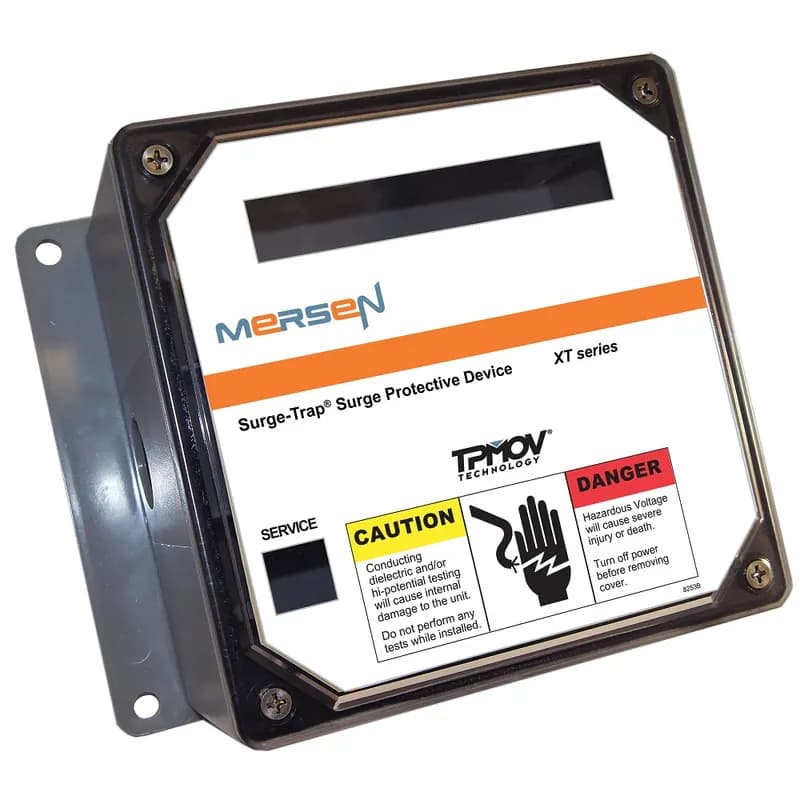

Mersen STXT21S2004XA - The Surge-Trap® Type 1 XT Series offers Advanced Technology. The XT features TPMOV® technology inside making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel. 127/220 Volts 3P Wye system type 200 kA surge rating with alarm .
Mersen

STXT21S2004XA

Alternate Item Number: 782001429300

UPC: 782001429300

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Mersen Surge-Trap® Type 1 XT Series (SKU: STXT21S2004XA) represents the pinnacle of advanced surge protection technology, engineered to safeguard critical electrical infrastructure from transient overvoltages. At the core of this robust device lies Mersen's proprietary TPMOV® (Thermal Protected Metal Oxide Varistor) technology, which offers unparalleled safety and reliability. This integrated thermal disconnect mechanism ensures that the device will safely disconnect from the power line in the event of internal failure, preventing thermal runaway and potential fire hazards, making it the safest surge protective device (SPD) available on the market. The XT Series is designed with exceptional installation flexibility, allowing for placement on either the line or load side of the protected equipment. This adaptability makes the STXT21S2004XA an ideal solution for a wide range of applications, from the main service entrance of industrial facilities and commercial buildings to distribution panels and individual branch circuits. Its versatility ensures comprehensive protection throughout the entire electrical distribution system, minimizing the risk of damage to sensitive electronic equipment, machinery, and control systems. Key features and benefits of the Mersen Surge-Trap® Type 1 XT Series include: * **Advanced TPMOV® Technology:** Provides superior thermal protection and fail-safe operation, enhancing overall system safety. * **High Surge Current Rating:** Boasts a substantial 200 kA surge rating, capable of handling severe transient events and protecting against lightning strikes and utility-grid disturbances. * **Flexible Installation:** Suitable for both line and load side mounting, offering versatile integration into existing or new electrical systems. * **System Compatibility:** Specifically designed for 127/220 Volts, 3-Phase Wye (3P Wye) systems, common in many industrial and commercial settings. * **Integrated Alarm:** Features an alarm system to provide immediate notification of device status, ensuring proactive maintenance and system monitoring. This surge protective device is crucial for industries where downtime is costly and equipment damage is unacceptable, such as manufacturing plants, data centers, telecommunications facilities, and critical infrastructure. By effectively clamping voltage surges, the STXT21S2004XA protects sensitive electronics from premature failure, reduces maintenance costs, and ensures operational continuity. Mersen's commitment to quality and innovation is evident in the robust design and high-performance capabilities of the Surge-Trap® XT Series, making it a trusted choice for professionals seeking reliable and advanced surge protection solutions.
  • Mersen Surge-Trap® Type 1 XT Series SPD
  • Advanced TPMOV® technology for enhanced safety
  • 200 kA surge rating for robust protection
  • Flexible line or load side installation
  • Designed for 127/220V 3P Wye systems with alarm
