Contact for Pricing
Overview

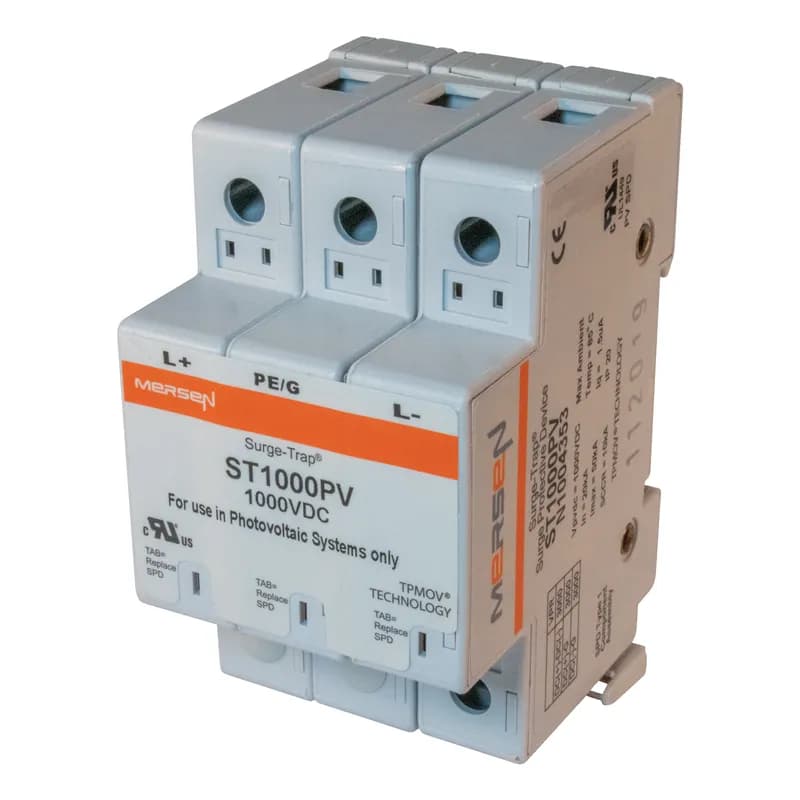

- UL 1449 5th Edition compliant, Open Type 1 SPD listed (File E210793)
- 1000V PV system compatibility with no additional overcurrent protection required
- 50kA surge current rating (Imax), 200kA short-circuit current rating (SCCR)
- DIN-rail mountable with reversible chassis for top/bottom cable entry
- Visual (green/red) and optional remote (Form C dry contacts) status indicators
- IP20 finger-safe design, UL94 V0 flammability rating, -40°C to +85°C operating range
- Replaceable modules with mechanical coding for error-free maintenance
- 5-year warranty; compliant with ANSI/IEEE C62.41.1/2/45 and RoHS
Specifications
Application | AC/DC distribution Power supplies Industrial automation Telecommunications Motor controls and starter systems Programmable logic controller (PLC) applications Power transfer equipment HVAC applications AC drives UPS systems Security systems IT / Data centers Medical equipment |
Brand Name | Mersen |
Connection | Box |
Frequency Rating | 50/60 HZ |
Material | PET (Polyethelene Terphthalate) |
Mounting | DIN Rail |
Mounting | DIN-rail |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Phase | Photovoltaic |
Short Circuit Rating | 10 kA |
Short-Circuit Rating | 10 kA |
Size | 3.58 x 2.1 x 2.7;90.932 x 53.34 x 68.58 in;mm |
Special Features | Easy installation or retrofit Din-rail mountable Fail-safe /self-protected design Remote indicator (optional) with 3 pin NO/NC contact IP20 finger-safe design Visual indicator Small foot print No additional overcurrent protection devices needed |
Special Features | Easy installation or retrofit DIN-rail mountable Fail-safe, self-protected design Remote indicator (optional) Visual indicator IP20 finger-safe design Small footprint No additional overcurrent protection devices required 2-year warranty |
Standard | UL 1449 Third Edition, File No E210793 Type 1 Component Assembly IEC 61643-1 ANSI/IEEE C62.41 CE RoHS compliant |
Standard | ANSI/UL 1449 4th Edition, Type 1 Component Assembly SPD, File E210793 ANSI/IEEE C62.41.1, C62.41.2, C62.45 RoHS Compliant |
Sub Brand | Surge-Trap® |
Type | DIN-RAIL UL CSA TYPE 1 |
Type Of Indicators | Microswitch |
UL SPD Type | Type 1 Component Assembly |
Voltage Rating | 1000 VAC |
Package Dimensions (L x W x H) | 4.88 IN x 2.88 IN x 2.75 IN |
Package Dimensions (L x W x H) | 12.3952 cm x 7.3152 cm x 6.985 cm |
Package Weight (Imperial) | 0.893 L |
Package Weight (Metric) | 0.405 kg |
