Overview

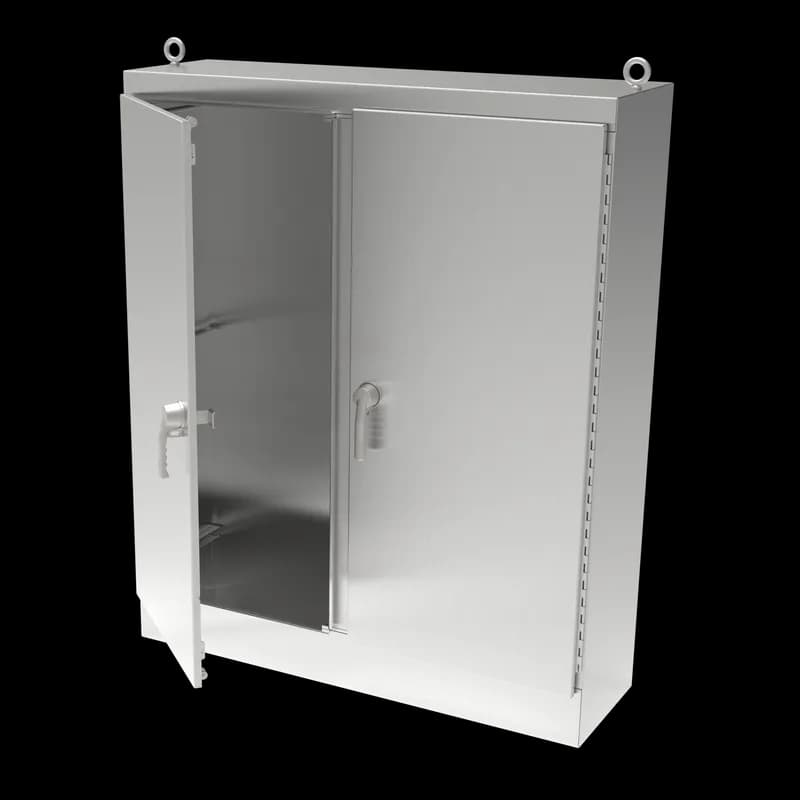

- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by cover edges
- Hinged side of cover has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20 degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Three-point latching operated by PowerGlide Type 316L padlocking stainless steel handles
Specifications
Application | Controls and Drives;Corrosive Environments;Hygienic Environments |
Application | Hygienic Environments; Controls and Drives; Corrosive Environments |
Color | Brushed |
Color | Unpainted |
Conductive Panel | A72P72G |
Depth | 18 IN |
Depth | 457 mm |
Finish | Brushed #4 |
Height | 74 mm |
Height | 1,880 mm |
IP Rating | IP66 |
Material | SS304 |
Material | Stainless Steel;Stainless Steel 304 |
Material | Stainless Steel 304 |
Modification Services | Yes |
Mounting Type | Freestand |
Mounting Type | Freestanding |
NEMA Rating | 4X |
Nema Rating | Type 4X |
NEMA Rating | 4X Watertight, corrosion-resistant |
Panel | A72P72 |
Product Family | WaterShed |
Protection Rating | NEMA Type 12 |
Series | WaterShed |
Size | 74x75x18 inches |
Size | 74x75x18 |
Size | 74.00x75.00x18.00 in |
Thickness | 51.40mm (2.024") |
Thickness | 2.78 mm |
Thickness | 12 ga |
Type | Stainless Steel Freestanding Industrial Enclosures |
Type Number | Type 3R |
Weight | 693 lb |
Width | 1,905 mm |
Width | 75 mm |
Package Dimensions (L x W x H) | 84 IN x 36 IN x 87.75 IN |
Package Dimensions (L x W x H) | 213.36 cm x 91.44 cm x 222.885 cm |
Package Weight (Imperial) | 693.000 L |
Package Weight (Metric) | 314.345 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the WS747518SS Enclosure
This guide provides step-by-step instructions for mounting and wiring the WS747518SS enclosure securely.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the enclosure
Secure the WS747518SS enclosure to the wall or floor using appropriate fasteners in all mounting holes. Ensure the enclosure is level and firmly attached.
- Install the interior panel
Position the interior panel on the mounting studs and adjust any studs as necessary to ensure a proper fit. Tighten all screws to secure the panel.
- Connect electrical components
Use terminal connectors to wire the electrical components to the enclosure. Ensure all connections are tight and verify with a multimeter for continuity.
- Calibrate the enclosure
Once all components are connected, power on the enclosure and check for proper operation. Adjust any settings as needed to ensure optimal performance.
