nVent TC5 - CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 34x32x10, Gray, Steel
nVent

TC5

UPC: 783510166731

Contact for Pricing

Overview

The nVent TC5 Current Transformer (CT) Cabinet, SKU TC5, is engineered for robust outdoor protection and security of instrument current transformers, essential for transformer-rated watt-hour metering applications. This 3-phase cabinet is designed to handle current ratings from 400 to 1200 Amps and meets NEMA Type 3R and IEC 60529 IP32 standards, ensuring reliable performance in demanding environments. Its durable construction features a 14-gauge galvanized steel enclosure body and cover, with a 16-gauge galvanized steel bottom, all finished with an ANSI 61 gray polyester powder paint for superior corrosion resistance. Beyond its primary function for current transformers, the TC5 cabinet is versatile and can serve as a junction or service box, housing meter, transformer, relay, or terminal assemblies. The hinged-cover design, with lift-off hinges for easy door removal, provides convenient access for installation and maintenance. For enhanced security, the double door features a 3-point latch system that includes a provision for padlocking, safeguarding sensitive equipment. Key features and specifications of the nVent TC5 cabinet include: * **Robust Construction:** 14-gauge galvanized steel body and cover, 16-gauge galvanized steel bottom. * **Environmental Protection:** UL 50, 50E Listed and cUL Listed per CSA C22.2 No 94, NEMA Type 3R, and IEC 60529 IP32 ratings provide protection against falling dirt and rain. * **High Current Capacity:** Suitable for 3-phase applications ranging from 400 to 1200 Amps. * **Versatile Application:** Ideal for transformer-rated watt-hour metering, junction boxes, service boxes, and housing various electrical assemblies. * **Enhanced Security:** Double door with a 3-point latch and padlock provision. * **Convenient Access:** Hinged-cover with lift-off hinges for easy door removal. * **Integrated Components:** Includes mechanical lugs for three-phase line-load connections and neutral, along with a ground lug. * **Mounting Provisions:** Welded-in collar studs for panel mounting and mounting holes on the back of the enclosure. * **Durable Finish:** ANSI 61 gray polyester powder paint inside and out. This cabinet is UL 414 Listed for models with termination lugs, further attesting to its quality and suitability for critical electrical installations. The nVent TC5 is an excellent choice for utilities, industrial facilities, and commercial buildings requiring reliable, secure, and weather-resistant enclosures for essential metering and electrical distribution components. Its sturdy design and adherence to industry standards make it a trusted solution for professionals seeking long-term performance and protection.
  • 3-Phase Current Transformer (CT) Cabinet for 400-1200 Amp applications.
  • NEMA Type 3R and IEC IP32 rated for outdoor protection against rain and falling dirt.
  • Constructed from durable 14-gauge galvanized steel with ANSI 61 gray polyester powder paint finish.
  • Features a hinged-cover double door with a 3-point latch and padlock provision for security.
  • UL 50, 50E, and UL 414 Listed for reliable and safe electrical installations.

Specifications

Package Dimensions (L x W x H)
48 IN x 32 IN x 17.5 IN
Package Dimensions (L x W x H)
121.92 cm x 81.28 cm x 44.45 cm
Package Weight (Imperial)
187.000 L
Package Weight (Metric)
84.823 kg
CT Cabinet with Lugs Type 3R, 3-Phase 800-1200 Amp, Gray, Steel

A800NECT

CT Cabinet with Lugs Type 3R, 3-Phase 800-1200 Amp, Gray, Steel
CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 46x30x16, Gray, Steel

TC5X

CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 46x30x16, Gray, Steel
CT Mounting Base 3-Phase, 800 Amp, Unpainted, Steel

CTMB8003L

CT Mounting Base 3-Phase, 800 Amp, Unpainted, Steel
CT Mounting Base 3-Phase Studs, 400-800 Amp, Unpainted, Steel

CTMB8003

CT Mounting Base 3-Phase Studs, 400-800 Amp, Unpainted, Steel
CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 46x32x14, Gray, Steel

TC3

CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 46x32x14, Gray, Steel
CT Cabinet Hinged-Cover Bar-Mount Lugs Type 3Rs, 48.07x30.00x11.00, Gray, Steel

A800HCTB

CT Cabinet Hinged-Cover Bar-Mount Lugs Type 3Rs, 48.07x30.00x11.00, Gray, Steel
CT Cabinet with Lugs Type 3R, 3-Phase 400-800 Amp, Gray, Steel

A1200NECT

CT Cabinet with Lugs Type 3R, 3-Phase 400-800 Amp, Gray, Steel
CT Cabinet Hinged-Cover Bar-Mount Lugs Type 3R, 36.07x30.00x11.00, Gray, Steel

A400HCTB

CT Cabinet Hinged-Cover Bar-Mount Lugs Type 3R, 36.07x30.00x11.00, Gray, Steel

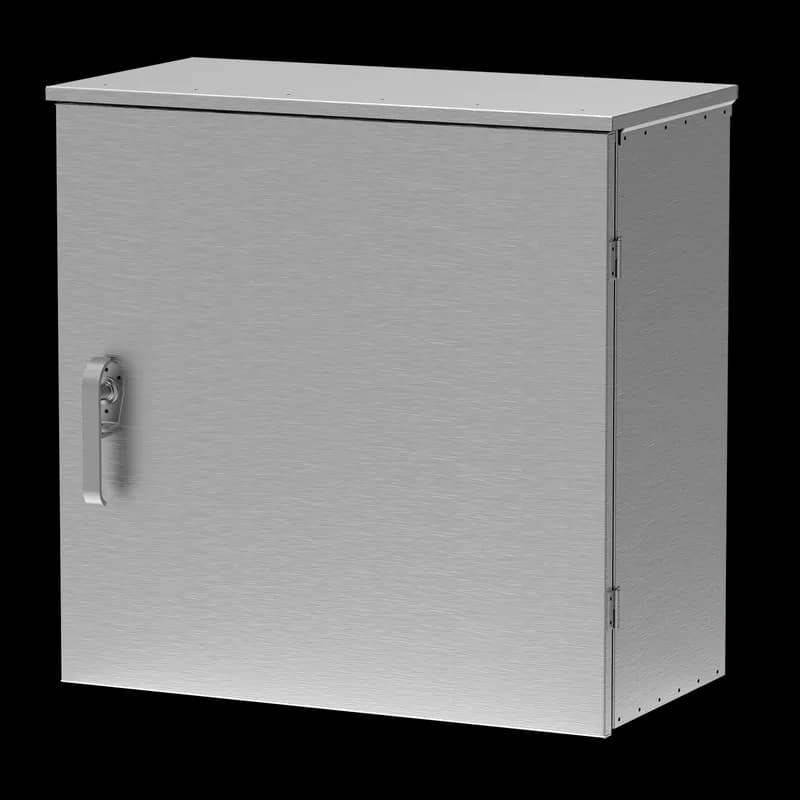

CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 32x32x15, Polished, Alum

A323215NESCT

CT Cabinet with Lugs 3-Phase 400-1200 Amp Type 3R, 32x32x15, Polished, Alum
