Overview
- 14-gauge galvanized steel construction with white powder paint finish
- Reduces enclosure temperature rise by approximately 56%
- Type 4 and 12 rated, IP66 ingress protection
- Adjustable mounting channels fit enclosures up to 12.00" x 12.00" x 10.00"
- Shields enclosures from top, sides, and rear
- NEMA/EEMAC Type 4, 12 and IEC 60529 IP66 compliant
- Includes mounting hardware and step-by-step installation instructions
- Ideal for industrial automation, telecommunications, utilities, and renewable energy
Specifications
Application | Controls and Drives |
Color | White |
Finish | Galvanized |
IP Rating | IP66 |
Material | Galvanized Steel |
Material | Mild Steel |
Mounting Type | Wall-mount |
Nema Rating | Type 4/Type 12 |
Series | Solar Shield |
Size | 16.00x16.00x11.75 inches |
Thickness | 1.99 mm |
Thickness | 14 ga |
Thickness | 51.40mm (2.024") |
Type | External Mounting for Industrial Enclosures |
Type Number | Type 4 |
Weight | 22.8 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 17.5 IN x 16.9 IN x 13.1 IN |
Package Dimensions (L x W x H) | 44.45 cm x 42.926 cm x 33.274 cm |
Package Weight (Imperial) | 22.800 L |
Package Weight (Metric) | 10.342 kg |
6011DW-25
Adjustable bar hanger. Depth 1-3/16 inch. For 3/8 inch, 1/2 inch and 5/8 inch wall board and plaster. Score marks for drywall and plaster depths. Maximum load capacity: 50 pounds (22.7 kilograms). Length: 10-1/2 inches to 18-1/2 inches. Packaged complete with fastener.
FBO6

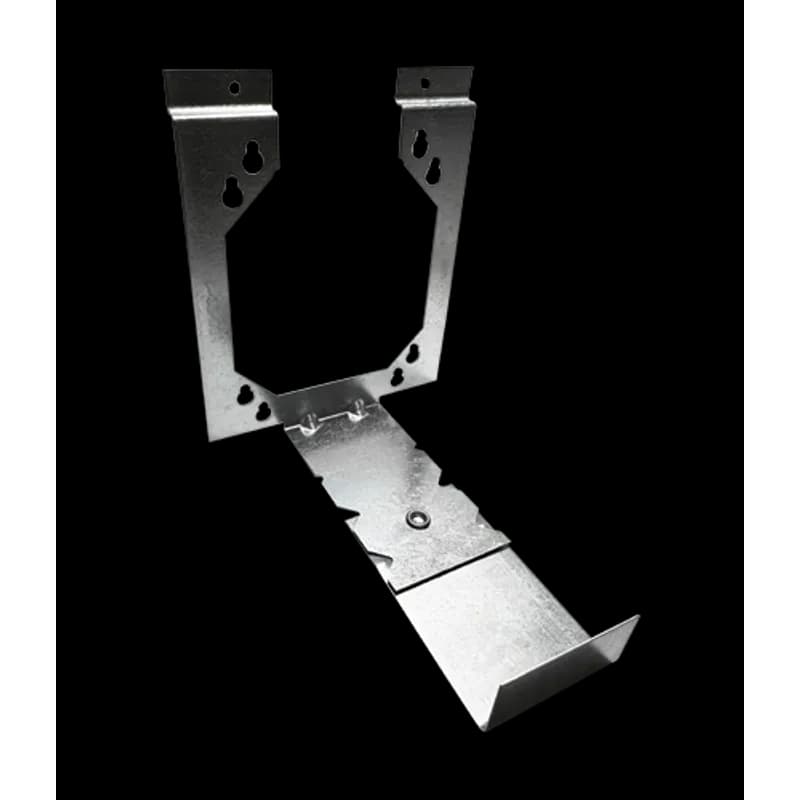

Electrical box mounting bracket and box support for 6" wood or metal studs. It is made of pre-galvanized steel with a stamped construction. The listed trade size is 5.87 x 4.75 x 6.00 and the color is silver. It is used for electrical box applications.
P6063C
6x6x3 Polycarbonate Enclosure NEMA 6P | Standard Hinge | Clear Lid | Integrated Locking Latch | Intergrated Mounting FlangeHow to Install the SW1MGLWH Enclosure
Installation guide for mounting and wiring the SW1MGLWH enclosure. Refer to the nameplate or datasheet for specific model ratings, dimensions, and electrical values.
Estimated time: 1h
Tools needed:
Screwdriver, Drill, Level, Measuring tape, Wire strippers, Wire crimpers, Multimeter
Supplies needed:
Mounting hardware (screws, bolts, anchors), Wire connectors, Grounding lug, Sealing fittings (if applicable)
- Select Mounting Location
Choose a suitable location for the enclosure. Ensure the location is accessible, provides adequate space for wiring and maintenance, and is protected from environmental hazards. Verify that the mounting surface is strong enough to support the weight of the enclosure and its contents. Check the enclosure's nameplate or datasheet for any specific environmental or location restrictions.
- Prepare the Enclosure
If necessary, drill mounting holes in the enclosure back panel according to the selected mounting method (e.g., wall mount, pole mount). Install any required conduit hubs or sealing fittings. Ensure all unused openings are properly sealed.
- Mount the Enclosure
Securely mount the SW1MGLWH enclosure to the chosen surface using appropriate mounting hardware. Use a level to ensure the enclosure is installed vertically or horizontally as required. Verify that the enclosure is firmly attached and stable.
- Install Internal Components (if applicable)
If the enclosure is to house internal components such as back panels, mounting plates, or sub-assemblies, install them now according to their specific instructions. Ensure all components are properly secured and aligned.
- Wire the Enclosure
Route external power and control wiring into the enclosure through the appropriate conduit or cable entries. Connect the wiring to the internal terminals or devices as per the wiring diagram. Ensure all connections are secure and properly insulated. Install grounding connections to the enclosure and any internal metallic components. Refer to the nameplate or datasheet for specific wiring requirements and conductor sizes. Verify all connections with a multimeter before energizing.
- Final Inspection and Sealing
Perform a final inspection of all installed components and wiring. Ensure all covers, doors, and conduit entries are properly sealed to maintain the enclosure's environmental rating (e.g., NEMA or IP rating). Close and secure the enclosure door.
