Contact for Pricing
Overview
- Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
- Three-point locking handles on all doors provide easy but controlled access; two keys included
- Rack angles are infinitely adjustable from front to rear for positioning flexibility
- Mobile base provides easy placement of cabinet
- Levelers and anti-tip bracket secure cabinet to the floor

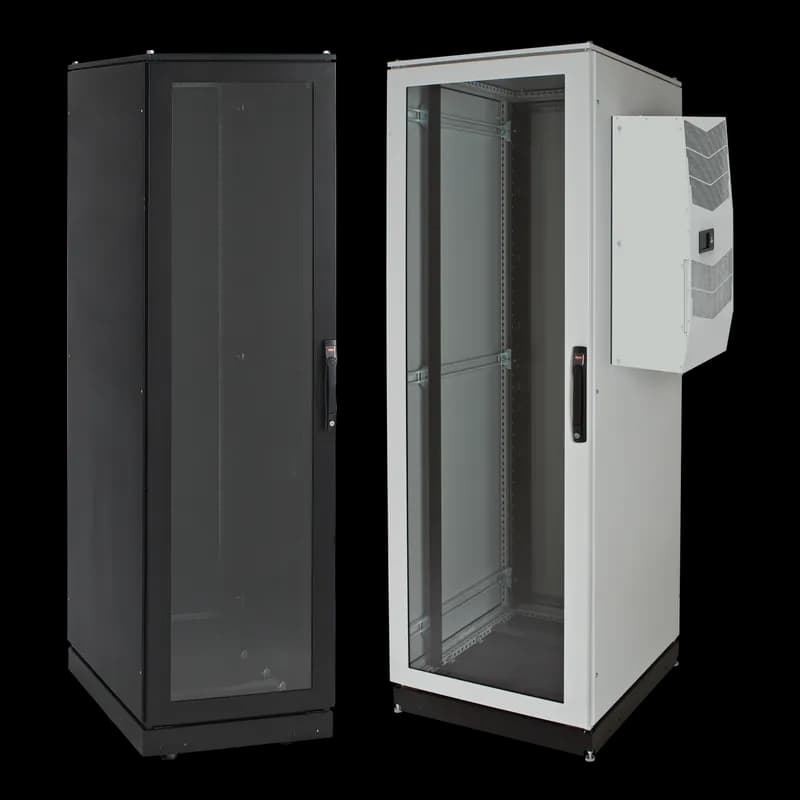

- AC package has cutout for easy in-the-field installation of SpectraCool G-Series Air Conditioner (shipped separately)
- Mobile base includes casters, levelers and gland plate
- Gland plate allows easy routing of cable
Specifications
Application | Networking, Storage and Data Center |
Cabinet Package Type | Server, AC Ready |
Color | Black |
Color | Jet Black |
Color Code | RAL 9005 |
Depth | 999 mm |
Depth | 39.32 |
Depth | 999 |
Finish | Powder Coated |
Finish | Powder Coating;Steel/Black |
Height | 2,082 mm |
Height | 81.98 |
Height | 2,082 |
Hole Type | Square |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Nema Rating | Type 12 |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Product Family | ProLine |
Protection Rating | NEMA Type 12 |
Rack Angle | PRA1920THL1 |
Rack Units | 42 |
Series | ProLine V/D |
Size | 2000x600x1000mm |
Style | Server Cabinet, AC-Ready |
Thickness | 1.9 mm |
Thickness | 14 |
Thickness | 1.9 |
Type | Data Networking Freestanding Cabinets |
Weight | 375 lb |
Width | 609 mm |
Width | 23.99 |
Width | 609 |
