Contact for Pricing

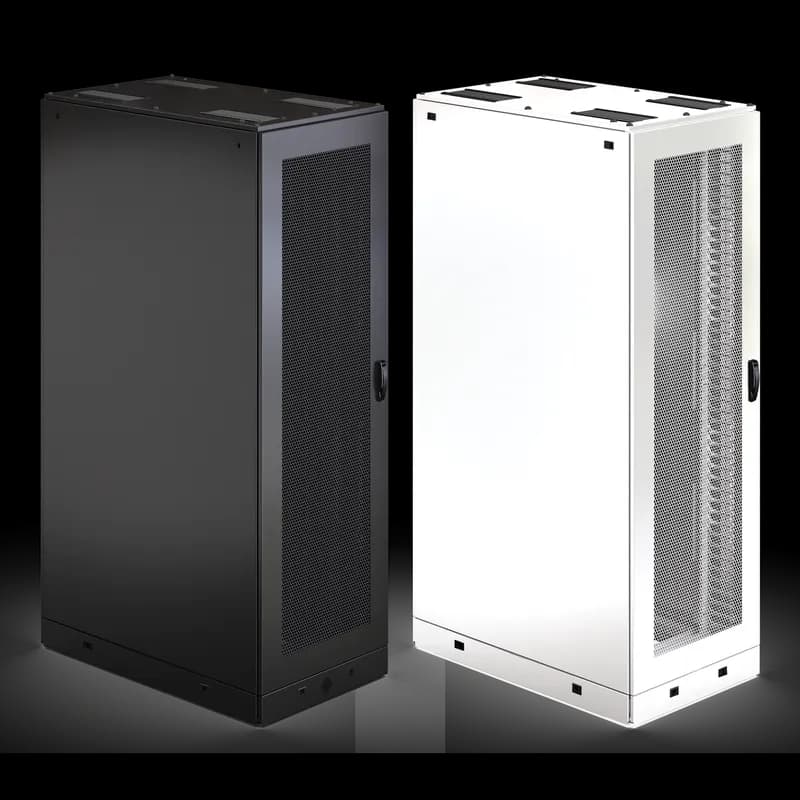

Overview
- All doors have toolless hinges that allow the doors to easily be removed or reversed in the field
- All doors have ergonomic opening, keylocking handles
- Easy-to-remove side panels with keylocking latch
- Front and rear doors are fully perforated to allow for maximum air flow
- Top accepts additional cooling fans (2 x 6-in. fans) with integral finger guard prefabricated in place
- Top has sliding gland plate to accommodate large cable egress capacity
- Combination foot and adjustable leveler in each cabinet corner
- Open base for easy cable entrance
- Rack angles are fully adjustable front to rear, easily converting between tapped or square configurations
- Rack angles able to mount off-centered on 700 and 800mm wide models
Specifications
Application | Datacom and Telecom Equipment;Networking, Storage and Data Center |
Cabinet Type | Server |
Cable Entry | Yes |
Color | Jet Black |
Color | Black |
Color Code | RAL 9005 |
Depth | 1,098 mm |
Depth | 43.22 |
Depth | 1,098 |
Finish | Powder Coated |
Finish | Powder Coating |
Frame | Yes |
Height | 2,163 mm |
Height | 85.14 |
Height | 2,163 |
Material | Steel |
Material | Mild Steel |
Mounting | Floor Stand |
Mounting Type | Rack-Mount |
NEMA Rating | NEMA Type 1 |
Nema Rating | Type 12 |
NEMA Rating | 1 |
Product Family | ProLine S1 |
Protection Rating | NEMA Type 1 |
Rack Angle | PS1RA216 |
Rack Spacing | 19-in. |
Rack Units | 45 |
Rack Width | 19 in |
Series | ProLine S1 |
Size | 2150x600x1100mm |
Thickness | 16 Gauge |
Thickness | 1.52 mm |
Thickness | 16 |
Thickness | 1.52 |
Type | Data Networking Freestanding Cabinets |
Weight | 331.1 lb |
Width | 606 mm |
Width | 23.87 |
Width | 606 |
Package Dimensions (L x W x H) | 54 IN x 30.5 IN x 96 IN |
Package Dimensions (L x W x H) | 137.16 cm x 77.47 cm x 243.84 cm |
Package Weight (Imperial) | 396.000 L |
Package Weight (Metric) | 179.626 kg |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
How to Install the PS1SW21611B Server Cabinet
This guide provides step-by-step instructions for installing the PS1SW21611B server cabinet, including mounting, wiring, and initial setup.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Cable ties, Grounding wires
- Mount the cabinet
Secure the PS1SW21611B cabinet to the designated location using the provided mounting screws. Ensure the cabinet is level and stable.
- Connect the grounding wires
Attach the grounding wires to the bonding and grounding studs located on the cabinet. Ensure a secure connection to prevent electrical hazards.
- Install the rack angles
Insert the rack angles into the cabinet at the desired height. Use the appropriate screws to secure them in place, ensuring they are aligned with the rack unit markings.
- Wire the cabinet
Route the power and data cables through the cable management openings. Use cable ties to secure the cables and maintain a tidy installation.
- Verify connections
Use a multimeter to check all electrical connections for continuity and proper voltage. Ensure that all devices are correctly powered.
- Calibrate the cabinet
Adjust any internal components as necessary to ensure optimal airflow and equipment placement. Follow manufacturer specifications for calibration.
