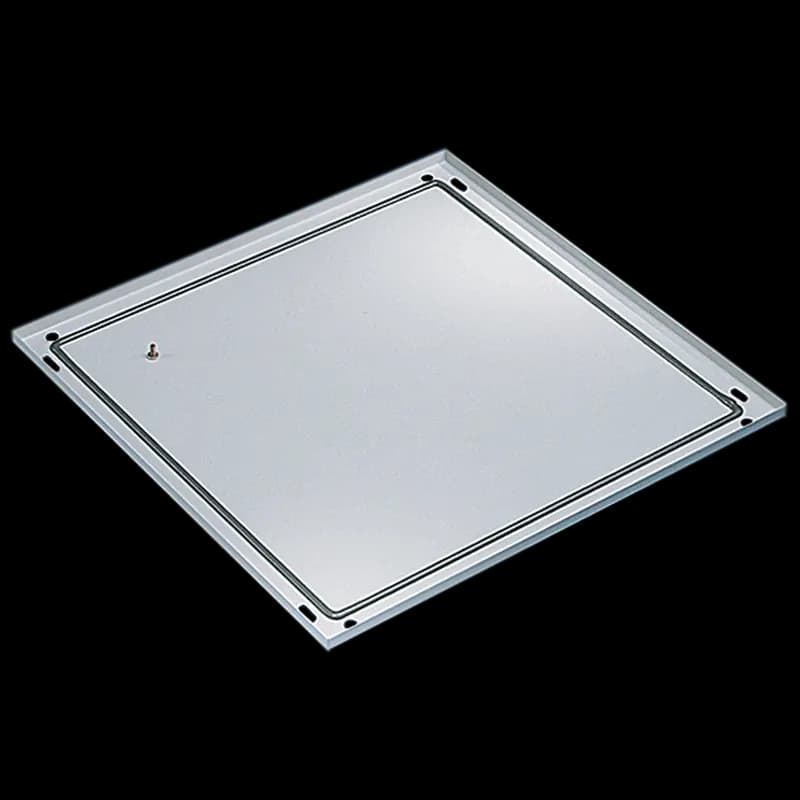

nVent PPTHP66 - ProLine Top with Cutout for High-Performance Pagoda Exhaust Vent, fits 600x600mm, Painted
nVent

PPTHP66

UPC: 783510241896

Contact for Pricing

Overview

The nVent ProLine Top with Cutout (SKU: PPTHP66) is a high-performance pagoda exhaust vent cover designed for 600x600mm frames, engineered to deliver superior airflow management in demanding industrial and commercial environments. Manufactured by nVent, a global leader in thermal management and electrical solutions, this top cover is part of the ProLine series, renowned for its durability, precision engineering, and compatibility with standard frames. The single-bay configuration features a strategically placed cutout that seamlessly integrates with one high-performance pagoda vent, while the double-bay option offers flexible orientation for left-bay or right-bay ventilation, ensuring adaptability to diverse installation requirements. Engineered for high-efficiency thermal regulation, the nVent ProLine Top Cover is ideal for applications where heat dissipation and airflow optimization are critical. Common use cases include data centers, telecommunications facilities, industrial control rooms, and commercial HVAC systems, where maintaining optimal operating temperatures is essential for equipment longevity and performance. The EMC (Electromagnetic Compatibility) finish, featuring paint over plated surfaces, provides enhanced corrosion resistance and a professional appearance, making it suitable for both functional and aesthetic applications. Installation is straightforward, with pre-furnished bolts included to secure the top cover in position, ensuring a stable and vibration-resistant fit. The design prioritizes ease of assembly, reducing downtime during deployment or maintenance cycles. nVent’s commitment to quality is evident in the robust construction of the ProLine series, which undergoes rigorous testing to meet industry standards for durability and reliability. Whether retrofitting existing systems or outfitting new installations, professionals trust nVent for solutions that deliver long-term performance and operational efficiency. Key features of the nVent ProLine Top with Cutout (PPTHP66) include: - **Precision cutout compatibility**: Designed to accept high-performance pagoda vents, ensuring optimal airflow alignment with the exhaust system. - **Versatile bay configurations**: Single-bay tops support one vent, while double-bay tops offer flexible left or right orientation for custom ventilation setups. - **Durable EMC finish**: Paint over plated surfaces enhances corrosion resistance and provides a polished, professional look. - **Pre-furnished bolts**: Includes all necessary hardware for secure and stable installation, minimizing assembly time. - **Industry-standard sizing**: Fits 600x600mm frames, a common dimension in data centers, control rooms, and HVAC systems. For engineers, contractors, and facility managers seeking a reliable, high-performance exhaust vent cover, the nVent ProLine Top with Cutout (PPTHP66) delivers unmatched compatibility, durability, and thermal management capabilities. Trusted by industry professionals worldwide, nVent’s ProLine series continues to set the benchmark for thermal and ventilation solutions in critical infrastructure applications.
  • Top is gasketed and include ground studs.
  • Lifting eyes can be used in place of bolts
  • EMC finish with paint over plated surfaces for corrosion resistance
  • Pre-furnished bolts included for secure installation
  • Ideal for data centers, control rooms, and HVAC systems

Specifications

Application
Power Distribution; Controls and Drives
Color
Light Gray
Color
Painted
Color Code
RAL 7035
Finish
Powder Coated
Fits Frame Top
600 x 600 mm
IP Rating
IP55
Material
Mild Steel
Material
Paint over plated surfaces
Modification Services
Yes
Product Family
ProLine
Series
ProLine Top
Size
fits 600x600mm
Size
600x600mm
Thickness
16 ga
Thickness
1.52 mm
Type
External Mounting for ProLine Industrial Enclosures
Weight
11.72 lb
Package Dimensions (L x W x H)
26 IN x 24.25 IN x 3 IN
Package Dimensions (L x W x H)
66.04 cm x 61.595 cm x 7.62 cm
Package Weight (Imperial)
11.720 L
Package Weight (Metric)
5.316 kg
