Overview

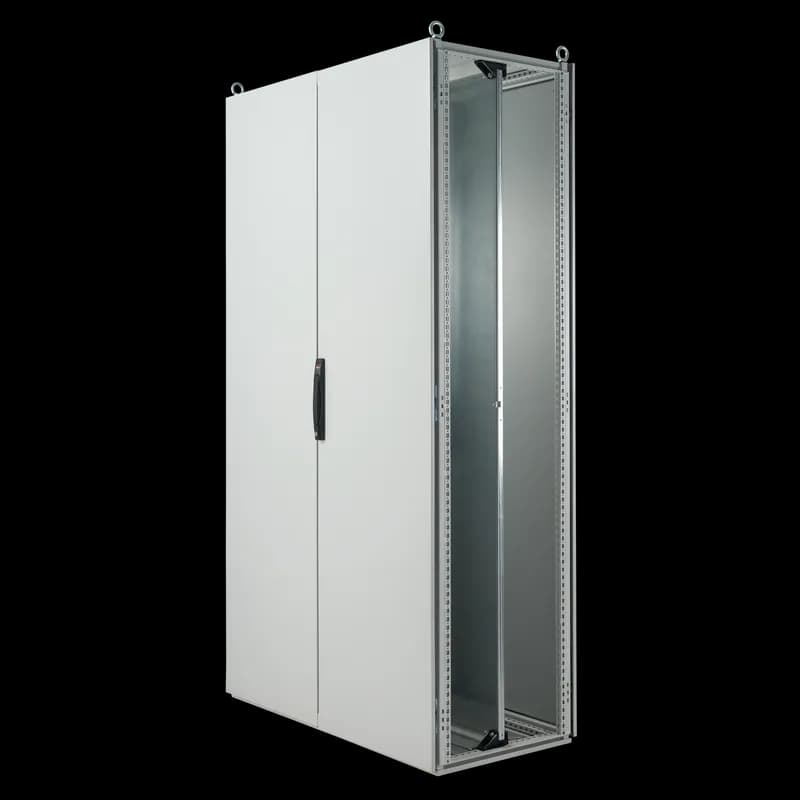

- Complete, ready-to-use industrial enclosure solution with a single part number
- Durable steel construction with a light gray finish for robust protection
- Type 12 rating ensures protection against dust, dirt, and water ingress
- Includes frame, solid door with lock, rear cover, subpanel, gland plate, and lifting eyes
- Ideal for control panels, automation, and power distribution in industrial settings
- Galvanized mounting plates
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
Specifications
Application | Controls and Drives; Power Distribution |
Color | Light Gray |
Color | Lt Gray |
Color Code | RAL 7035 |
Depth | 15.75 |
Depth | 400 |
Finish | Powder Coated |
Height | 70.87 |
Height | 1,800 |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
NEMA Rating | 12 Indoor, dust-resistant |
Nema Rating | Type 12 |
Product Family | ProLine |
Protection Rating | NEMA Type 12 |
Series | ProLine Industrial Packages |
Size | 1800x1200x400 |
Size | 1800x1200x400mm |
Type | Overlapping Double Doors |
Weight | 410 lb |
Width | 47.24 |
Width | 1,200 |
Package Dimensions (L x W x H) | 54 IN x 26 IN x 76 IN |
Package Dimensions (L x W x H) | 137.16 cm x 66.04 cm x 193.04 cm |
Package Weight (Imperial) | 410.000 L |
Package Weight (Metric) | 185.976 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the PF1885 Enclosure
This guide provides step-by-step instructions for safely installing the PF1885 enclosure, ensuring proper handling and setup.
Estimated time: 1h
Tools needed:
Forklift, Screwdriver, Multimeter
Supplies needed:
3000 lb-rated chain or strap, Mounting screws
- Prepare the installation area
Clear the installation route of all obstructions and ensure that workers are positioned at a safe distance from the enclosure's height.
- Secure the enclosure for transport
Using a forklift, insert a 3000 lb-rated chain or strap through the eye bolts on top of the enclosure and securely fasten it to the forklift mast to prevent tipping during transport.
- Lift and position the enclosure
Carefully lift the enclosure with the forklift, ensuring it is clear of the ground. Position it at the designated installation site, maintaining caution to avoid contact with fixed objects.
- Mount the enclosure
Secure the enclosure to the mounting surface using the provided mounting screws, ensuring it is level and firmly attached.
- Verify installation
Check that the enclosure is stable and securely mounted. Use a multimeter to verify any electrical connections if applicable.
