Contact for Pricing
Overview
- Ground stud and mounting hardware are included
- Optional tamper-resistant screws are available
- Secured with semi-flush cover screws along right and left edges
- Compatible with ProLine Frame Shelf or ProLine Grid Straps for HMI mounting
- Includes ground stud and mounting hardware for easy installation
Specifications
Application | Controls and Drives |
Color | Light Gray |
Color | LtGray |
Color Code | RAL 7035 |
Cover Size | 26.75 x 23.51 in |
Cover Size | 679 x 597 mm |
Depth | 0.87 in |
Depth | 22 mm |
Finish | Powder Coated |
Height | 680 mm |
Height | 26.78 in |
Height | 26.85 |
Height | 682 |
Ip Rating | IP66/IP67 |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Semi-flush cover screws |
Product Family | ProLine |

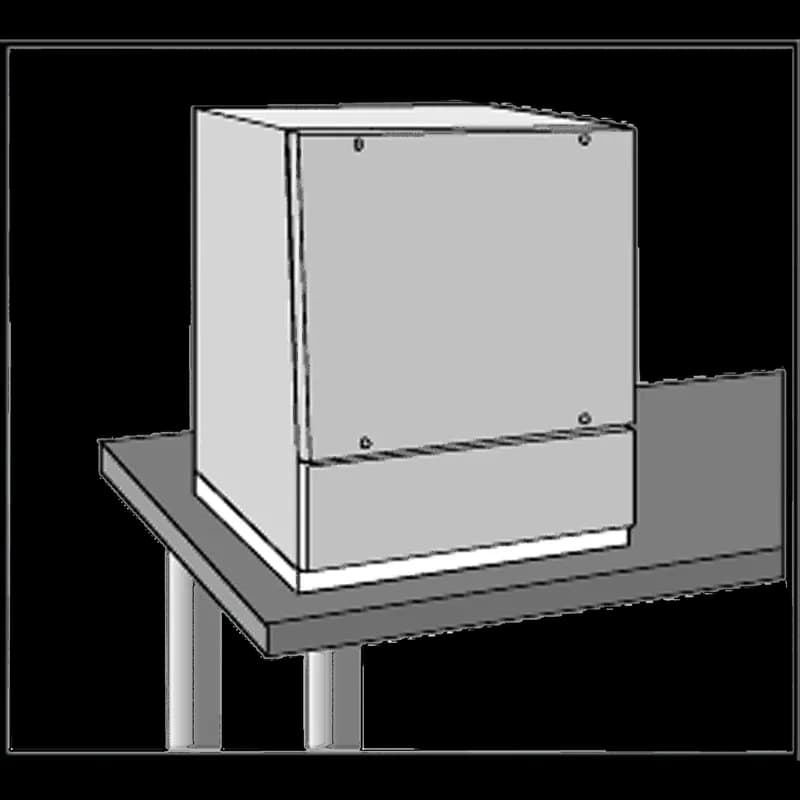

Series | ProLine Sloped-Front HMI |
Size | 500x600mm |
Size | fits 682x600mm |
Thickness | 16 ga |
Thickness | 1.52 mm |
Type | Other Accessories |
Type | HMI Enclosure Systems |
Weight | 17 lb |
Width | 23.51 in |
Width | 597 mm |
Width | 23.62 in |
Width | 600 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 27.5 IN x 27.5 IN x 1.25 IN |
Package Dimensions (L x W x H) | 69.85 cm x 69.85 cm x 3.175 cm |
Package Weight (Imperial) | 17.000 L |
Package Weight (Metric) | 7.711 kg |
How to Install the PCS5A6R Controller
This guide provides step-by-step instructions for installing and configuring the PCS5A6R Controller, ensuring proper wiring and initial setup.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Drill, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Self-tapping screws
- Mount the controller
Secure the PCS5A6R controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect the wiring
Use terminal connectors to connect the power supply and input/output wires to the designated terminals on the controller. Ensure all connections are tight and secure.
- Verify the installation
Use a multimeter to check the voltage at the power terminals to ensure proper power supply. Confirm that all connections are correct before powering on the controller.
