Contact for Pricing
Overview
- Ground stud and mounting hardware are included
- Optional tamper-resistant screws are available
- Seamless foam-in-place gasket ensures watertight and dust-tight seal.

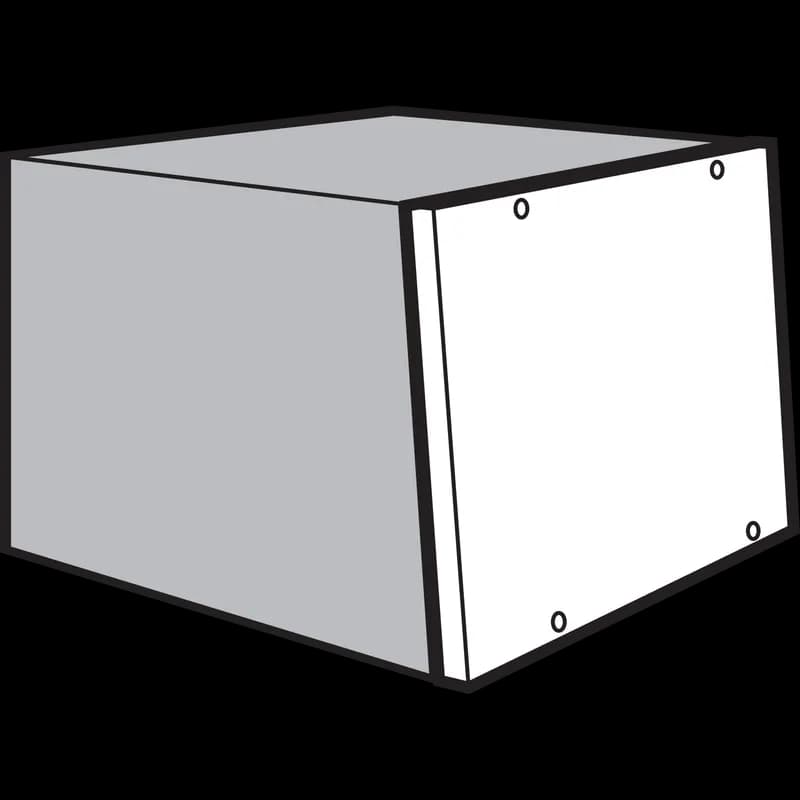

- Designed for 500x800mm nVent ProLine Sloped-Front HMI enclosures.
- Includes ground stud and mounting hardware for easy installation.
Specifications
Application | Controls and Drives |
Color | Light Gray |
Color | LtGray |
Color Code | RAL 7035 |
Cover Size | 19.93 x 31.17 in |
Cover Size | 506 x 792 mm |
Depth | 0.87 |
Depth | 22 |
Finish | Powder Coated |
Height | 506 mm |
Height | 19.94 in |
Height | 19.93 |
Height | 506 |
Ip Rating | IP66/IP67 |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Semi-Flush |
Mounting Type | Semi-flush cover screws along top and bottom edges |
Nema Rating | Type 4X |
Product Family | ProLine |
Series | ProLine Sloped-Front HMI |
Size | fits 507/682x800mm |
Size | 500x800mm |
Thickness | 16 ga |
Thickness | 1.52 mm |
Type | Other Accessories |
Type | HMI Enclosure Systems |
Weight | 13.74 lb |
Width | 31.17 |
Width | 792 |
Width | 792 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 33.5 IN x 22 IN x 1.25 IN |
Package Dimensions (L x W x H) | 85.09 cm x 55.88 cm x 3.175 cm |
Package Weight (Imperial) | 13.740 L |
Package Weight (Metric) | 6.233 kg |
