Overview
- NEMA Type 12 rated for dust, dirt, and non-corrosive liquid protection

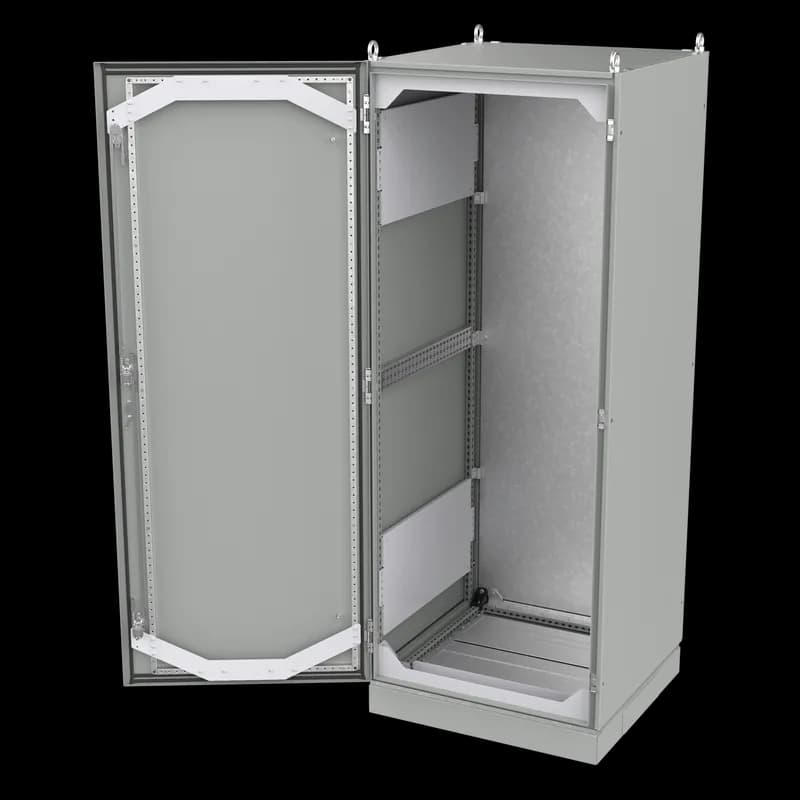

- Complete package includes frame, door with lock, top, rear cover, subpanel, gland plate & lifting eyes
- 2000x800x800 mm dimensions for large control panels or automation systems
- Light gray powder-coated steel construction for durability and corrosion resistance
- Modular design supports baying/joining with optional side covers for scalability
- Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
- 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
- Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
- Two grounding studs present on each door
- Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
Specifications
Application | Power Distribution; Controls and Drives |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 31.69 |
Depth | 805 |
Door Quantity | 2 |
Finish | Powder Coated |
Height | 78.82 |
Height | 2,002 |
Material | Mild Steel |
Material | Steel |
Max Rack Mount Unit | 42 |
Max Subpanel Size | 75.0 x 28.7 in |
Nema Rating | Type 12 |
Product Family | ProLine |
Series | ProLine G2 |
Size | 2000x800x800 mm |
Type | Mild Steel Modular Industrial Enclosures |
Width | 31.8 |
Width | 808 |
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN20DA
1/2 Inch, 90 Degree, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
Frequently Asked Questions
What is the load rating of the ProLine G2 frame?
The ProLine G2 frame has a 15% higher load rating than the competition.
What are the available frame dimensions?
Frame heights range from 600 mm to 2200 mm, with various widths and depths available.
What materials are used in the ProLine G2 frame?
The frame is made of 12 gauge (2.5 mm) roll-formed steel with fully welded solid steel corner blocks.
What types of applications does ProLine G2 support?
ProLine G2 is designed for industrial environments and can accommodate Type 3R and Seismic applications.
What accessories are available for cable management?
Cable management accessories include cable entry cabinets, tie-down brackets, and wire management rails.
What types of doors are available for the enclosure?
Available door types include solid doors, window doors, perforated doors, and overlapping double doors.
What is the maximum weight capacity for the subpanel?
The subpanel can hold greater than 45% more weight than previous models.
What safety features are included with ProLine G2?
Safety features include mechanical and electrical interlocks, disconnect doors, and barrier panels.
What is the purpose of the EMC options?
EMC options are designed to maintain electromagnetic compatibility for sensitive electronic equipment.
What is the maximum load capacity for casters?
Casters can support a maximum load of 1000 lb (453.6 kg) when installed properly.
