nVent
MCS22088PER5
UPC: 783510496951
Contact for Pricing
Overview

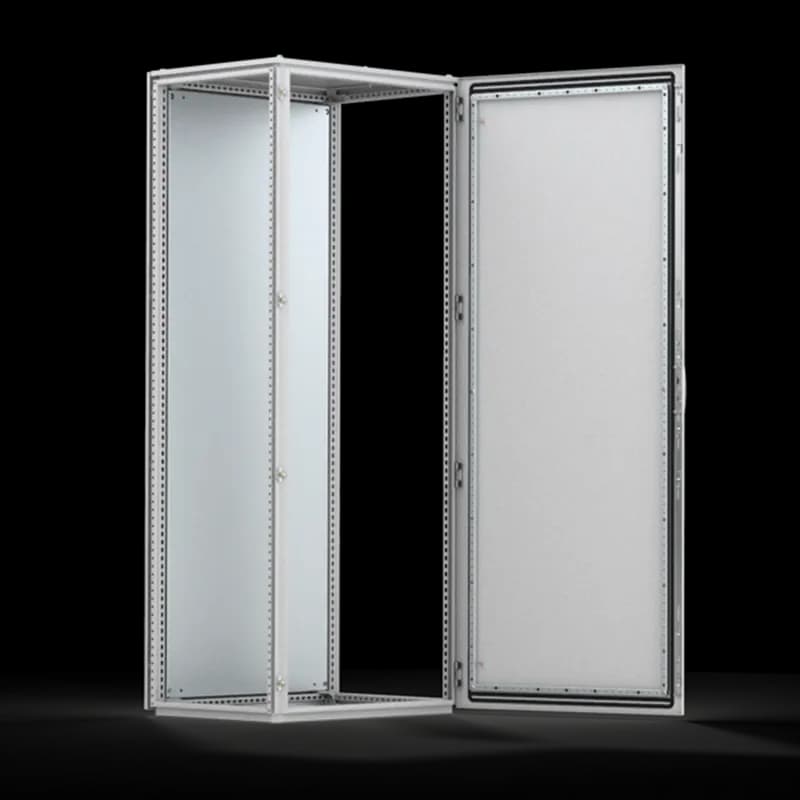

- Modular Single Door Enclosure
- Dimensions: 2200x800x800mm
- Material: Mild Steel
- Color: Light Gray
- Floor-standing design
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three or four (D>600) pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Specifications
Body Thickness | 16 ga |
Cable Enclosures Included | No |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color Code | RAL 7035 |
Depth | 800 mm |
Depth | 31.5 in |
Door Thickness | 14 ga |
Finish | Powder Coating |
Height | 86.61 in |
Height | 2,200 mm |
IP Rating | IP55 |
Material | Mild Steel |
Mounting Plate Included | No |
Protection Rating | NEMA Type 12 |
Rear Door Included | No |
Rear Panel Included | Yes |
Series | MCS |
Size | 2200x800x800mm |
Type | Mild Steel Modular Industrial Enclosures |
Weight | 233.69 lb |
Weight | 32 lbs./100ft |
Width | 31.5 in |
Width | 800 mm |
Package Dimensions (L x W x H) | 86.99 IN x 31.87 IN x 32.12 IN |
Package Dimensions (L x W x H) | 220.9546 cm x 80.9498 cm x 81.5848 cm |
Package Weight (Imperial) | 273.800 L |
Package Weight (Metric) | 124.196 kg |
