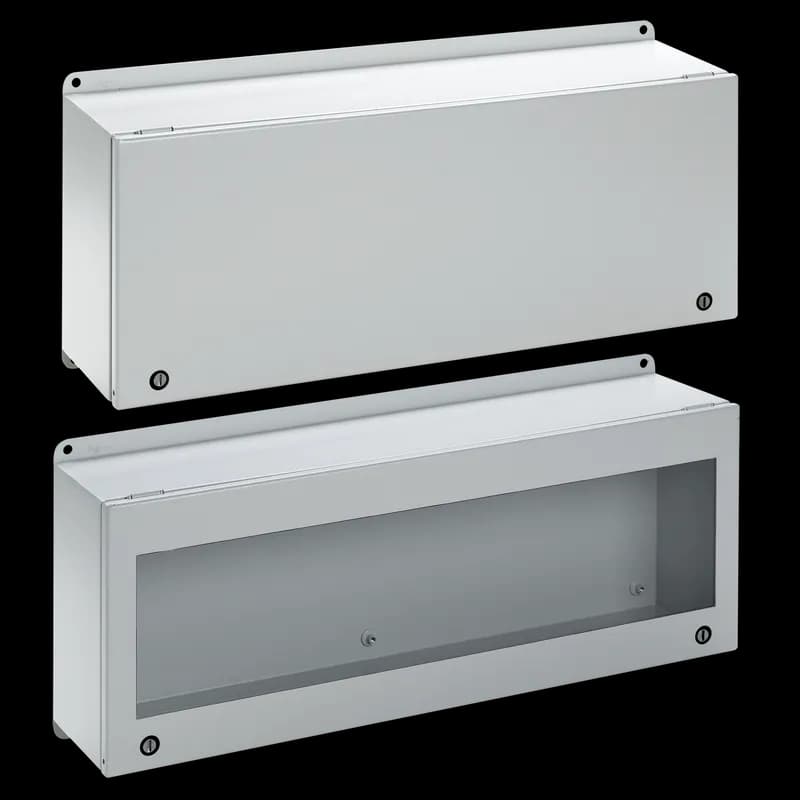

Overview
- Metric dimensions
- 16 gauge steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
Specifications
Application | Controls and Drives |
Color | Gray;LtGray |
Color | Light Gray |
Color Code | RAL 7035 |
Conductive Panel | LP3530G |
Depth | 13 IN |
Depth | 7.87 in |
Depth, Maximum | 7.87 |
Depth, Minimum | 7.87 |
Finish | Powder Coated |
Height | 13.78 in |
Height | 44 IN |
IP Rating | IP66 |
Material | Mild Steel |
Material | Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting | Wall Mounting Brackets Available |
Mounting | 13.05 x 9.27 in |
NEMA Rating | 4 |
Nema Rating | Type 4 |
Panel | LP3530 |
Panel Size | 13.03 x 11.06 in |
Panel Size | 72.00 x 72.00 in |
Product Family | InLine |
Protection Rating | NEMA Type 12 |
Series | InLine |
Size | 350x300x200mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Type | Mild Steel Wall Mounted Industrial Enclosures |
Type Number | Type 4 |
Weight | 13.2 lb |
Width | 11.81 in |
Width | 300 mm |
Package Dimensions (L x W x H) | 14.3 IN x 12.8 IN x 8.6 IN |
Package Dimensions (L x W x H) | 36.322 cm x 32.512 cm x 21.844 cm |
Package Weight (Imperial) | 13.200 L |
Package Weight (Metric) | 5.988 kg |
How to Install the LSC353020 Controller
This guide provides step-by-step instructions for installing and configuring the LSC353020 Controller on a DIN rail.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the controller
Secure the LSC353020 controller to the DIN rail using the integrated clips. Ensure the controller is level and firmly attached.
- Connect the power supply
Using terminal connectors, connect the power supply wires to the designated input terminals on the controller. Ensure correct polarity to avoid damage.
- Verify connections
Use a multimeter to check the voltage at the input terminals. Confirm that the voltage matches the specifications outlined in the controller's manual.
- Configure the controller settings
Access the controller's configuration interface and input the necessary parameters such as operational modes and communication settings.
- Calibrate the controller
Follow the calibration procedure in the manual to ensure the controller operates accurately. This may include setting reference points and adjusting sensitivity.
