Contact for Pricing

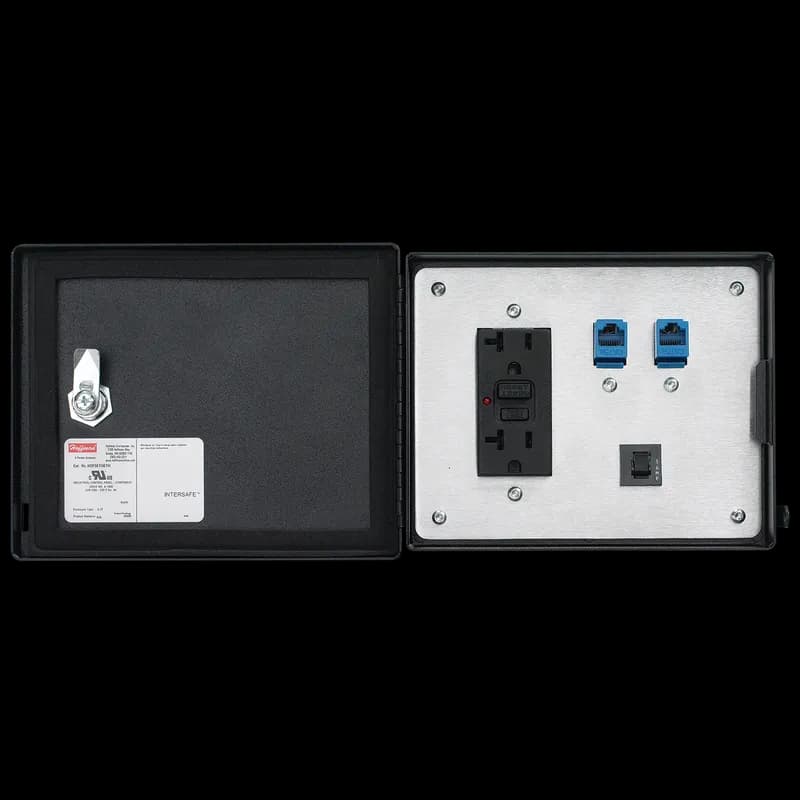

Overview
- Steel and Stainless Steel doors are welded and ground
- Back plate is aluminum
- All standard configurations include a GFCI or standard duplex receptacle with a 5-A circuit breaker for added safety
- Door gasket (between the door and plate assemblies) and plate gasket (between the plate assembly and the enclosure) together provide a tight seal
- Template provided for accurate enclosure cutout dimensions
- Quarter-turn latch with screwdriver slot and padlock hasp on all steel and stainless steel door models for convenience and security
- Quarter-turn latch with screwdriver slot on polycarbonate models
Specifications
Accessory Type | InterSafe Data Interface Ports |
Application | Arc Flash Safety;Controls and Drives;Corrosive Environments |
Application | Controls and Drives; Corrosive Environments; Arc Flash Safety |
Color | Unpainted |
Color | Polycarbonate |
Configuration | 120 VAC Duplex Receptacle |
Configuration | - 120 VAC duplex receptacle - USB Type A - USB Type A - 5-amp circuit breaker |
Configuration 1 | USB Type A |
Configuration 2 | USB Type A |
Finish | Smooth Matte |
IP Rating | IP66 |
Ip Rating | IP66/IP67 |
Ip Rating | IP4/4X/12 |
Material | Composite;Polycarbonate |
Material | Polycarbonate |
Modification Services | Yes |
Nema Rating | Type 4/4X/12 |
Nema Rating | Type 4X |
Primary Connector Termination | USB Type A - 10-ft. cable with female USB Type B connector |
Product Family | InterSafe |
Protection Rating | NEMA Type 12 |
Secondary Connector Termination | USB Type A - 10-ft. cable with female USB Type B connector |
Series | InterSafe |
Size | 10-ft |
Size | 10 ft |
Size | 143x176x24mm |
Supports Devices Sold By | Computer peripherals |
Thickness | 1.5 mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Type | Electrical Accessories |
Type Number | Type 4X |
Weight | 3 lb |
Works With | NEMA / IEC |
Package Dimensions (L x W x H) | 9.1 IN x 9.1 IN x 7.2 IN |
Package Dimensions (L x W x H) | 23.114 cm x 23.114 cm x 18.288 cm |
Package Weight (Imperial) | 3.000 L |
Package Weight (Metric) | 1.361 kg |
