Contact for Pricing

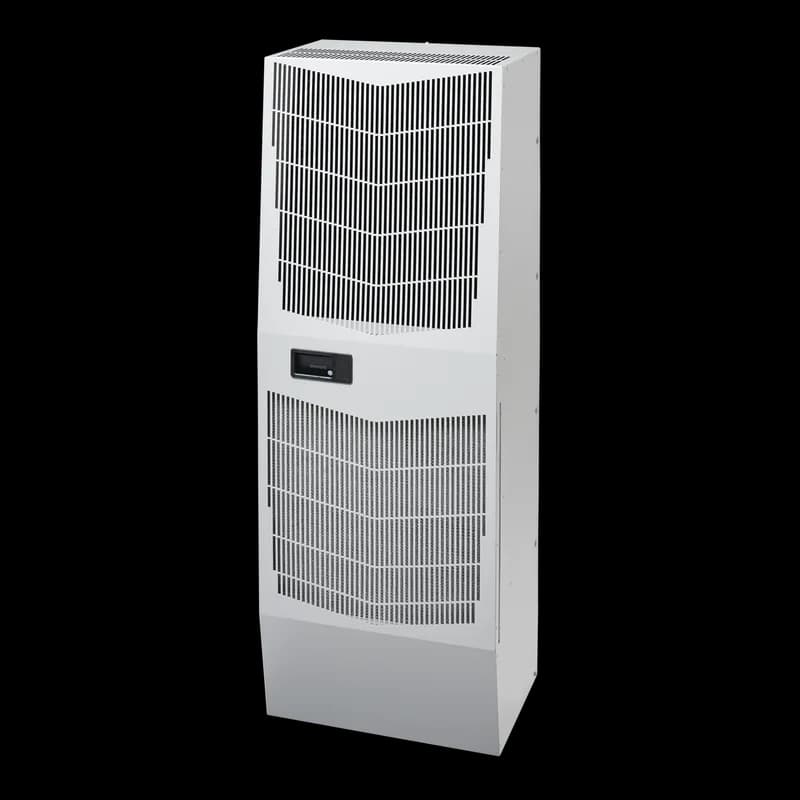

Overview
- Attractive industrial design with minimal use of visible fasteners
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
Specifications
Ambient Temperature | -40-131 °F |
Ambient Temperature | 40 Deg C |
Application | Power Distribution; Controls and Drives; Corrosive Environments |
Application | Controls and Drives;Corrosive Environments;Power Distribution |
Btu Rating | 20,000 |
Color | Unpainted |
Corrosion Resistant | Yes |
Depth | 15.28 in |
Depth | 388 mm |
Finish | Brushed #4 |
Frequency Rating | 50/60 Hz |
Frequency Rating, Maximum | 60 Hz |
Frequency Rating, Minimum | 50 Hz |
Height | 1,465 mm |
Height | 57.69 in |
Material | Stainless Steel 316L |
Max Current | 6.8 A |
Mounting | Side wall |
NEMA Rating | 4X Watertight, corrosion-resistant |
Nominal Capacity Btu/h | 20,000 Btu/h |
Nominal Capacity Watts | 5,861 W |
Nominal Voltage | 460 V |
Number Of Phases | 1 |
Number Of Phases | 3 |
Operating Temperature | -40-131 |
Operating Temperature | -40-55 |
Operating Temperature | -40-55 °C |
Outdoor Installation | Yes |
Phase | 3 Ph |
Phase | 3 |
Product Family | SpectraCool |
Protection Rating | NEMA Type 4X |
Refrigerant | R407C |
Remote Access Control | No |
Thickness | 51.40mm (2.024") |
Thickness | 18 ga |
Thickness | 1.21 mm |
Type | Air Conditioners |
Voltage AC | 400-460 V |
Voltage Rating | 400/460 V |
Weight | 89 kg |
Weight | 240 lb |
Width | 530 mm |
Width | 20.87 in |
Package Dimensions (L x W x H) | 26.25 IN x 19 IN x 62.5 IN |
Package Dimensions (L x W x H) | 66.675 cm x 48.26 cm x 158.75 cm |
Package Weight (Imperial) | 240.000 L |
Package Weight (Metric) | 108.864 kg |
How to Install the G572046G102 Air Conditioner
This guide provides step-by-step instructions for installing and configuring the G572046G102 air conditioner, ensuring proper functionality and safety.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Ratchet driver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Mounting gasket kit, Electrical wire, Thermostat (if required)
- Inspect the air conditioner
Check the air conditioner for any visible damage and verify its functionality before proceeding with the installation.
- Install mounting gaskets
Using the mounting gasket kit provided, attach the gaskets to the air conditioner to ensure a watertight seal.
- Mount the air conditioner
Securely mount the air conditioner onto the enclosure, ensuring not to damage the mounting gasket. Avoid dragging the unit to prevent tearing the gasket.
- Connect electrical wiring
Refer to the nameplate for electrical requirements and wire the unit to a properly grounded power supply. Ensure the circuit is fused with a slow blow or HACR circuit breaker.
- Verify phase monitor
For 3-phase units, after applying power, check that the phase monitor light is illuminated to confirm correct electrical phasing.
- Wire the thermostat
If required, connect the thermostat outputs to the appropriate terminals on the 24 VAC terminal strip according to the wiring diagram.
- Set thermostat
Adjust the thermostat to the desired cabinet temperature, following the Sequence of Operation for guidance.
- Allow unit to stabilize
Keep the air conditioner upright for at least five minutes before starting it to ensure proper operation.
