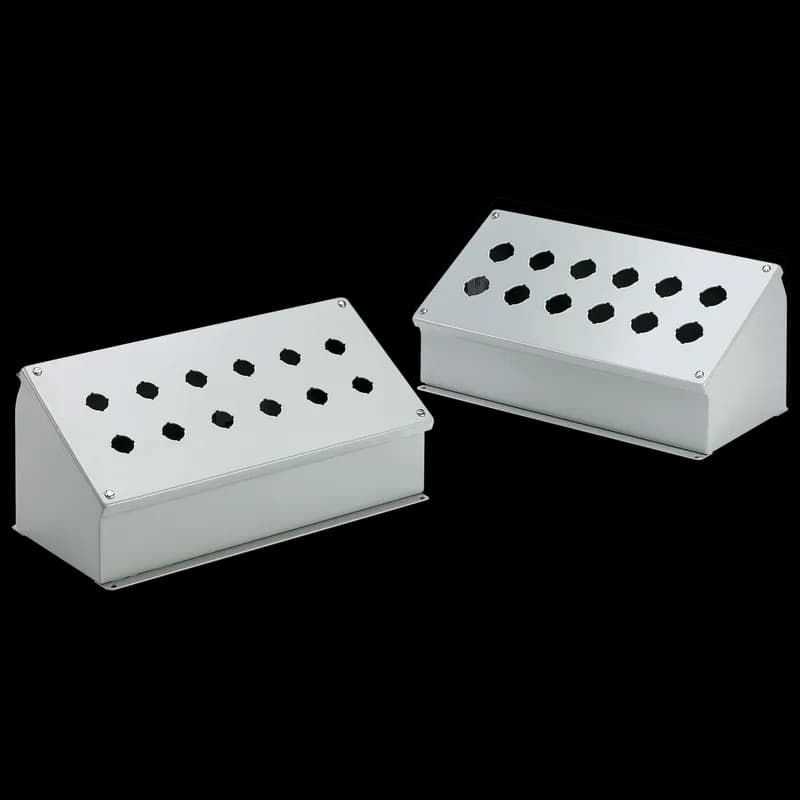

Overview
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Grounding stud on body
- Bonding provision on cover
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
- 30.5-mm or 22.5-mm size holes
Specifications
Application | Controls and Drives |
Color | Gray |
Color Code | ANSI 61 |
Depth | 4.88 |
Depth | 124 |
Depth | 13 IN |
Finish | Powder Coated |
Height | 44 IN |
Height | 3.5 IN |
Hole Quantity | 2 |
Hole Size | 1.2-1.2 in |
Hole Size | 30.5 mm mm |
Hole Size | 14.3-14.3 |
IP Rating | IP65 |
Material | Mild Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting | 4.03 x 4.62 in |
Mounting | Wall Mounting Brackets Available |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Number Of Holes | 2 |
Overall Dimensions | 114 x 88 mm |
Overall Dimensions | 4.53 x 5.72 in |
Product Family | PushButton |
Protection Rating | NEMA Type 12 |
Size | 2PB x 30.5mm |
Thickness | 14 ga |
Thickness | 1.9 mm |
Thickness | 51.40mm (2.024") |
Type | Mild Steel Industrial Terminal and Junction Boxes |
Type | Mild Steel Terminal and Junction Boxes |
Type Number | Type 13 |
Weight | 2.9 lb |
Width | 5.5 IN |
Width | 23 IN |
Package Dimensions (L x W x H) | 5.5 IN x 4.5 IN x 5.25 IN |
Package Dimensions (L x W x H) | 13.97 cm x 11.43 cm x 13.335 cm |
Package Weight (Imperial) | 2.900 L |
Package Weight (Metric) | 1.315 kg |
