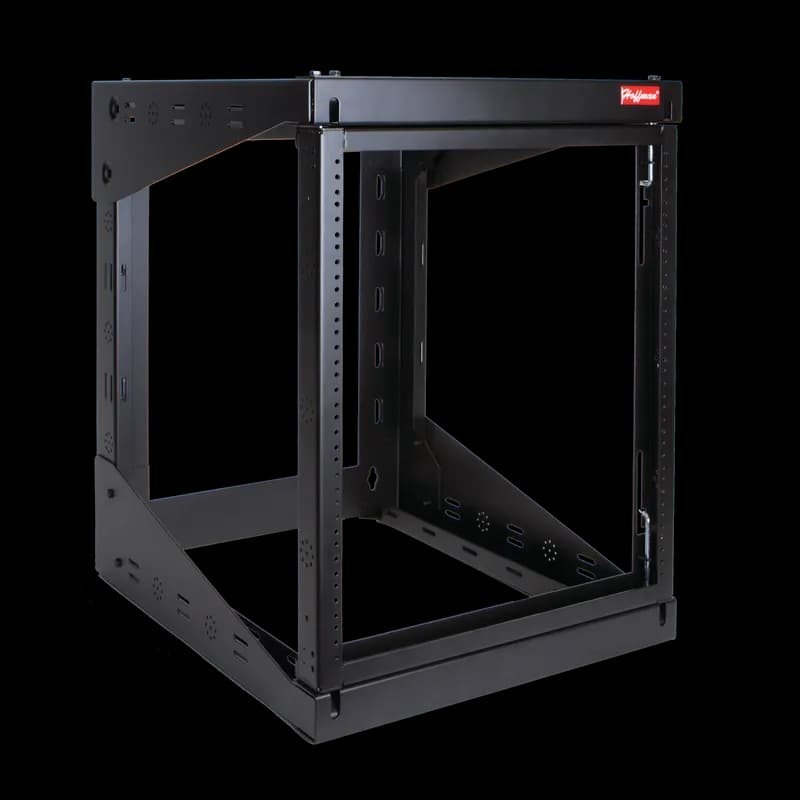

Overview
- Designed to accommodate all standard 19-inch rack equipment
- Easy, single-tool assembly reduces installation time and cost
- Spring-load pivot pins provide for either left or right hinging; pins can be arranged in unlocked or locked position
- Preassembled for fast, time-saving installation
- Temporary mounting bracket allows for rapid, single-person wall installation
- UL double lug ground holes provide easy adherence to local bonding and grounding codes
- Cable tie down points, sized for up to 1-inch Velcro® straps, provided in horizontal and vertical positions in multiple locations
- Standard 12- or 24-inch deep offering to accommodate various applications
- Open design provides for maximum access to cables and equipment
- Smart packaging with hand-carrying holes allows for easy transportation
Specifications
Application | Networking, Storage and Data Center |
Color | Black |
Color | Jet Black |
Color Code | RAL 9005 |
Depth | 617 mm |
Depth | 24.291 in |
Depth | 24.29 |
Depth | 617 |
Finish | Powder Coated |
Finish | Black |
Height | 1,285 mm |
Height | 50.59 |
Height | 1,285 |
Load Rating | 45 kg |
Load Rating | 100 lb |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | Wall-mount |
Mounting Type | Wall-Mount Open Frame Rack |
Product Family | VersaRack |
Rack Units | 25 |
Series | VersaRack |
Size | 50.59x20.91x24.29 inches (HxWxD) |
Size | 50.59x20.91x24.29 |
Thickness | 12 |
Thickness | 2.66 |
Thickness | 2.66 mm |
Type | Open Frame Racks |
Vertical Cable Manager Accessory | E19C25U |
Weight | 78 lb |
Width | 20.91 |
Width | 531 |
Width | 531 mm |
Package Dimensions (L x W x H) | 56.25 IN x 15 IN x 26.25 IN |
Package Dimensions (L x W x H) | 142.875 cm x 38.1 cm x 66.675 cm |
Package Weight (Imperial) | 78.000 L |
Package Weight (Metric) | 35.381 kg |
