Contact for Pricing
Overview

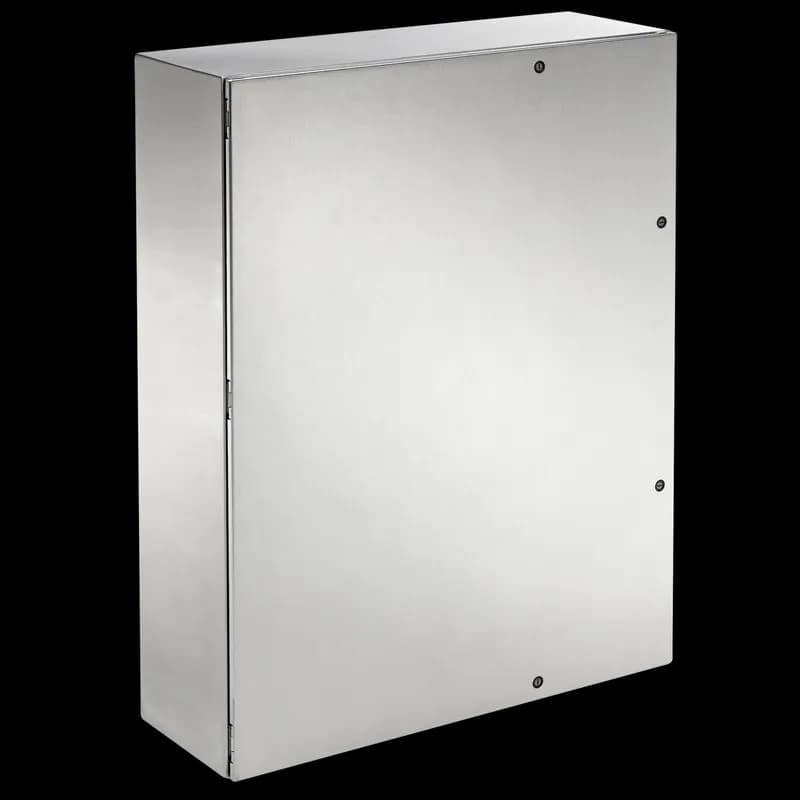

- Constructed from high-grade 304 stainless steel for superior corrosion resistance.
- Dimensions: 48x36x16 inches, providing ample space for control systems and instrumentation.
- Features a secure 1/4-turn latch mechanism for easy access and a tight seal.
- Type 4X rated for robust protection against dust, water, and environmental contaminants.
- Brushed stainless steel finish offers a professional aesthetic and resists fingerprints.
- Integral door alignment device to properly align door and gasket to body offset
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Doors are interchangeable and easily removed by pulling clip-style hinge pins
Specifications
Application | Controls and Drives;Corrosive Environments |
Application | Controls and Drives; Corrosive Environments |
Body Thickness | 1.98 mm |
Body Thickness | 14 ga |
Body Thickness | 16 ga |
Color | Brushed |
Color | Unpainted |
Conductive Panel | CP4836G |
Depth | 16 IN |
Depth | 406 mm |
Door Thickness | 1.98 mm |
Door Thickness | 14 ga |
Finish | Brushed #4 |
Height | 1,219 mm |
Height | 48 in |
Ip Rating | IP66/IP67 |
IP Rating | IP66 |
Latch Quantity | 4 |
Latch Type | Quarter-turn |
Material | 304 Stainless Steel |
Material | Stainless Steel 304 |
Material Quality | Stainless Steel 304 |
Material Quality | Stainless steel V2A |
Modification Services | Yes |
Mounting | Wall Mounting Brackets Available |
Mounting | 46.50 x 34.50 in |
Mounting Type | Wall-mount |
NEMA Rating | 12 Indoor, dust-resistant |
Nema Rating | Type 4X |
NEMA Rating | 12 |
Panel | CP4836 |
Panel Size | 46.20 x 34.20 in |
Panel Size | 1173 x 869 mm |
Product Family | Concept |
Protection Rating | NEMA Type 12 |
Series | Concept |
Size | 48X36X16 |
Style | Quarter-turn |
Type | Stainless Steel Wall Mounted Industrial Enclosures |
Type Number | Type 3R |
Weight | 157 lb |
Width | 914 mm |
Width | 36 in |
Package Dimensions (L x W x H) | 53 IN x 37.25 IN x 18.25 IN |
Package Dimensions (L x W x H) | 134.62 cm x 94.615 cm x 46.355 cm |
Package Weight (Imperial) | 157.000 L |
Package Weight (Metric) | 71.215 kg |
