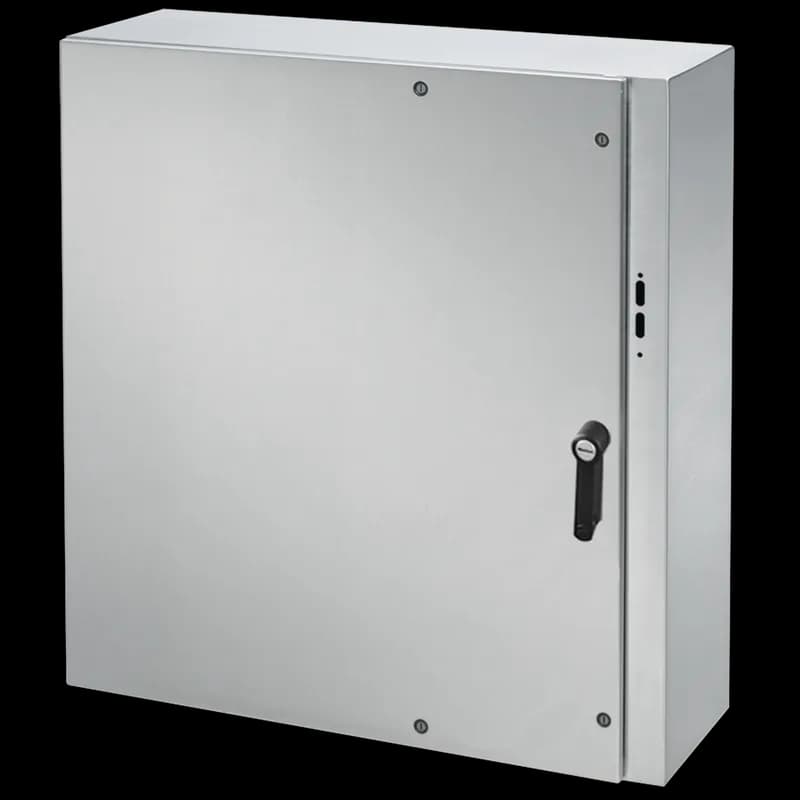

nVent CDSC603816SSR Concept Wallmount Disconnect 1/4-Turn Latch Type 4X, 60x38x16, Brushed, SS304
UPC: 783510344641
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange
- Integral door alignment device to properly align door and gasket to body flange
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Standard full-access door opening
- Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
- Provisions on door for optional high-impact thermoplastic data pocket
Specifications
Application | Arc Flash Safety;Controls and Drives;Corrosive Environments |
Application | Corrosive Environments; Arc Flash Safety; Controls and Drives |
Color | Unpainted |
Color | Brushed |
Concept Panel | CP6036 |
Conductive Panel | CP6036G |
Depth | 16 IN |
Depth | 406 mm |
Finish | Brushed #4 |
Height | 60 in |
Height | 1,524 mm |
IP Rating | IP66 |
Latch Style | 1 - 3-point |
Latch Type | 1 - 3-Point |
Material | Stainless Steel 304 |
Material | SS304 | 304 SS |
Material Quality | Stainless Steel 304 |
Material Quality | Stainless steel V2A |
Modification Services | Yes |
Mounting | Wall Mounting Brackets Available |
Mounting | 58.50 x 36.45 in |
Mounting Type | Wallmount |
NEMA Rating | 12 Indoor, dust-resistant |
NEMA Rating | 12 |
Nema Rating | Type 4X |
Panel Size | 58.20 x 34.20 in |
Panel Size | 1478 x 869 mm |
Product Family | Concept |
Protection Rating | NEMA Type 12 |
Series | Concept |
Size | 60x38x16 |
Size | 60.00x37.95x16.00 inch |
Stainless Steel Type | 304 |
Thickness | 1.98 mm |
Thickness | 14 ga |
Thickness | 51.40mm (2.024") |
Type | Stainless Steel Wall Mounted Industrial Disconnect Enclosures |
Weight | 176 lb |
Width | 964 mm |
Width | 38 IN |
Package Dimensions (L x W x H) | 65 IN x 39.25 IN x 18 IN |
Package Dimensions (L x W x H) | 165.1 cm x 99.695 cm x 45.72 cm |
Package Weight (Imperial) | 176.000 L |
Package Weight (Metric) | 79.834 kg |
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the CDSC603816SSR Concept Wall Mounted Disconnect Enclosure
Installation guide for mounting and wiring the CDSC603816SSR Concept Wall Mounted Disconnect Enclosure. Ensure all functions, fits, and clearances are checked before and after installation.
Estimated time: 1h
Tools needed:
Drill, Screwdriver, Manufacturer's instructions for disconnect device, Manufacturer's instructions for door catch and interlock bracket
Supplies needed:
Disconnect device, Operating handle, Door catch and door catch bracket (if not supplied with enclosure), Superlube (p/n 99411823), M6 screw, Padlock
- Prepare the mounting panel
Drill the mounting panel according to the manufacturer's instructions for the disconnect device.
- Install the operating handle
Install the operating handle onto the enclosure flange in the provided holes. Follow the disconnect manufacturer's instructions.
- Install the disconnect device
Mount the disconnect device onto the panel. Follow the disconnect manufacturer's instructions for installation and adjustment.
- Install the padlocking door handle
Assemble the padlocking door handle on the outside of the door. Remove the M6 screw from the latch assembly, then remove the latch, insert, o-ring, and wave washer. Apply superlube to the handle and latch in the indicated locations. Reassemble the handle to the latch housing and re-install the M6 screw, torquing it to 38 in-lbs (4.3 Nm).
- Adjust the door catch and interlock bracket
Adjust the door catch and interlock bracket to properly engage with the disconnect operating handle. Refer to the disconnect manufacturer's instructions for adjustment procedures. Note that in some cases, the handle manufacturer's supplied door catch may be necessary.
- Verify enclosure operation
Ensure the enclosure door latches correctly when closed. The latch should push against the housing when the latch is in the closed position. To open the enclosure, turn the screwdriver slot 90° counter-clockwise while holding it, then turn the handle clockwise. To close, push the door and turn the handle counter-clockwise. The screwdriver slot will reset automatically. Install a padlock through the handle to secure the enclosure.
