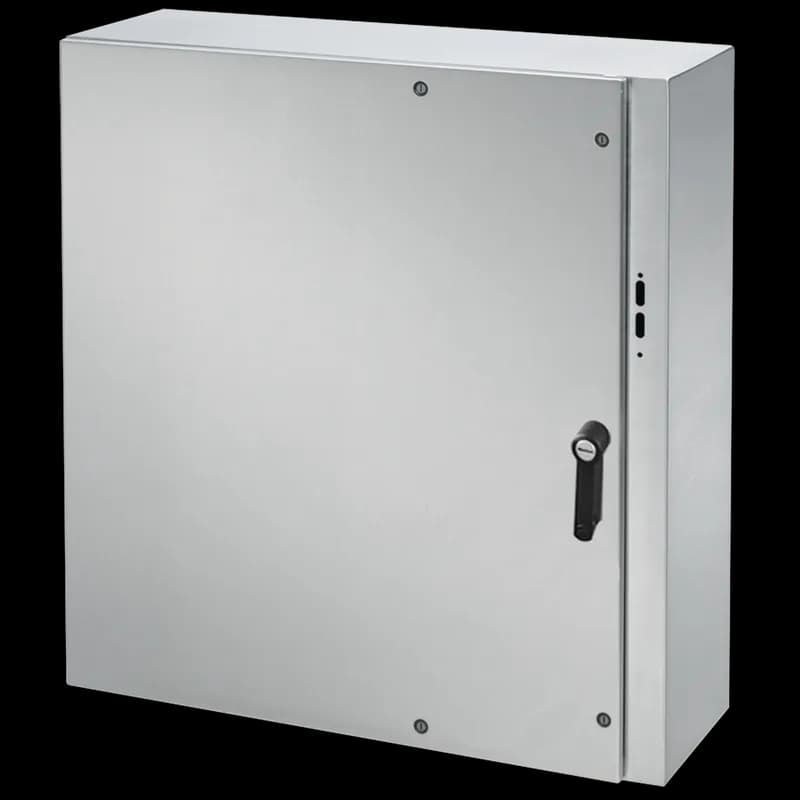

nVent CDSC483816SSR - Concept Wallmount Disconnect 1/4-Turn Latch Type 4X, 48x38x16, Brushed, SS304

nVent CDSC483816SSR Concept Wallmount Disconnect 1/4-Turn Latch Type 4X, 48x38x16, Brushed, SS304

UPC: 783510346133

Documents & Media
Installation Instructions

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent CDSC483816SSR is a premium Concept Wallmount Disconnect Enclosure engineered for demanding industrial environments. Constructed from robust 304 stainless steel, this enclosure offers superior corrosion resistance and durability, making it ideal for applications where hygiene, sanitation, or exposure to harsh chemicals is a concern. Its generous 48x38x16 inch dimensions provide ample space for housing disconnect switches, control components, and other critical electrical equipment, ensuring safe and organized installations. The nVent Concept Disconnect Enclosures are specifically designed to address the needs of applications requiring larger controls and enhanced security. This particular model, the CDSC483816SSR, features a sophisticated 1/4-turn latch mechanism, renowned for its ease of operation and secure engagement. Beyond the standard latch, this enclosure incorporates two additional quarter-turn latches, providing an extra layer of security and ensuring a tightly sealed enclosure against environmental contaminants. A crucial element of its design is the integrated door-alignment device, which guarantees precise door closure and contributes to the overall integrity of the enclosure's protection rating. This enclosure is built to meet stringent industry standards, offering Type 4X protection. This signifies its suitability for indoor or outdoor use, providing protection against water ingress, dust, and corrosion, as well as offering resistance to washdown. The brushed stainless steel finish not only enhances its aesthetic appeal but also contributes to its resistance to fingerprints and minor scuffs, maintaining a professional appearance over time. Professionals in industries such as food and beverage processing, pharmaceuticals, chemical manufacturing, and wastewater treatment will find the CDSC483816SSR to be an indispensable component for safeguarding their electrical infrastructure. Key features of the nVent CDSC483816SSR include: * **Premium 304 Stainless Steel Construction:** Offers exceptional corrosion resistance and longevity in challenging environments. * **Type 4X Protection Rating:** Ensures robust protection against water, dust, and corrosive agents, suitable for washdown applications. * **Generous Dimensions (48x38x16 inches):** Provides ample internal space for various electrical components and controls. * **Enhanced Security Latching:** Features a primary 1/4-turn latch complemented by two additional quarter-turn latches for superior closure and security. * **Door Alignment Device:** Guarantees precise and secure door closure, maintaining the enclosure's environmental seal. * **Brushed Stainless Steel Finish:** Offers a clean, professional look and improved resistance to surface marks. When selecting disconnect enclosures, factors such as environmental conditions, required protection levels, internal component size, and security needs are paramount. The nVent CDSC483816SSR excels in these areas, providing a reliable and secure housing solution. nVent's reputation for quality and innovation in enclosure systems ensures that this product will perform reliably, protecting critical electrical systems and contributing to operational efficiency and safety. The US origin further underscores a commitment to manufacturing excellence.
  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange
  • Integral door alignment device to properly align door and gasket to body flange
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Standard full-access door opening
  • Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
  • Provisions on door for optional high-impact thermoplastic data pocket

Specifications

Application
Arc Flash Safety;Controls and Drives;Corrosive Environments
Application
Arc Flash Safety; Corrosive Environments; Controls and Drives
Color
Unpainted
Concept Panel
CP4836
Conductive Panel
CP4836G
Depth
16 IN
Depth
406 mm
Finish
Brushed #4
Height
48 in
Height
1,219 mm
IP Rating
IP66
Latch Style
1 - 3-point
Latch Type
1 - 3-Point
Material
Stainless Steel 304
Material Quality
Stainless Steel 304
Material Quality
Stainless steel V2A
Modification Services
Yes
Mounting
Wall Mounting Brackets Available
Mounting
46.50 x 36.45 in
NEMA Rating
12
NEMA Rating
12 Indoor, dust-resistant
Panel Size
1173 x 869 mm
Panel Size
46.20 x 34.20 in
Product Family
Concept
Protection Rating
NEMA Type 12
Size
48.00x37.95x16.00 inch
Stainless Steel Type
304
Thickness
1.98 mm
Thickness
14 ga
Thickness
51.40mm (2.024")
Type
Stainless Steel Wall Mounted Industrial Disconnect Enclosures
Weight
143 lb
Width
38 IN
Width
964 mm
Package Dimensions (L x W x H)
53 IN x 39.25 IN x 18.25 IN
Package Dimensions (L x W x H)
134.62 cm x 99.695 cm x 46.355 cm
Package Weight (Imperial)
143.000 L
Package Weight (Metric)
64.865 kg
Panel 6.9 x 4.9 - Fits Encl. 8 x 6 - Alum

14A0705

Panel 6.9 x 4.9 - Fits Encl. 8 x 6 - Alum
Eclipse Inner Panel - Fits Encl. 30 x 30 - Steel/Wht

EP3030

Eclipse Inner Panel - Fits Encl. 30 x 30 - Steel/Wht
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black

LH38

Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
EP-RJG-M20-BL-A

1SNG618003R0000

EP-RJG-M20-BL-A
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey

LN43DA

1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey

LT20D-NEW

1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
External operation handle 0-1 type S01 Red Nema 4,4x

140E2911

External operation handle 0-1 type S01 Red Nema 4,4x
External operation handle 0-1 type S3 Black IP65

14333111

External operation handle 0-1 type S3 Black IP65
12,80" x 12,80" filter fan - 115Vac - 285.3 cfm - RAL 7035 - Type 12

FF20A115UE1

12,80" x 12,80" filter fan - 115Vac - 285.3 cfm - RAL 7035 - Type 12
5,90" x 5,90" filter fan - 24Vdc - 20.6 cfm - RAL 9005 - Type 3R - IP55

FF12D24NN53

5,90" x 5,90" filter fan - 24Vdc - 20.6 cfm - RAL 9005 - Type 3R - IP55

How to Install the CDSC483816SSR Concept Wall Mounted Disconnect Enclosure

Installation guide for mounting and wiring the CDSC483816SSR Concept Wall Mounted Disconnect Enclosure. Ensure all functions, fits, and clearances are checked before and after installation.

Estimated time: 1h

Tools needed:

Drill, Screwdriver, Manufacturer's instructions for disconnect device, Manufacturer's instructions for door catch and interlock bracket

Supplies needed:

Disconnect device, Operating handle, Door catch and door catch bracket (if not supplied with enclosure), Superlube (p/n 99411823), M6 screw, Padlock

  1. Prepare the mounting panel

    Drill the mounting panel according to the manufacturer's instructions for the disconnect device.

  2. Install the operating handle

    Install the operating handle onto the enclosure flange in the provided holes. Follow the disconnect manufacturer's instructions.

  3. Install the disconnect device

    Mount the disconnect device onto the panel. Follow the disconnect manufacturer's instructions for installation and adjustment.

  4. Install the padlocking door handle

    Assemble the padlocking door handle on the outside of the door. Remove the M6 screw from the latch assembly, then remove the latch, insert, o-ring, and wave washer. Apply superlube to the handle and latch in the indicated locations. Reassemble the handle to the latch housing and re-install the M6 screw, torquing it to 38 in-lbs (4.3 Nm).

  5. Adjust the door catch and interlock bracket

    Adjust the door catch and interlock bracket to properly engage with the disconnect operating handle. Refer to the disconnect manufacturer's instructions for adjustment procedures. Note that in some cases, the handle manufacturer's supplied door catch may be necessary.

  6. Verify enclosure operation

    Ensure the enclosure door latches correctly when closed. The latch should push against the housing when the latch is in the closed position. To open the enclosure, turn the screwdriver slot 90° counter-clockwise while holding it, then turn the handle clockwise. To close, push the door and turn the handle counter-clockwise. The screwdriver slot will reset automatically. Install a padlock through the handle to secure the enclosure.
