Overview

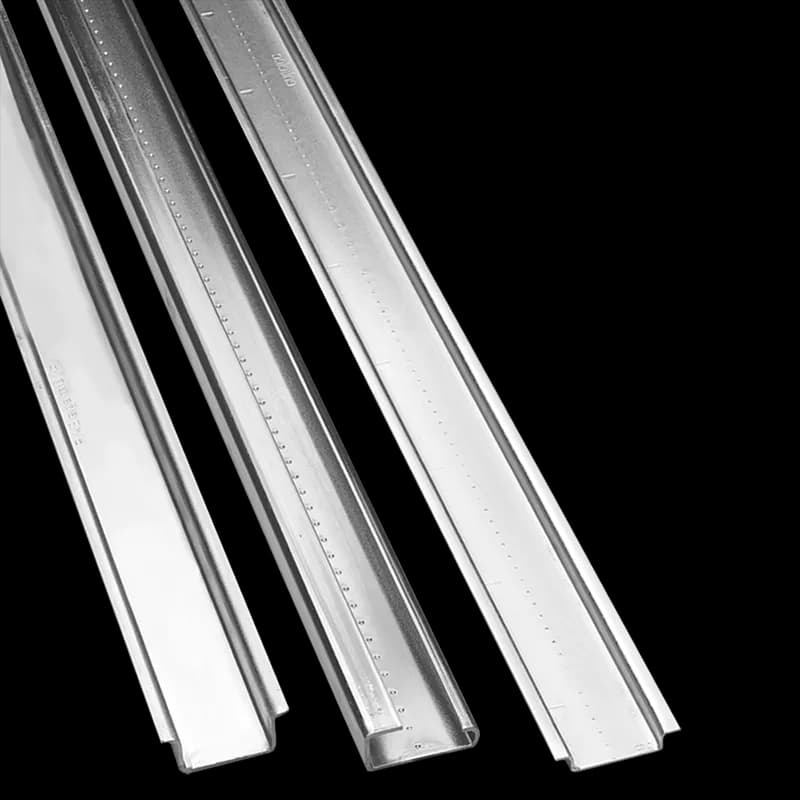

- Kit includes three rails and mounting hardware
- Kit includes three rails and mounting hardware
- Constructed from plated mild steel for durability
- Provides mounting surface for DIN rail snap-on devices
- Facilitates organized and efficient panel assembly
Specifications
Application | Controls and Drives |
Color | Unpainted |
Finish | Plated |
Fits Concept Enclosure | When A or B = 20.00 in. (508 mm) |
Fits Height | 20 in |
Fits Height | 2000 mm mm |
Fits Width | 20 in |
Material | Mild Steel |
Material | Plated Mild Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | DIN Rail |
Mounting Type | Vertical or Horizontal Attachment to Rear Collar Stud or Mounting Channels |
Product Family | Concept |
Series | Concept DIN Rail Kits |
Series | Concept |
Size | fits 20.00 in |
Size | 20-inch |
Thickness | 51.40mm (2.024") |
Thickness | 0.04 in |
Type | Internal Mounting for Industrial Enclosures |
Weight | 1.4 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 19.8 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 50.292 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 1.400 L |
Package Weight (Metric) | 0.635 kg |
How to Install the LDR3P93 Controller
This guide provides step-by-step instructions for mounting and wiring the LDR3P93 Controller on a DIN rail.
Estimated time: 45m
Tools needed:
Screwdriver, Torque wrench
Supplies needed:
M8 flanged nuts, Pan head screws, DIN rails, Mounting channels
- Mount the DIN rails
If mounting directly to enclosure studs, align the slots in the DIN rails with the studs. Attach an M8 flanged nut to each stud and torque to 99 in-lbs (11 Nm).
- Attach mounting channels (if applicable)
If using mounting channels, insert one channel nut for each DIN rail into the mounting channel. Follow the separate installation instruction sheet to attach the mounting channels to the enclosure studs.
- Secure the DIN rails to the channel nuts
Line up the slots in the DIN rails with the channel nuts. Insert one pan head screw into each nut and torque to 50 in-lbs (5.6 Nm).
