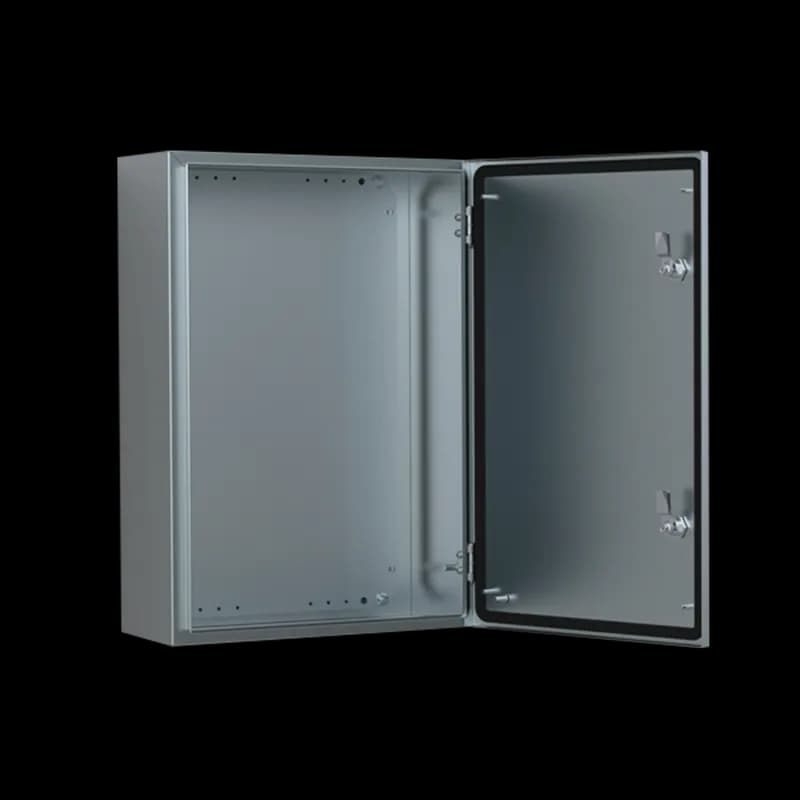

Overview
- Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door for AISI 304L: 1.5 mm / 2 mm for enclosures with a height or width of 600 mm or greater. Door for AISI 316L: 2 mm. Mounting plate: 2 mm galvanized steel.
- Body: Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Door: Corner formed in one piece. Surface mounted, with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Can be mounted to allow left or right hand opening. Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sea
- Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking or 3 locks for 1000 mm high enclosures and above. Stainless st
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All
- Cable access: No gland plate openings as standard, to maximise sealing and cleanliness.
- Protection: Corresponds with IP 66, TYPE 4X, 12, IK 10.
- Finish: 400 pre-grained stainless steel.
- Delivery: Enclosure with door, mounting plate, plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above.
- Additional information: For outdoor environments, exposed to precipitation, the use of a rain hood is advised. Also in environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management secti
Specifications
Application | Factory Automation and Process Control; Hazardous Environments; Corrosive Environments |
Body Thickness | 16 ga |
Body Thickness | 1.5 mm |
Cable Entry | No |
Color | Unpainted |
Connection | No |
Construction | Body: 16 gauge Door: 14 gauge |
Cubic Capacity | 23433 Cu-in |
Depth | 15.75 in |
Depth | 400 mm |
Door Thickness | 14 ga |
Door Thickness | 2 mm |
Finish | Brushed |
Height | 47.24 in |
Height | 1,200 mm |
Insulation | No |
IP Rating | IP66 |
Knockouts | No |
Latch Quantity | 3 |
Material | Stainless Steel 304 |
Material | Stainless 304 |
Max Mounting Depth | 15.04 in |
Max Mounting Depth | 382 mm |
Mounting | Wall Mounted |
Mounting Type | Wall-mounted |
Number of Outlet | 1 |
Protection Rating | NEMA Type 12 |
Series | ASR |
Size | 47.24 x 31.5 x 15.75 inch |
Size | 1200x800X400mm |
Type | Stainless Steel Wall Mounted Industrial Enclosures |
Weight | 141.23 lb |
Weight | 64.05 kg |
Width | 800 mm |
Width | 31.5 in |
Package Dimensions (L x W x H) | 47.62 IN x 31.87 IN x 32.12 IN |
Package Dimensions (L x W x H) | 120.9548 cm x 80.9498 cm x 81.5848 cm |
Package Weight (Imperial) | 163.100 L |
Package Weight (Metric) | 73.982 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
Frequently Asked Questions
What is the protection degree of the ASR enclosure?
The ASR enclosure has an IP 66 protection degree, meaning it prevents water and dust from entering.
What industry standards does the ASR enclosure meet?
It is UL 508A Listed, NEMA/EEMAC Type 4, 4X, 12, and meets IEC 62208 IP66 standards.
What materials are used for the ASR enclosure?
The enclosure is made of AISI 304L or AISI 316L stainless steel, with a galvanized steel mounting plate.
What are the dimensions of the ASR1208040 enclosure?
The enclosure dimensions are 1200mm high, 800mm wide, and 400mm deep.
How is the door of the ASR enclosure designed?
The door is surface mounted with a 130° opening, concealed hinges, and can be mounted for left or right hand opening.
What type of lock does the ASR enclosure use?
It features a customized zamak double-bit 3 mm lock with a 90° movement and anti-vibration mechanism.
How is the mounting plate designed for equipment installation?
The mounting plate is marked vertically at 10 mm intervals for easy positioning and has holes for cable fixing.
Does the ASR enclosure come with gland plate openings?
No, the enclosure does not have gland plate openings as standard to maximize sealing and cleanliness.
What is the impact protection rating of the enclosure?
The enclosure has an IK 10 protection rating, indicating resistance to impact.
What is included with the ASR enclosure upon delivery?
Delivery includes the enclosure with door, mounting plate, a plastic double-bit 3 mm key, and mounting accessories.
How to Prepare for ASR1408040-316 Installation
This guide outlines essential safety warnings and preparatory considerations for installing the ASR1408040-316 device, based on the limited documentation provided.
Estimated time: 5m
- Review All Safety Warnings
Before commencing any installation work for the ASR1408040-316, thoroughly review all safety warnings and guidelines provided in the documentation to ensure a safe installation environment.
- Prepare Mounting Surface for Combustible Materials
If mounting the ASR1408040-316 on or over a combustible surface, install a floor plate of at least 1.43 mm galvanized or 1.6 mm uncoated steel. Ensure the plate extends at least 150 mm beyond the equipment on all sides.
- Maintain Enclosure Environmental Integrity
When closing openings in a customized enclosure for the ASR1408040-316, use devices with the same environmental ratings to maintain the enclosure's environmental integrity.
