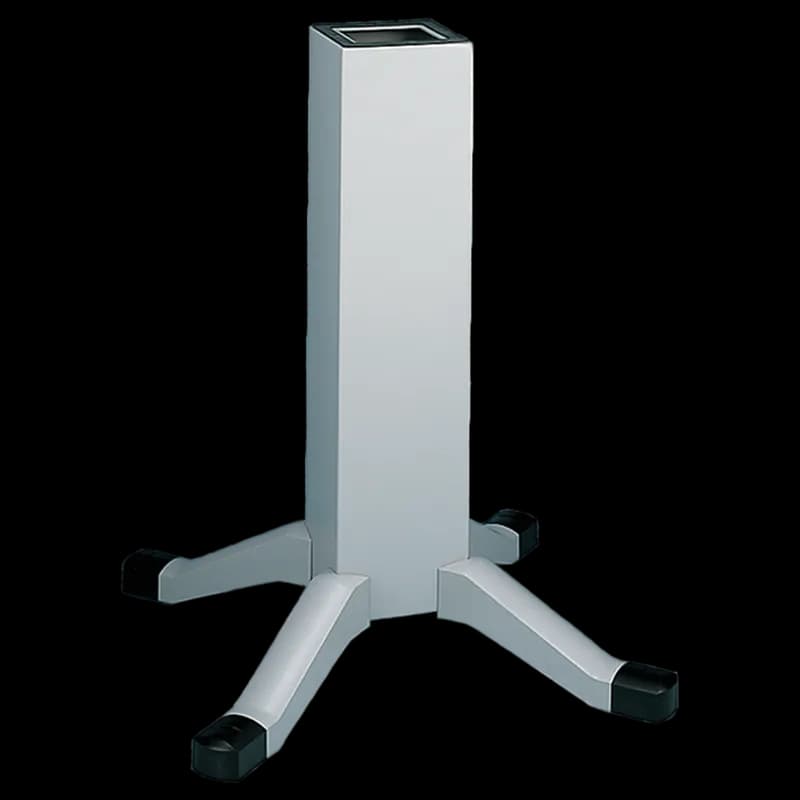

Overview
- Use 4.00 x 4.00-in. (102 x 102-mm) pedestal with Concept HMI and InLine HMI Enclosures
- Use 8.00 x 8.00-in. (203 x 203-mm) pedestal with ProLine Sloped-Front HMI Enclosures
- Attach pedestal to HMI base with cutout, swivel, swivel tilt or angle adapter with pre-drilled holes
- Hardware and gasket to attach enclosure are included
- Includes hardware and gasket for enclosure attachment
Specifications
Application | Controls and Drives |
Color | Ansi 61;Gray |
Color | Gray |
Color Code | ANSI 61 |
Depth | 102 mm |
Depth | 4 in |
Finish | Powder Coated |
Height | 914 mm |
Height | 36 in |
Height | 44 IN |
Material | Mild Steel;Steel |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Pedestal with Legs |
Series | AP |
Series | nVent AP36L44 |
Size | 36.00x4.00x4.00 inches |
Size | 36.00x4.00x4.00 |
Size | 36.00x4.00x4.00 in |
Thickness | 1.9 mm |
Thickness | 14 ga |
Thickness | 51.40mm (2.024") |
Type | Pedestals |
Weight | 36.9 lb |
Width | 102 mm |
Width | 4 IN |
Package Dimensions (L x W x H) | 35.75 IN x 11.2 IN x 4.8 IN |
Package Dimensions (L x W x H) | 90.805 cm x 28.448 cm x 12.192 cm |
Package Weight (Imperial) | 36.900 L |
Package Weight (Metric) | 16.738 kg |
