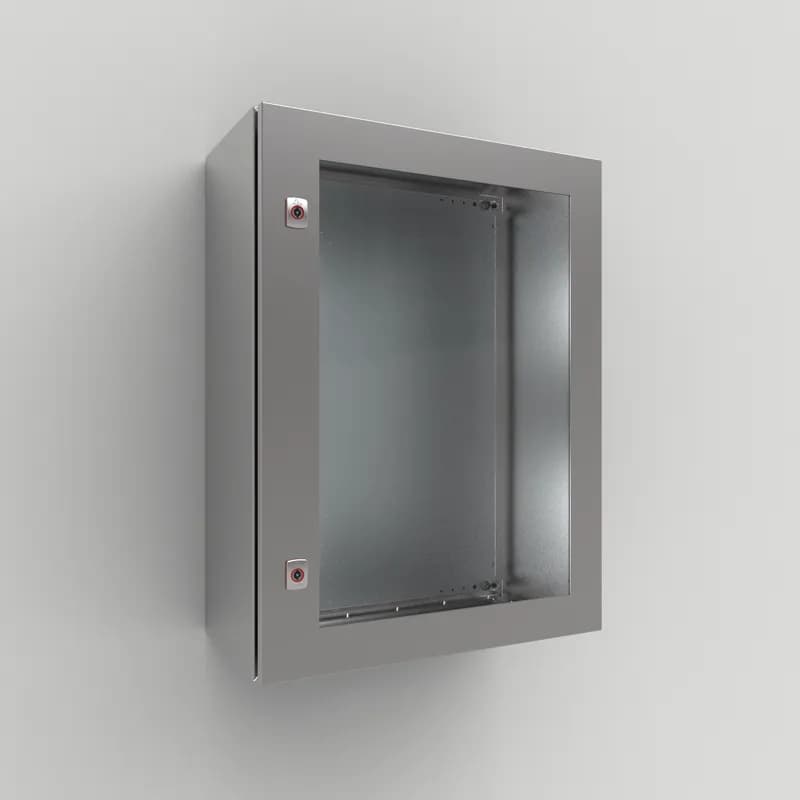

nVent ADCS04040 Glazed door, 400x400, Stainless 304, 3mm double bit lock
UPC: 783510115524
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Description: To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all nVent HOFFMAN's standard lock(s)
- Material: 1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass
- Finish: 400 pre-grained stainless steel
- Protection: Complies with IP55, TYPE 12, 13, IK 07.
- Pack quantity: 1 door
- The glazed door allows the electrical components to be seen while the enclosure's door is closed
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
- Note: * 3 point espagnolette locking. Not suitable for AFS
Specifications
Enclosure Material | Mild Steel |
Finish | Brushed |
Height | 44 IN |
Height | 15.75 in |
IP Rating | IP55 |
Latch Quantity | 1 |
Material | Stainless 304 |
Material | Stainless Steel 304 |
Nema Rating | Type 12, Type 13 |
Product Family | Wall Mounted |
Protection Rating | IP55 |
Series | nVent HOFFMAN ADCS |
Size | 400x400 mm |
Thickness | 51.40mm (2.024") |
Thickness | 0.06 IN |
Type | Doors |
Width | 400 mm |
Width | 15.75 in |
Window Size | 10.2 x 9.57 in |
Window Size | 343 x 366 mm |
Works With | IEC |
Package Dimensions (L x W x H) | 16.12 IN x 16.12 IN x 16.37 IN |
Package Dimensions (L x W x H) | 40.9448 cm x 40.9448 cm x 41.5798 cm |
Package Weight (Imperial) | 7.400 L |
Package Weight (Metric) | 3.357 kg |
TGL6
No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. EQUIPMENT GROUND KIT
H8064HLL
8x6x4 Polycarbonate Enclosure NEMA 4X | Hinged Cover | Gray | Stainless Steel Locking Latch | Mounting Feet
RCR75J
A retrofit cable connector for nonmetallic sheathed cable and NM-B nonmetallic cable. It is made of plastic and comes in grey. The size is 3/4" and it is designed for 1-cable use.
Frequently Asked Questions
What material is the ADCS04040 glazed door made of?
The door is constructed from 1.5 mm thick AISI 304 stainless steel with a brushed finish.
What are the dimensions of the ADCS04040 glazed door?
The door has a height and width of 15.75 inches.
What is the window size on the ADCS04040 glazed door?
The window size is 10.2 x 9.57 inches.
Can electrical components be viewed with the ADCS04040 door closed?
Yes, electrical components can be viewed while the door is closed, maintaining ingress protection.
What protection ratings does the ADCS04040 glazed door comply with?
It complies with IP55, TYPE 12, 13, and IK 07 ratings.
What is the thickness of the ADCS04040 glazed door?
The door thickness is 0.06 inches.
What type of lock does the ADCS04040 glazed door use?
It features a double bit lock and 3 point espagnolette locking.
