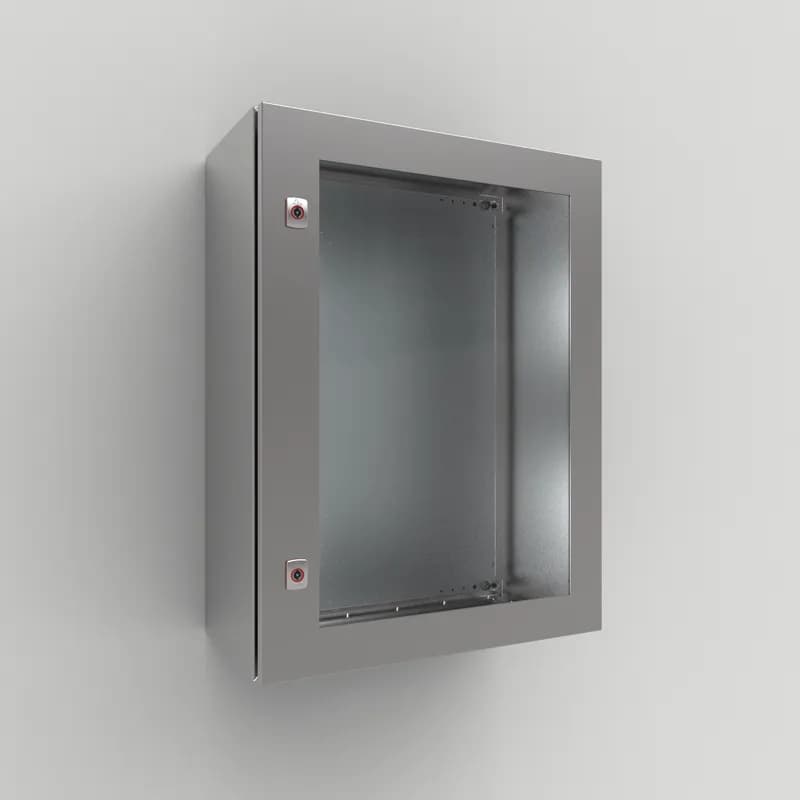

nVent ADCS04030 Glazed door, 400x300, Stainless 304, 3mm double bit lock
UPC: 783510115463
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Description: To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all nVent HOFFMAN's standard lock(s)
- Material: 1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass
- Finish: 400 pre-grained stainless steel
- Protection: Complies with IP55, TYPE 12, 13, IK 07.
- Pack quantity: 1 door
- The glazed door allows the electrical components to be seen while the enclosure's door is closed
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
- The user can monitor the status of the components without the need for opening the enclosure's door maintaining the ingress protection
- Note: * 3 point espagnolette locking. Not suitable for AFS
Specifications
Enclosure Material | Mild Steel |
Finish | Brushed |
Height | 44 IN |
Height | 15.75 in |
Latch Quantity | 1 |
Material | Stainless 304 |
Material | Stainless Steel 304 |
Mounting Type | Pre-drilled mounting points |
Product Family | Wall Mounted |
Protection Rating | IP55 |
Series | nVent ADCS |
Size | 400x300 mm |
Thickness | 0.06 IN |
Thickness | 51.40mm (2.024") |
Type | Doors |
Width | 11.81 in |
Width | 300 mm |
Window Size | 343 x 366 mm |
Window Size | 10.2 x 5.63 in |
Works With | IEC |
Package Dimensions (L x W x H) | 16.12 IN x 12.19 IN x 12.44 IN |
Package Dimensions (L x W x H) | 40.9448 cm x 30.9626 cm x 31.5976 cm |
Package Weight (Imperial) | 5.400 L |
Package Weight (Metric) | 2.449 kg |
TGL6
No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. EQUIPMENT GROUND KIT
BMBT16244SL
This is a Black Claw product made from 22 gauge galvanized steel. The listed size is H 5-1/8 x W 17-1/4 x D 1/2. It is identified on the sheet as catalog number BMBT16244SL.
Frequently Asked Questions
What material is the ADCS04030 glazed door made of?
The glazed door is made of Stainless Steel 304 with a brushed finish and a thickness of 0.06 inches.
What are the dimensions of the ADCS04030 glazed door?
The door has a height of 15.75 inches and a width of 11.81 inches.
What is the window size on the ADCS04030 glazed door?
The window size is 10.2 x 5.63 inches.
Can electrical components be viewed with the ADCS04030 door closed?
Yes, the glazed door allows electrical components to be viewed while the enclosure door is closed, maintaining ingress protection.
What protection ratings does the ADCS04030 glazed door comply with?
The door complies with IP55, TYPE 12, 13, and IK 07 protection ratings.
What type of lock does the ADCS04030 glazed door use?
The door features a double bit lock and a 3-point espagnolette locking system.
What is the material of the enclosure for the ADCS04030 door?
The enclosure material is Mild Steel.
Is the ADCS04030 door suitable for AFS applications?
No, the 3-point espagnolette locking system is not suitable for AFS.
