Overview

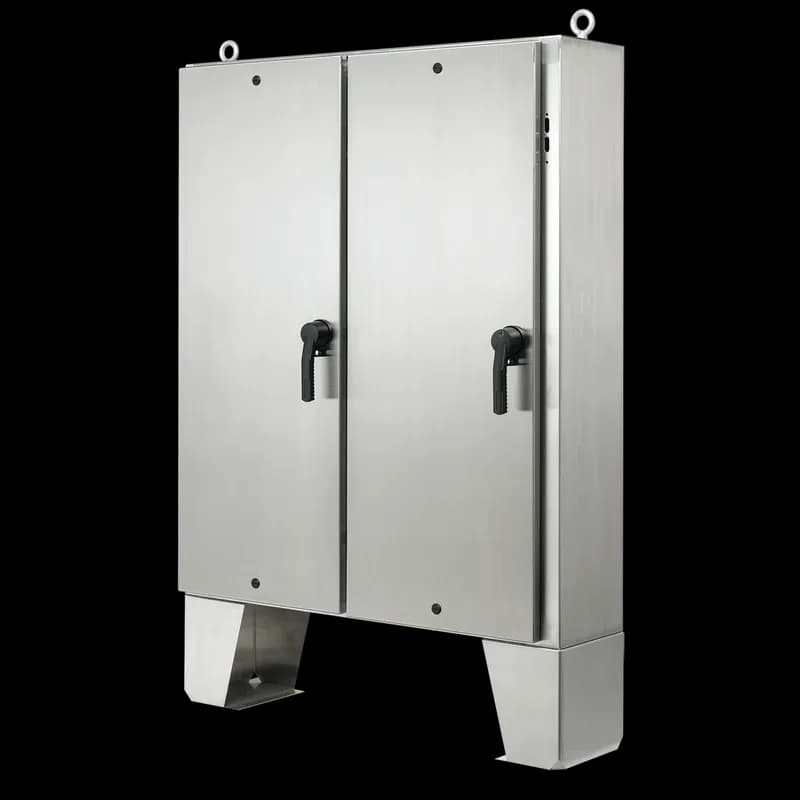

- Floor-standing enclosure with 1/4 turn latching
- Seams continuously welded and ground smooth
- Flange trough collar on all four sides of door openings
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Black die-cast quarter-turn latches with slotted insert provided on three sides of each door
- Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
- Bolt-on 12-in.-high stainless steel floor stands
- Heavy-duty Type 316L stainless steel lifting eyes
- Collar studs on inside of enclosure back for mounting optional panels
- Removable centerpost for easy panel installation
Specifications
Application | Controls and Drives; Hygienic Environments; Corrosive Environments |
Application | Controls and Drives;Corrosive Environments;Hygienic Environments |
Body Thickness | 2.8 mm |
Body Thickness | 12 ga |
Body Thickness | 16 ga |
Color | Unpainted |
Conductive Panel | A60P48G |
Depth | 459 mm |
Depth | 18.06 |
Depth | 459 |
Door Thickness | 14 ga |
Door Thickness | 1.98 mm |
Finish | Brushed #4 |
Height | 1,526 mm |
Height | 60.06 |
Height | 1,526 |
IP Rating | IP66 |
Latch Quantity | 10 |
Material | Stainless Steel 304 |
Material | Stainless Steel;Stainless Steel 304 |
Modification Services | Yes |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Panel | A60P48 |
Panel Size | 1422 x 1118 mm |
Panel Size | 56.00 x 44.00 in |
Protection Rating | NEMA Type 12 |
Size | 60.06x48.06x18.06 in |
Type | Stainless Steel Freestanding Industrial Enclosures |
Type Number | Type 3R |
Weight | 416 lb |
Width | 48.06 |
Width | 1,221 |
Width | 1,221 mm |
Package Dimensions (L x W x H) | 68 IN x 38 IN x 81.75 IN |
Package Dimensions (L x W x H) | 172.72 cm x 96.52 cm x 207.645 cm |
Package Weight (Imperial) | 416.000 L |
Package Weight (Metric) | 188.698 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the WS626312SS Enclosure
This guide provides step-by-step instructions for installing the WS626312SS enclosure, including mounting, wiring, and initial setup.
Estimated time: 45m
Tools needed:
Screwdriver, Hole saw, Punch tool
Supplies needed:
Watertight conduit hubs, Lockwashers, Mounting screws
- Prepare the enclosure
Install the external toothed lockwasher under one of the nuts securing the panel to ensure proper bonding between the panel and the enclosure.
- Cut conduit openings
Use a hole saw or Greenlee-type punch to cut the required holes for conduit entry in the top, bottom, or side walls of the enclosure, following the recommended sizes based on the conduit trade size.
- Install conduit hubs
Install the watertight conduit hubs according to the manufacturer's instructions, ensuring they fit securely into the openings you have cut.
