Overview

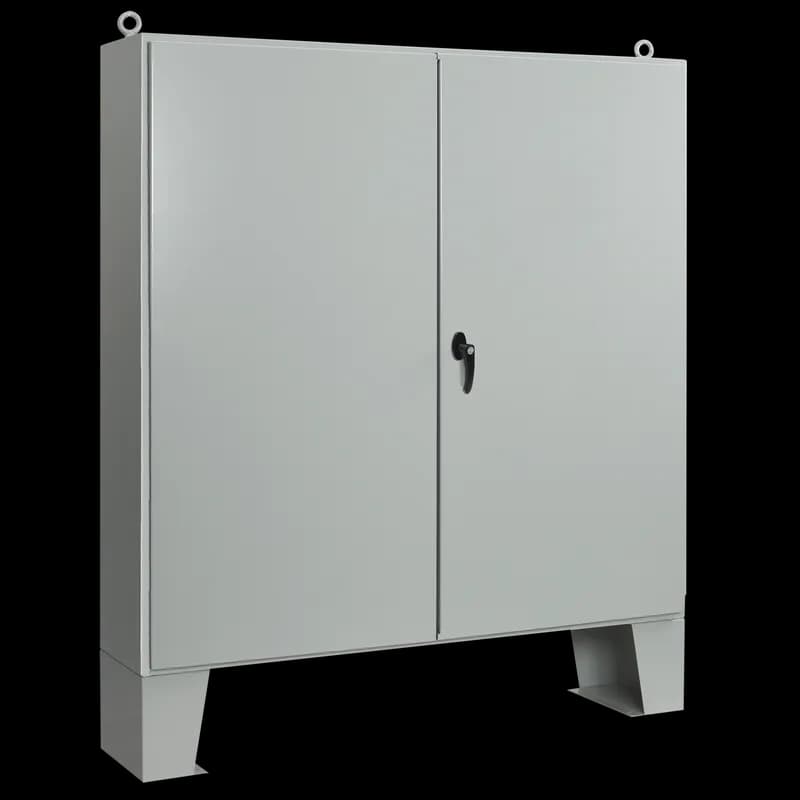

- Seams continuously welded and ground smooth; no holes or knockouts
- 3-point latch mechanism operated by oil-tight key-lock handle
- Gasketed overlapping doors with no centerpost
- Concealed, easy-to-remove hinges
- Data pocket is high-impact thermoplastic
- 12-in. floor stands bolted-on to enclosure
- Heavy-duty lifting eyes
- Panel supports
- Oil-resistant gasket
- Collar studs for mounting optional panel
Specifications
Application | Controls and Drives;Power Distribution |
Color | Gray |
Color Code | ANSI 61 |
Conductive Panel | A54P42G |
Depth | 8 in |
Depth | 13 IN |
Exterior Color | Gray |
Exterior Color Code | ANSI 61 |
Finish | Powder Coated |
Height | 44 IN |
Height | 54 |
Height | 1,372 |
Interior Color | White |
IP Rating | IP55 |
Material | Steel |
Material | Mild Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting Type | Floor Stand |
Nema Rating | Type 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Panel | A54P42 |
Panel Gauge | 11 |
Panel Size | 72.00 x 72.00 in |
Panel Size | 50.00 x 38.00 in |
Protection Rating | NEMA Type 12 |
Size | 54.06x42.06x8.06 inches |
Size | 54.06x42.06x8.06 in |
Stiffener | 381 mm |
Stiffener | 15 in |
Thickness | 51.40mm (2.024") |
Thickness | 12 ga |
Type | Mild Steel Freestanding Industrial Enclosures |
Type Number | Type 12 |
Weight | 292 lb |
Width | 23 IN |
Width | 42 |
Width | 1,067 |
Package Dimensions (L x W x H) | 74 IN x 48 IN x 14 IN |
Package Dimensions (L x W x H) | 187.96 cm x 121.92 cm x 35.56 cm |
Package Weight (Imperial) | 292.000 L |
Package Weight (Metric) | 132.451 kg |
