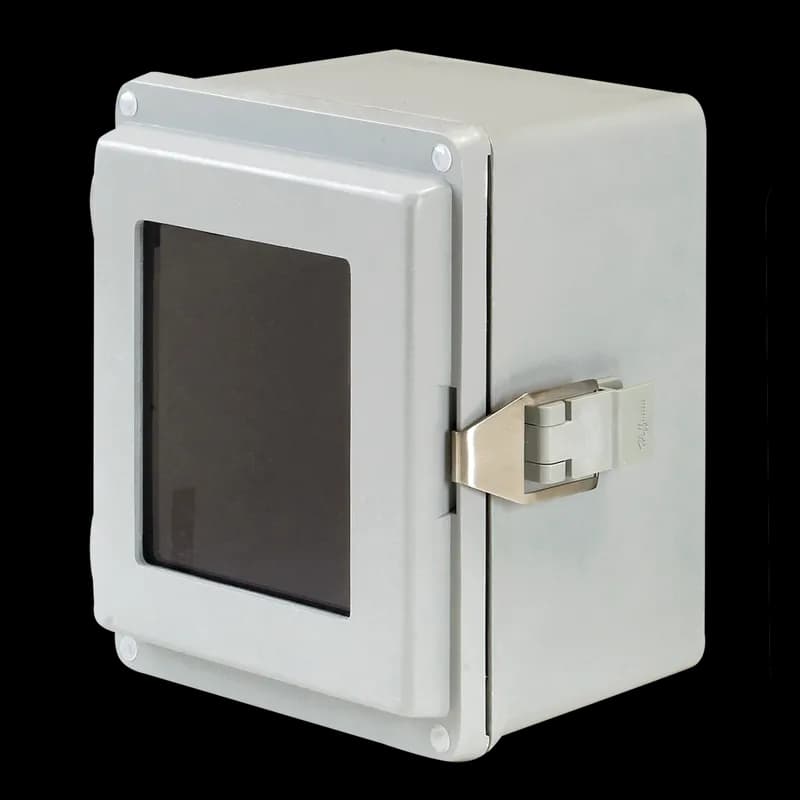

Overview
- NEMA Type 4X rated for superior protection against water, dust, and corrosion.
- Quick-release latch system for rapid, tool-free access to internal components.
- Durable, non-metallic fiberglass polyester construction resists chemicals and temperature changes.
- Scratch-resistant GE Lexan Margard® window permanently bonded for visibility.
- Includes 3/4-in. plywood panel and 316 stainless steel hardware for corrosion resistance.
- Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
- Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
- A Type 316L stainless steel padlock hasp is furnished with each enclosure
- Sealing washers are furnished with enclosure
Specifications
Aluminum Panel | A16P14AL |
Application | Controls and Drives;Corrosive Environments |
Application | Controls and Drives; Corrosive Environments |
Color | Gray |
Color | Grey |
Color | Light Gray |
Color Code | RAL 7035 |
Cover Style | Window Cover |
Cover Style | Window |
Cubic Capacity | 2090 in3 |
Cubic Capacity | 2090 cubic in |
Depth | 229 mm |
Depth | 9 |
Finish | Smooth Matte |
Height | 18 IN |
Height | 457 mm |
Inside Dimensions | 17.50 x 14.00 x 8.53 in |
IP Rating | IP66 |
Latch Quantity | 2 |
Latch Style | Quick Release Latch |
Latch Type | Quick Release |
Material | Fiberglass |
Material Quality | Fiberglass |
Modification Services | Yes |
Mounting | 16.75 x 12.00 in |
NEMA Rating | 4X Watertight, corrosion-resistant |
NEMA Rating | 4X |
Overall Dimensions | 18.00 x 15.39 in |
Panel Size | 14.75 x 12.88 in |
Protection Rating | NEMA Type 12 |
Size | 17.50x14.00x8.53 in |
Steel Panel | A16P14 |
Thickness | 51.40mm (2.024") |
Thickness | 0.15 in |
Type | Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures |
Type Number | Type 3R |
Usage | Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications. |
Weight | 11.1 lb |
Width | 356 mm |
Width | 14 IN |
Window Size | 14.45 x 11.06 in |
Package Dimensions (L x W x H) | 18.4 IN x 16 IN x 9.8 IN |
Package Dimensions (L x W x H) | 46.736 cm x 40.64 cm x 24.892 cm |
Package Weight (Imperial) | 11.100 L |
Package Weight (Metric) | 5.035 kg |
