Contact for Pricing
Overview

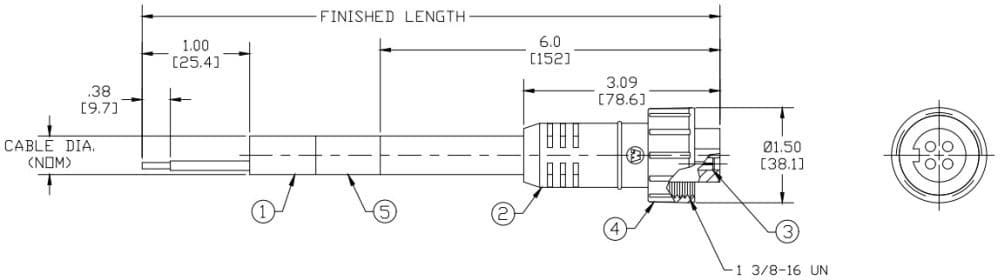

- 12-foot, 10/4 SO cordset with female connector
- 10 AWG SOW Neoprene cable for industrial motor use
- NEo-TEX® Paracril OZO housing and nickel-plated brass contacts
- NEMA 1, 3, 4, 4X, 5, 6, 6P, 12 and IEC IP55-67 environmental ratings
- Rated for 600V AC/DC and operates from -40°C to 75°C
Specifications
Color | Yellow |
Connection Type | Female Connector |
Connection Type | Female Type N |
Ip Rating | IP55/IP56/IP57/IP65/IP66/IP67 |
Material | Nitrile/SBR, Neoprene, Nickel-plated brass, Stainless steel, Nylon |
Nema Rating | NEMA 1, 3, 4, 4X, 5, 6, 6P, 12 |
Poles | 4P |
Series | QC 4P FP |
Size | 12 ft |
Size | 12ft |
Voltage Rating | 600V AC/DC |
Voltage Rating | 600 V AC/DC |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
