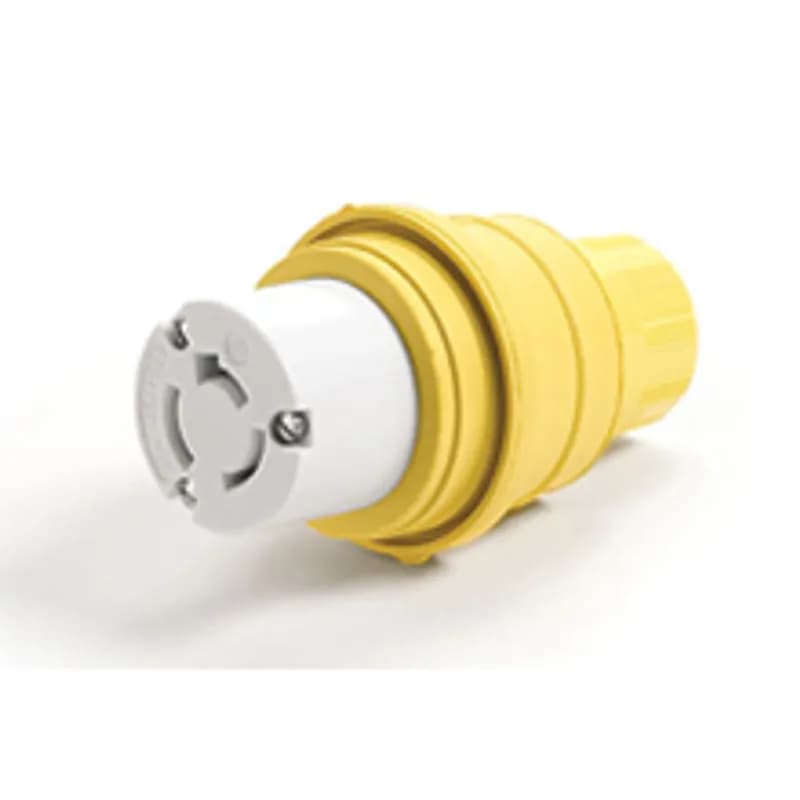

Woodhead 29W47MB - Watertite® Connector for Male Receptacle with Locking Blade, Single Flip Coverplate, 2 Pole/3 Wire, NEMA L5-30, 125V, F4
Woodhead

29W47MB

Alternate Item Number: 1301470095

UPC: 786788714017

Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Overview

The Woodhead Watertite® Connector (SKU: 29W47MB) is a rugged, IP67-rated male receptacle connector designed for secure power delivery in harsh industrial, commercial, and outdoor environments. Rated for NEMA L5-30 (125V, 2 pole/3 wire), this connector delivers reliable 20A power with a locking blade mechanism that prevents accidental disconnection—critical for vibration-prone applications like construction sites, marine equipment, and food processing facilities. The single flip coverplate provides tool-free access while protecting internal components from dust, water ingress (up to 1000psi high-pressure washdown), and contaminants, meeting NEMA 4X and IP67 standards. Key features include nickel-plated brass blades and contacts for corrosion resistance, a three-piece strain relief system that seals cords without damage, and tri-drive terminal screws (compatible with straight, Phillips, and square-drive drivers) for fast, tool-free wiring. The transparent wiring guide ensures proper strand alignment before tightening, reducing installation errors. The F4 body size (¾" diameter) accommodates standard cord grips, while the Lexan® coverplate and closure caps offer impact resistance and UV stability. UL File No. E10176 and CSA File No. LR6837 certifications validate compliance with North American safety standards, including NSF/ANSI/3-A 14159-1 for food-grade environments. Ideal for powering portable tools, temporary lighting, or machinery in wet/dirty locations, the 29W47MB eliminates downtime from connector failure. Its floating blade construction minimizes wear and heat generation, extending service life in continuous-use applications. Pair with Woodhead Watertite® receptacles (e.g., 27W49) or closure caps for full system protection.
  • NEMA L5-30 rated (125V, 20A, 2P/3W) for 120V systems
  • IP67 and NEMA 4X certified for wet/dirty environments (resists 1000psi washdown)
  • Locking blade mechanism prevents accidental disconnection in high-vibration areas
  • F4 body size (¾" diameter) with three-piece strain relief for cord protection
  • Nickel-plated brass contacts, tri-drive screws, and transparent wiring guide for easy installation

Specifications

Amperage Rating
30.0A
Amperage Rating
30 A
Brand Name
Woodhead
Environmental Conditions
IP67
Number Of Poles
2-pole/3-wire
Number of Poles
2
Sub Brand
Watertite
Type
Connector
Voltage Rating
125V
Package Weight (Imperial)
1.400 L
Package Weight (Metric)
0.635 kg
Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L5-30, 125V

29T47

Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L5-30, 125V
Maxgard Male Inlet, 30Amp, 2 Pole 3 Wire, 125V, 60Hz

DS3107MR000

Maxgard Male Inlet, 30Amp, 2 Pole 3 Wire, 125V, 60Hz
DXN30 PLUG POLY BLACK SIZE 2 IP 66/67 1P+N+G 30 A 125 VAC 60 Hz

22-38075 & 22-3A013-34

DXN30 PLUG POLY BLACK SIZE 2 IP 66/67 1P+N+G 30 A 125 VAC 60 Hz
CDK4-2 FEMALE PLUG-2 POLES

1SNK806715R0000

CDK4-2 FEMALE PLUG-2 POLES

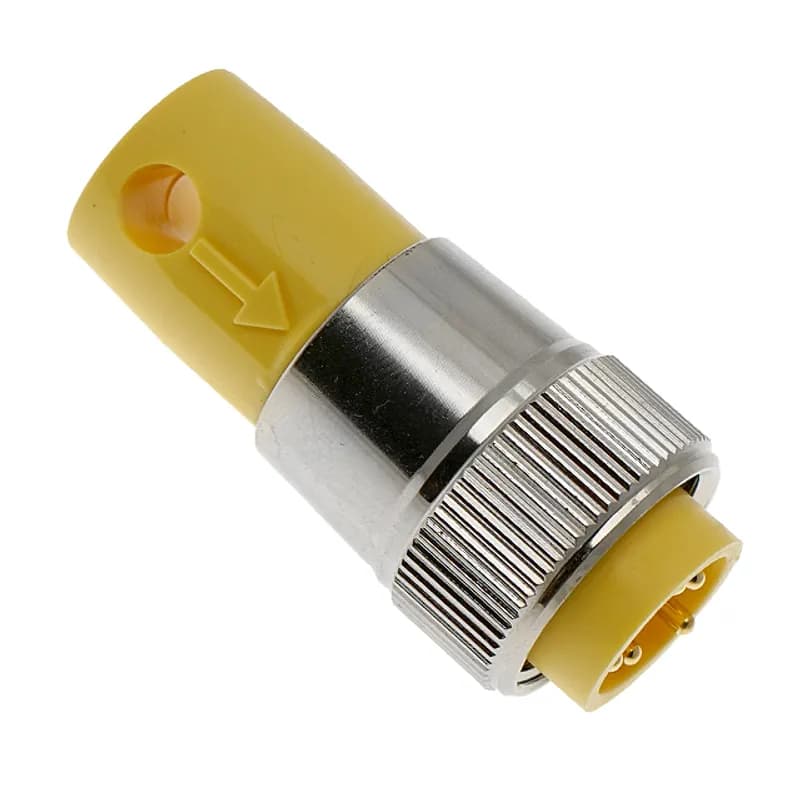

MIN Size I, Dummy plug, 4 Pole, Male Straight, 15A, European
