Woodhead 28W74D104 - Watertite® Cordset, 10 Gauge SOOW, 3 Pole/4 Wire, Cordset, Length 30.48m (100.0' ), NEMA L14-30, 125V/250V
Woodhead

28W74D104

Alternate Item Number: 1301430273

UPC: 786788710897

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The Woodhead Watertite® Cordset (SKU: 28W74D104) is a heavy-duty, 30.48m (100 ft) power solution designed for industrial environments requiring reliable, weather-resistant connections. This cordset features a 10 Gauge SOOW cable, meeting UL and CSA standards for oil resistance, water resistance, abrasion resistance, and extreme temperature performance (-40°C to 75°C continuous). The 3 Pole/4 Wire (3P+G) configuration supports 125V/250V applications, making it compatible with a wide range of industrial machinery, generators, and power distribution panels. The NEMA L14-30 locking connector ensures a secure, vibration-resistant connection, preventing accidental disconnections in mobile or high-vibration environments. This locking mechanism is critical for maintaining uninterrupted power flow and operational safety. The cordset’s 10 Gauge conductors provide superior conductivity and safe handling of high current loads, while the robust SOOW jacket protects against physical damage and environmental ingress. Manufactured by Woodhead, a trusted name in industrial electrical components, this Watertite® series cordset meets stringent quality and safety standards (UL File No. E38085, CSA File No. LR6837). It is ideal for applications including construction sites, manufacturing plants, outdoor power generation, and maintenance operations where durability and reliability are non-negotiable. The 30.48m length offers extended reach for complex installations, reducing the need for multiple connections or extensions. With a NEMA 4X rating and IP67 ingress protection, this cordset is built to withstand harsh conditions, including high-pressure washdowns up to 1000psi.
  • 10 Gauge SOOW cable for superior durability, oil/water/abrasion resistance
  • 3 Pole/4 Wire (3P+G) configuration for versatile power distribution
  • NEMA L14-30 locking connector prevents accidental disconnections
  • Rated for 125V/250V, compatible with industrial machinery and generators
  • 30.48m (100 ft) length for extended reach in complex installations
  • UL and CSA certified (E38085, LR6837) for safety and reliability
  • Operating temperature: -40°C to 75°C continuous
  • NEMA 4X and IP67 rated for harsh environmental conditions

Specifications

Amperage Rating
30 A
Brand Name
Woodhead
Connection Type
Locking Connector
Environmental Conditions
IP67
Material
SOOW Cable (Rubber Jacket)
Nema Rating
NEMA L14-30
Number Of Poles
3-pole/4-wire
Number of Poles
3
Poles
3P+G
Series
Watertite
Size
10 Gauge
Special Features
125V and 250V
Sub Brand
Watertite
Type
Cordset
Voltage Rating
125V/250V
Package Dimensions (L x W x H)
18.75 IN x 9.5 IN x 26 IN
Package Dimensions (L x W x H)
47.625 cm x 24.13 cm x 66.04 cm
Package Weight (Imperial)
36.100 L
Package Weight (Metric)
16.375 kg
Watertite® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L5-30, 125V, Cord Grip Body Size F4

29W47

Watertite® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L5-30, 125V, Cord Grip Body Size F4
Watertite® Cordset, 10 Gauge SOOW, 2 Pole/3 Wire, Cordset, Length 15.24m (50.0' ), NEMA L5-30, 125V

28W47B103

Watertite® Cordset, 10 Gauge SOOW, 2 Pole/3 Wire, Cordset, Length 15.24m (50.0' ), NEMA L5-30, 125V
Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L5-30, 125V

2947

Super-Safeway® Connector with Locking Blade, 2 Pole/3 Wire, NEMA L5-30, 125V
Watertite Extreme Connector for Male Receptacle with Locking Blade, 3 Pole/3 Wire, Non-NEMA 15A/125V, 10A/250V, F2, Silicone Husk

25W07MB

Watertite Extreme Connector for Male Receptacle with Locking Blade, 3 Pole/3 Wire, Non-NEMA 15A/125V, 10A/250V, F2, Silicone Husk
Watertite Extreme Plug, 3 Pole/3 Wire, Non-NEMA, 15A/125V, 10A/250V, Cord Grip Body Size F2, Silicone Husk

14W07

Watertite Extreme Plug, 3 Pole/3 Wire, Non-NEMA, 15A/125V, 10A/250V, Cord Grip Body Size F2, Silicone Husk
Watertite Extreme Connector, 3 Pole/3 Wire, Non-NEMA, 15A/125V, 10A/250V, Cord Grip Body Size F2, Silicone Husk

15W07

Watertite Extreme Connector, 3 Pole/3 Wire, Non-NEMA, 15A/125V, 10A/250V, Cord Grip Body Size F2, Silicone Husk
Watertite Extreme Connector with Locking Blade, 3 Pole/3 Wire, Non-NEMA, 15A/125V, 10A/250V, Cord Grip Body Size F2, Silicone Husk

25W07

Watertite Extreme Connector with Locking Blade, 3 Pole/3 Wire, Non-NEMA, 15A/125V, 10A/250V, Cord Grip Body Size F2, Silicone Husk
MC 5P M/MFE 9M 90/90 TRUNK

DN99A-M090

MC 5P M/MFE 9M 90/90 TRUNK
Super-Safeway® Plug with Locking Blade, 3 Pole/3 Wire, Non-NEMA, 250V

2808

Super-Safeway® Plug with Locking Blade, 3 Pole/3 Wire, Non-NEMA, 250V

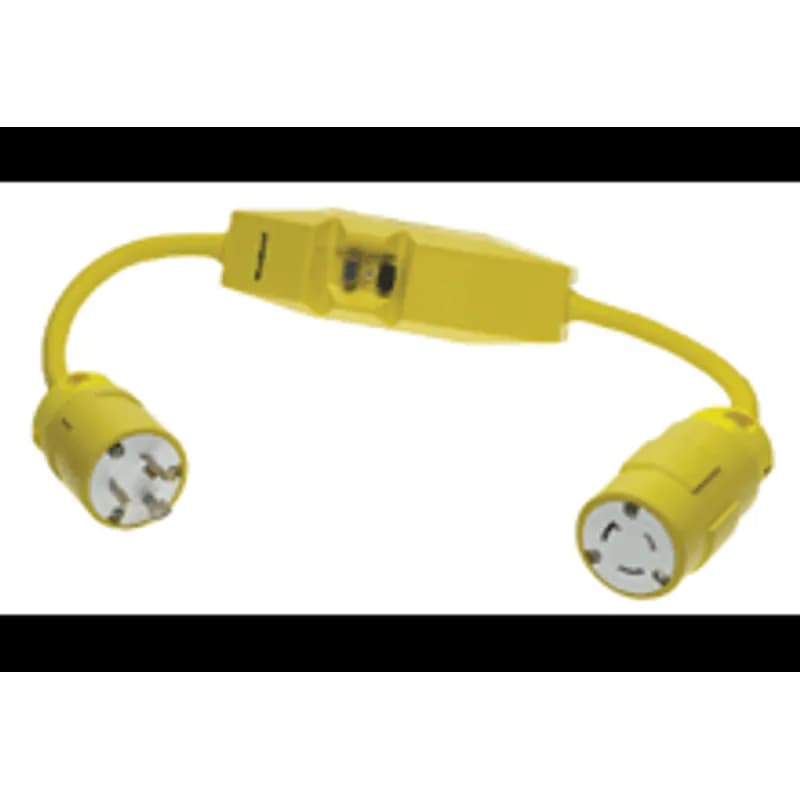

Super-Safeway® Cordset 12 Gauge SOOW, 2 Pole/3 Wire, Cordset Length 0.30m (1.0') NEMA L5-20 125V
