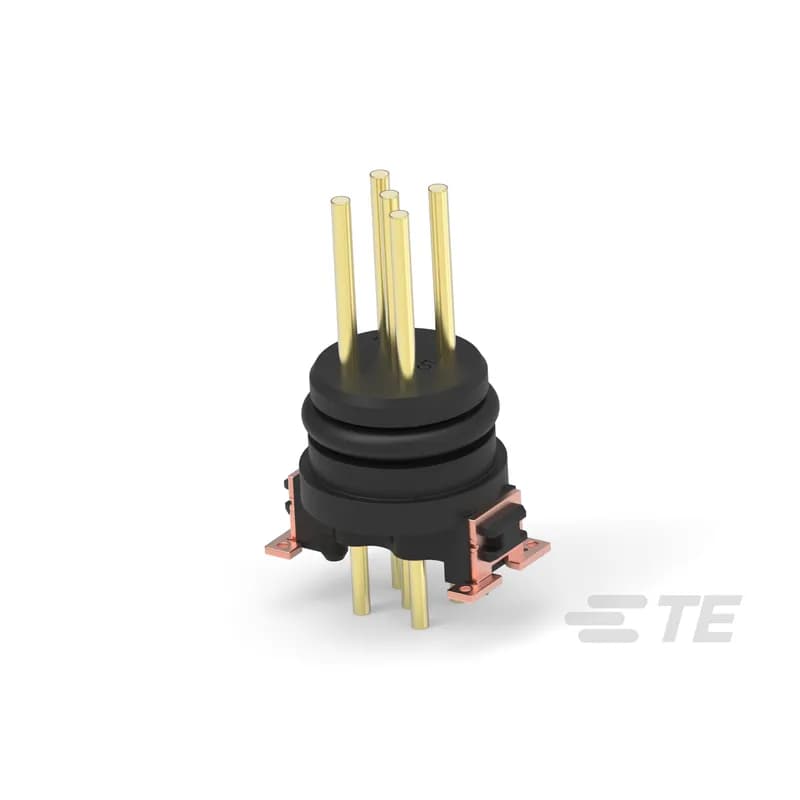

TE Connectivity 384814-E - 5 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
TE Connectivity

384814-E

Documents & Media
Full Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 100

Multiplier: 1000

*Contact for lower quantities*

Overview

The TE Connectivity 5-Position M12 Circular Connector, identified by SKU 384814-E, is a highly versatile and robust solution designed for demanding cable-to-board applications. This connector is specifically engineered for Printed Circuit Board (PCB) mounting, offering a secure and reliable interface for integrating power, signal, and high-speed data transmission capabilities directly onto your boards. Its sealable design provides crucial protection against environmental ingress, ensuring consistent performance in challenging industrial and automation settings. The M12 connector series is renowned for its durability and compact form factor, and this 5-position variant is no exception. It facilitates the simultaneous transmission of multiple types of data and power, streamlining system design and reducing component count. The A-code designation is a key feature, guaranteeing broad compatibility with other M12 connectors that also utilize the A-coding scheme. This standardization simplifies integration into existing infrastructure and ensures interoperability with a wide range of industrial equipment and control systems. Designed for board mount applications, the 384814-E connector allows for direct soldering or press-fitting onto PCBs, facilitating efficient manufacturing processes. Its robust construction is built to withstand the rigors of industrial environments, including vibration, shock, and exposure to various elements. This makes it an ideal choice for applications such as industrial control systems, factory automation, sensor and actuator connections, and high-speed data communication networks where signal integrity and long-term reliability are paramount. TE Connectivity's commitment to quality ensures that this M12 connector will deliver dependable performance, contributing to the overall efficiency and longevity of your electronic systems.
  • 5-Position M12 Circular Connector
  • Cable-to-Board Application
  • Sealable Design for Environmental Protection
  • Printed Circuit Board (PCB) Mount
  • Supports Power, Signal, and High-Speed Data Transmission
  • A-Code Configuration for Compatibility
  • Robust Construction for Industrial Environments

Specifications

Amperage Rating
4 A
Mounting
Board Mount
Number of Conductors
5
Temperature Rating
-25 - 85 °C
Type
Plug

Similar Products

384812-E

Number of Conductors: 4

384804-E

384891-E

Environmental Conditions: IP67

Standard: UL 94V-0

Voltage Rating: 60 VDC

382811-2

382811-8

382811-9

You May Also Be Interested In

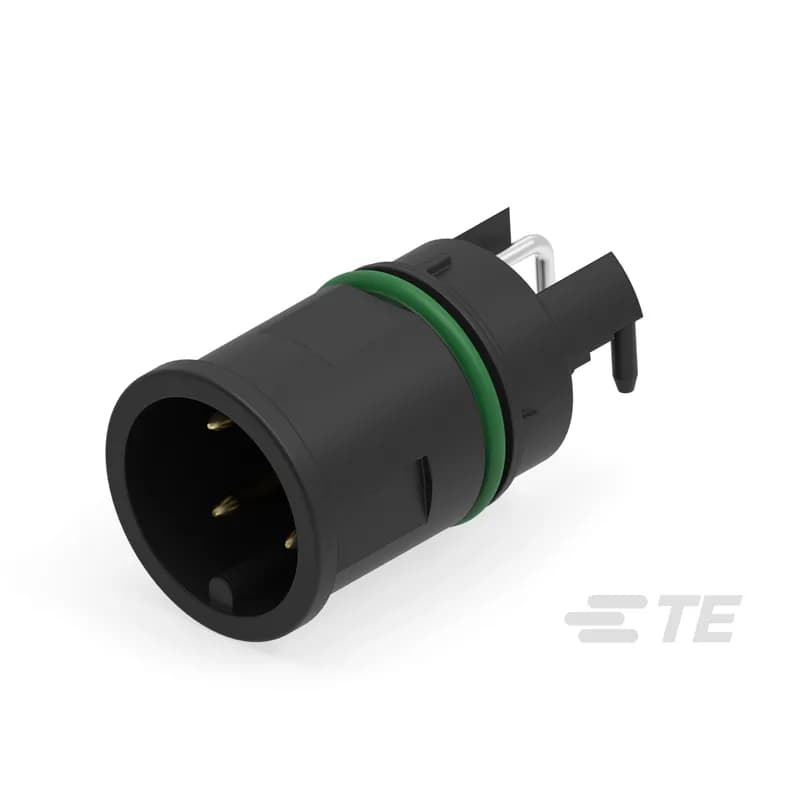

4 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
