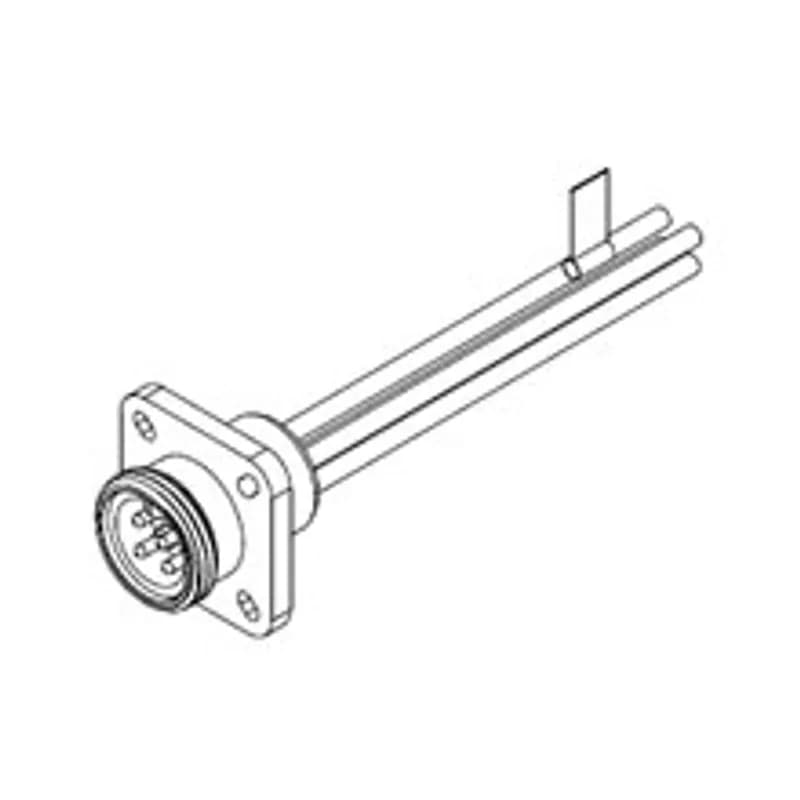

803006D01M020

The wire gauge for this Molex connector is #22 AWG.

This M12 connector is rated for a maximum operating voltage of 300V.

This Molex connector features a brown PVC cable.

The operating temperature range for this connector is -40°C to +105°C.

The maximum current rating for this 3-pole connector is 4A.

Molex supports an extensive range of industrial communication protocols across both safe and non-safe categories. Non-safe protocols include PROFIBUS, PROFINET, DeviceNet, EtherNet/IP, CC-Link, CC-Link IE, CanOpen, Modbus, and EtherCAT. For safety protocols, Molex offers CIP Safety, PROFIsafe, and CC-Link IE Safety. The company is recognized as an Industrial Communication Competence Center and actively designs its own industrial communication technology stacks for PROFINET and EtherNet/IP.

Molex products comply with multiple international standards and certifications, including NEMA (Types 4, 4X, 6, 6P), IP ratings (IP65, IP66, IP67, IP69K), and industrial communication protocols such as PROFINET, EtherNet/IP, DeviceNet, and safety standards like CIP Safety and PROFIsafe. The company is actively involved in key industrial standards committees like PNO, ODVA, CLPA, and IEC, ensuring comprehensive compliance across industrial automation applications.

Molex products are used across multiple critical industrial sectors, including food and beverage, water and wastewater treatment, oil and gas, petrochemical facilities, electric and electronic machinery, robotics, electric panels, and control equipment. Their connectivity solutions support complex industrial automation applications through multipole industrial connectors, heavy-duty connectors, and comprehensive communication protocol compatibility for power, control, and signal circuit connectivity.

Molex offers comprehensive technical support across multiple product lines. For electrical solutions like Woodhead Wiring Devices, Portable Lighting, and Cable Grips, customers can contact Electrical Tech Support at 1-800-225-7724 (Option 1) or email [email protected]. For automation and network communication products, including Passive Media, Network Media, and Brad Power solutions, customers can reach Automation Tech Support at 1-800-225-7724 (Option 1) or email [email protected]. Additionally, specialized Network Communication Tech Support is available at 1-800-225-7724 (Option 4) or [email protected] for Harsh I/O Modules, Network Interface Cards, and Ethernet Switches.

Molex offers a comprehensive range of industrial automation interconnect products, including network interface cards for multiple communication protocols like PROFINET, EtherNet/IP, and safety networks. Their product portfolio spans passive media, network media, and power applications, with over 100,000 reliable products designed to interconnect entire automation infrastructures. Key product lines include industrial communication interfaces, connectivity solutions supporting standards like 7/8" Mini-Change, M12, and M8 connectors, and fieldbus communication protocol components for both safe and non-safe applications.

Molex products offer comprehensive industrial automation connectivity solutions with key features including extensive communication protocol support, robust design capabilities, and versatile connectivity options. Their product line supports multiple fieldbus protocols like PROFINET, EtherNet/IP, DeviceNet, and safety protocols including CIP Safety and PROFIsafe. Molex provides fully integrated manufacturing capabilities with expertise in stamping, plating, molding, assembly, and electronic population, enabling complete interconnect solutions for industrial applications.

Molex products are rated for multiple environmental protection standards, including NEMA Type 4, 4X, 6, 6P, and IP ratings of IP65, IP66, IP67, and IP69K. These ratings make them suitable for demanding industrial environments such as food and beverage, water treatment, oil and gas, and petrochemical facilities. The products offer robust protection against dust, water ingress, high-pressure washing, and extreme temperature conditions.

Molex products are typically installed using precise pin and socket configurations with specific wiring options. Depending on the product line, installation involves matching pin assignments (such as V+, V-, Drain, and signal lines) and using coupling nuts made of materials like epoxy, zinc, or stainless steel. Proper torque specifications and careful alignment of connectors are critical for reliable industrial automation connections.
