Schlegel Elektrokontakt BT Switching Function: MomentaryContact Type: Faston Terminals 2.8 X 0.8 Mm Contact…

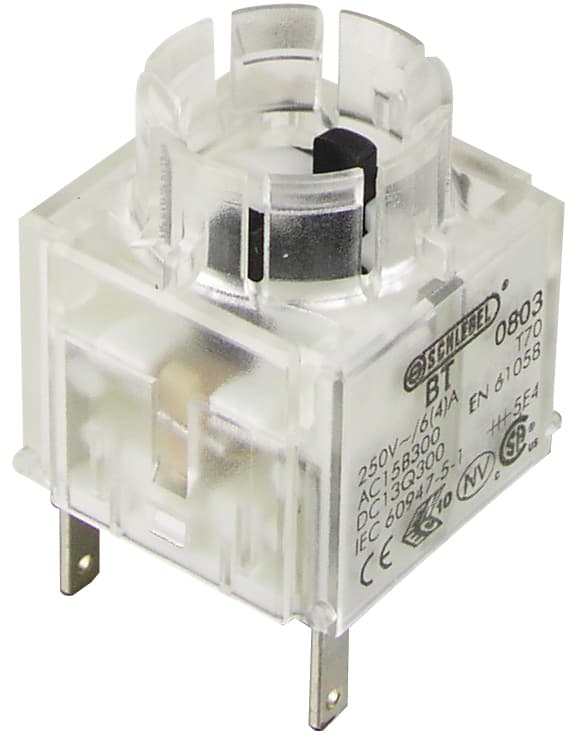

The Schlegel Elektrokontakt BT Momentary Switch (SKU: BT) offers reliable and precise control for industrial applications. This switch features a momentary action, providing a 1 Normally Closed (NC) and 1 Normally Open (NO) contact configuration. The contact material is AgNi, known for its durability and conductivity. Connection is facilitated by Faston terminals measuring 2.8 x 0.8 mm, ensuring secure and efficient electrical connections. The rated insulation voltage (Ui) is 300V, and the thermal continuous current (Ith) is 16A. For AC15 applications, the rated operating voltage (Ue) is 240V with a rated operating current (Ie) of 3A. For DC13 applications, the rated operating voltage (Ue) is 250V at 0.2A or 24V at 2A. The switch boasts a substantial lifetime of 1 million switching cycles under rated load. It is designed with positive opening contacts (NC) in compliance with EN 60947-5-1. The ingress protection rating is IP00, indicating suitability for environments protected from dust and water ingress. Manufactured in Germany, the Schlegel Elektrokontakt BT switch is engineered for consistent operation in control panels, automation systems, and machinery where accurate switching is paramount. Its robust construction and reliable performance make it a dependable choice for critical industrial functions.
