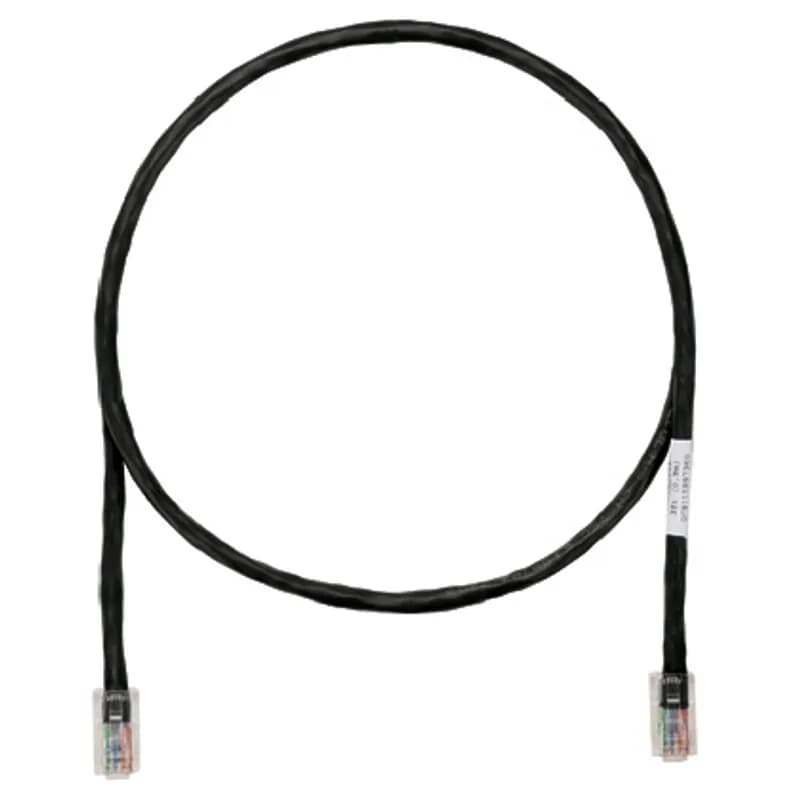

Panduit UTPCH9BLY - The TX5e Cat 5e UTP Patch Cord is a 9-Foot, Black cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit

UTPCH9BLY

UPC: 074983176908

Documents & Media
BrochureTechnical BulletinTechnical DrawingFull Engineering DrawingSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit TX5e Cat 5e UTP Patch Cord (SKU: UTPCH9BLY) is a 9-foot, black networking cable designed for reliable data transmission. Constructed with 24 AWG, unshielded twisted pair (UTP) stranded CM cable, it ensures consistent performance for your network infrastructure. This patch cord features Panduit's Pan-Plug modular plugs, engineered for secure and dependable connections. A key innovation is the tangle-free latch, which significantly reduces snagging during installation or cable management, allowing for faster and more efficient moves, adds, and changes within your network environment. This feature streamlines operations and minimizes downtime. Furthermore, the UTPCH9BLY is enabled with RapidID technology. It comes with pre-installed barcodes, facilitating simple and accurate port mapping when used with RapidID software. This integration enhances network visibility and simplifies troubleshooting and inventory management. Manufactured in the US, this cable adheres to quality standards for commercial building (CM) applications. Its robust construction and intelligent features make it a practical choice for data centers, telecommunications rooms, and enterprise networks requiring dependable Cat 5e connectivity.
  • 9-foot, black Cat 5e UTP patch cord
  • 24 AWG stranded CM cable
  • Pan-Plug modular plugs for secure connections
  • Tangle-free latch prevents snags and ensures fast release
  • RapidID enabled with pre-installed barcodes for simple port mapping

Specifications

Application
(1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot Type
Modular Plug
Cable Type*
U/UTP
Color
Black
Conductor Material
Copper
Connection Type
Pan-Plug Modular Plugs
Jacket Material
Polyvinyl Chloride (PVC)
Length
9.00 In.
Material
CM cable
Outside Diameter
0.215 in
Outside Diameter
5.461 mm
Performance Level*
Category 5e
Plug Type
Modular Plug
Series
TX5e
Size
9-Foot
Standard
Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz;IEC 60603-7;Meets ANSI/TIA-1096-A (formerly FCC Part 68);UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80
Temperature Rating, Maximum
140 F
Temperature Rating, Maximum
60 C
Temperature Rating, Minimum
140 F
Temperature Rating, Minimum
60 C
Type
Patch Cord
Wire Size
24 AWG
Package Dimensions (L x W x H)
11 IN x 9 IN x 1.5 IN
Package Weight (Imperial)
0.769 lbs
