Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview

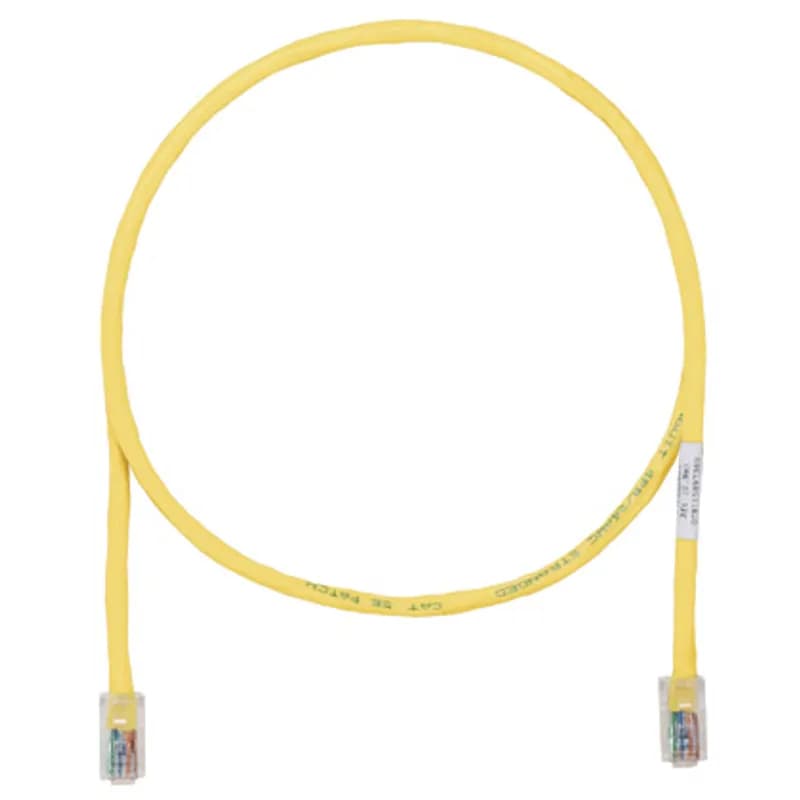

- Category 5e UTP patch cord for Gigabit Ethernet up to 100 MHz
- 18-foot length with yellow PVC jacket for easy identification
- Pan-Plug modular plugs on both ends for secure connections
- Meets TIA/EIA-568-C.2 standards for performance and durability
- Suitable for office, data center, and industrial environments
Specifications
Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM)(3) Token Ring 4/16(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Yellow |
Conductor Material | Copper |
Length | 18.00 In. |
Outside Diameter | 0.21 In. |
Performance Level* | Category 5e |
Plug Type | Modular Plug |
Standard | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 standards; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7; UL 1863 approved; Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications; CE Compl |
Temperature Rating | 140 F |
Type | Patch Cord |
Wire Size | 24 AWG |
Package Dimensions (L x W x H) | 11 IN x 9 IN x 1.5 IN |
Package Weight (Imperial) | 0.515 lbs |
Similar Products
UTPCH10YLY
Jacket Material: Polyvinyl Chloride (PVC)
Outside Diameter: 0.215 in
Temperature Rating, Maximum: 140 F
You May Also Be Interested In
Frequently Asked Questions
What is the cable construction of UTPCH18YLY?
The UTPCH18YLY is constructed of 24 AWG unshielded twisted pair stranded copper cable.
Is UTPCH18YLY compatible with T568A and T568B?
Yes, the UTPCH18YLY is compatible with both T568A and T568B wiring schemes.
What performance standards does UTPCH18YLY meet?
It meets ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 standards.
What lengths are available for UTPCH18YLY?
The UTPCH18YLY is available in multiple lengths from 1 to 20 feet and 0.5 to 10 meters.
What applications does UTPCH18YLY support?
It supports Ethernet, ATM, Token ring, voice/data systems, and VoIP applications.
What is the diameter of the UTPCH18YLY cable?
The cable diameter of UTPCH18YLY is 0.215 in (5.5 mm) nominal.
What is the PoE compliance for UTPCH18YLY?
The UTPCH18YLY meets IEEE 802.3af and IEEE 802.3at requirements for PoE applications.
What color options are available for UTPCH18YLY?
UTPCH18YLY is available in multiple colors including Black, Blue, Green, Red, Yellow, Orange, and Violet.
What is the flammability rating of UTPCH18YLY?
The UTPCH18YLY has a flammability rating of CM or LSZH.
How many mating cycles is UTPCH18YLY rated for?
The plug contact of UTPCH18YLY is rated for 2500 mating cycles.
