Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*

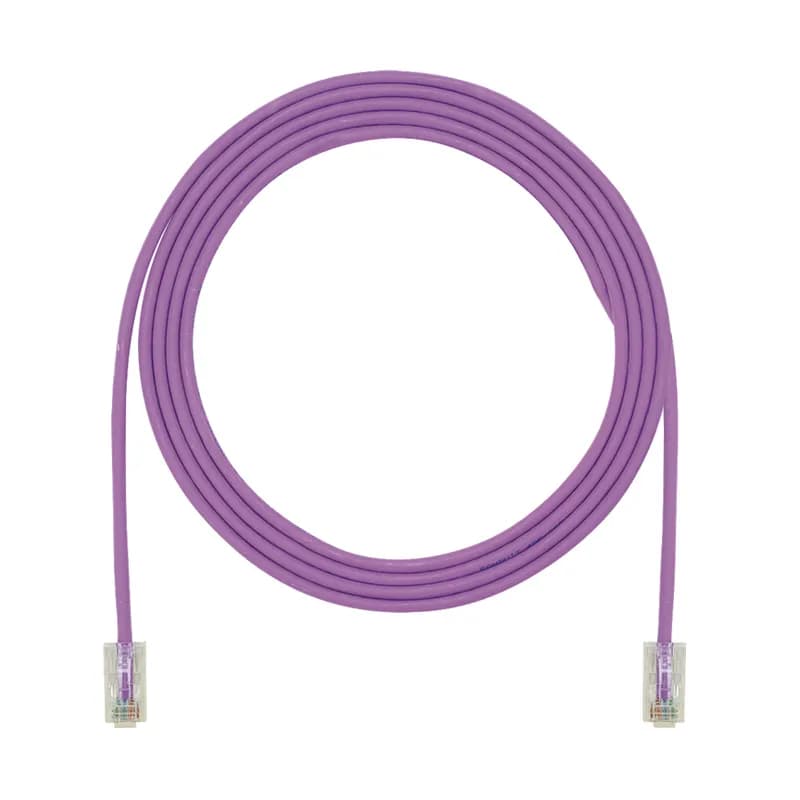

Overview
- Category 5e performance for up to 100 MHz bandwidth
- 28 AWG conductors for space efficiency without signal loss
- 6-meter length with Pan-Plug modular connectors on both ends
- Violet jacket for easy identification in cable management
- TIA/EIA-568-C.2 compliant for structured cabling systems
Specifications
Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Voice/data systems (4) Voice over Internet Protocol (VoIP) |
Boot Type | Modular Plug |
Cable Type* | U/UTP |
Color | Violet |
Conductor Material | Copper |
Connection Type | Modular Plugs |
Material | UTP |
Outside Diameter | 0.15 In. |
Performance Level* | Category 5e |
Plug Type | Modular Plug |
Size | 6 meters |
Standard | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D electrical performance requirements; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE a |
Temperature Rating | 167 F |
Type | Patch Cord |
Wire Size | 28 |
Package Dimensions (L x W x H) | 11 IN x 9 IN x 1.5 IN |
Package Weight (Imperial) | 0.343 lbs |
Similar Products
You May Also Be Interested In
Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
What is the cable diameter of UTP28CH4.5M?
The cable diameter is 0.149 inches (3.8mm) nominal.
Is the patch cord compliant with safety standards?
Yes, it is cULus Listed and complies with UL 1863 and CAN/CSA-C22.2.
What is the compliance with PoE applications?
It supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications.
What types of applications does this patch cord support?
It supports applications like 1000BASE-T, 100BASE-T, VoIP, and ATM.
What is the flammability rating of the cable?
The cable has a CM/LSZH dual-rated flammability rating.
What materials are used for the plug contacts?
The contacts are gold plated phosphor bronze with 50 microinches of gold plating.
How many mating cycles is the plug rated for?
The plug is rated for 2500 mating cycles.
