Contact for Pricing
Overview
- Designed for 45° angled wire caps
- Ensures precise and efficient wire termination
- Durable steel construction for long-term performance
- Manufactured by Panduit, a leader in electrical infrastructure
- Improves productivity in industrial and commercial installations
Specifications
Application | Terminates 45 degree wire caps |
Cable Entry | NA |
Color | Red |
Depth | 0.63 in |
Environmental Conditions | NA |
Material | Glass-Filled Nylon |
Model | NA |
Slot Capacity | NA |
Standard | RoHS Directive is not applicable |
Type | Angled Jack Module Termination Tool |
Width | 0.63 In. |
Package Dimensions (L x W x H) | 4.55 IN x 3.5 IN x 0.85 IN |
Package Weight (Imperial) | 0.051 lbs |
CJRCAPRD

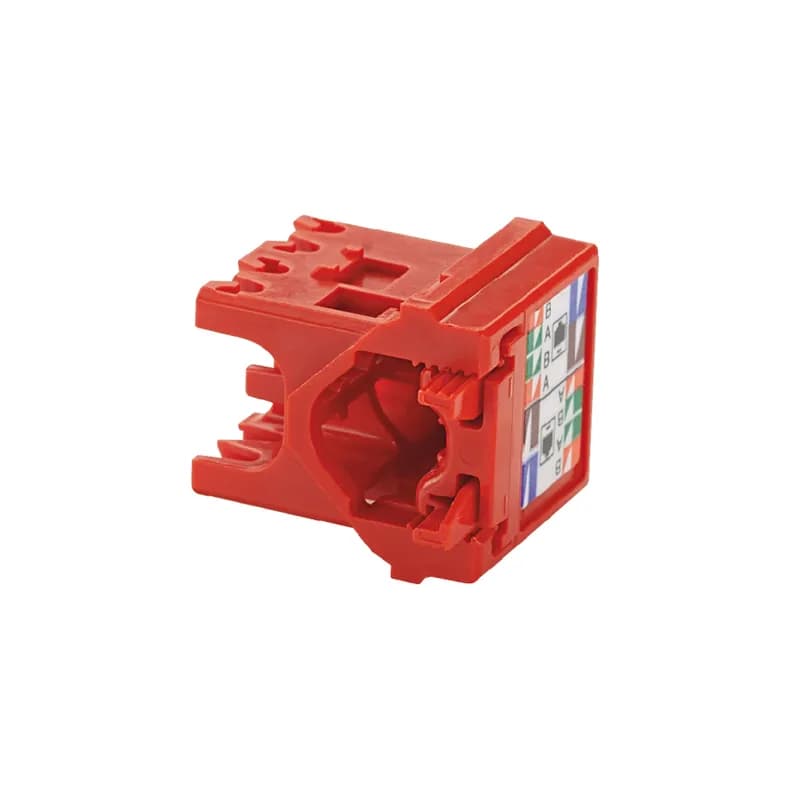

The TX6A Right Angle Wire Cap provides a side opening allows cable to be terminated to the right or left side of the jack module, and is ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated.Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
What cable sizes are compatible with the wire caps?
The wire caps are compatible with 22 – 26 AWG solid or stranded cable.
What types of jack modules are compatible?
They are compatible with TX6A and TX6 PLUS Mini-Com UTP and shielded jack modules.
What is the PoE compliance of the wire caps?
They meet IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4 standards.
What is the depth reduction provided by the angled wire caps?
The angled wire caps allow up to 55% reduction in cable routing depth compared to straight exit wire caps.
What performance standards do the wire caps exceed?
They exceed ANSI/TIA-568.2-D and ISO 11801 standards for respective Category or Class performance levels.
What termination method do the wire caps use?
The wire caps use a forward motion termination method to optimize performance.
What is the overall cable outer diameter range?
The overall cable outer diameter range is 0.2 inches to 0.33 inches (5.08mm - 7.62mm).
Are the wire caps compliant with safety standards?
Yes, they meet UL 1863, CSA standard C22.2, and RoHS compliance.
What is the maximum conductor insulation diameter?
The maximum conductor insulation diameter is 0.060 inches.
How to Install the TGSJT Modular Jacks
This guide provides step-by-step instructions for installing and wiring the TGSJT modular jacks for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Prepare the cable
Ensure the cable is cut to the desired length and strip approximately 1.75 inches (44.5mm) of insulation from the end of the cable.
- Insert the cable into the wire cap
Fully retract the strain relief before inserting the cable into the wire cap. Bend the wires to ease insertion and ensure they are fully inserted.
- Maintain orientation and terminate
Ensure the orientation of the cap is consistent with the jack. Follow T568A or T568B wiring standards to terminate the wires correctly.
- Verify connections
Use a multimeter to check the continuity of the connections and ensure that all wires are properly terminated.
- Mount the jack
Secure the jack to the designated mounting location using the provided mounting screws, ensuring it is level and stable.
