Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- 26 AWG shielded twisted pair stranded CM/LSZH cable for robust data transmission
- Patented tangle-free latch prevents snags and ensures easy release for efficient MACs
- Pan-Plug modular plugs provide secure and consistent network connections
- 10-meter length offers flexibility in network layout
- International gray cable with yellow boot for clear identification and management
Specifications
Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
Boot Type | Modular Plug |
Cable Type* | F/UTP |
Color | International Gray |
Conductor Material | Copper |
Jacket Material | LSZH Material |
Length | 32.81 In. |
Outside Diameter | 0.205 in |
Outside Diameter | 5.207 mm |
Performance Level* | Category 5e |
Plug Type | Modular Plug |
Standard | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz;IEC 60603-7;Meets ANSI/TIA-1096-A (formerly FCC Part 68);UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80 |
Temperature Rating, Maximum | 140 F |
Temperature Rating, Maximum | 60 C |
Temperature Rating, Minimum | 140 F |
Temperature Rating, Minimum | 60 C |
Type | Patch Cord |
Wire Size | 26 AWG |
Package Dimensions (L x W x H) | 10 IN x 12 IN x 1.5 IN |
Package Weight (Imperial) | 0.765 lbs |

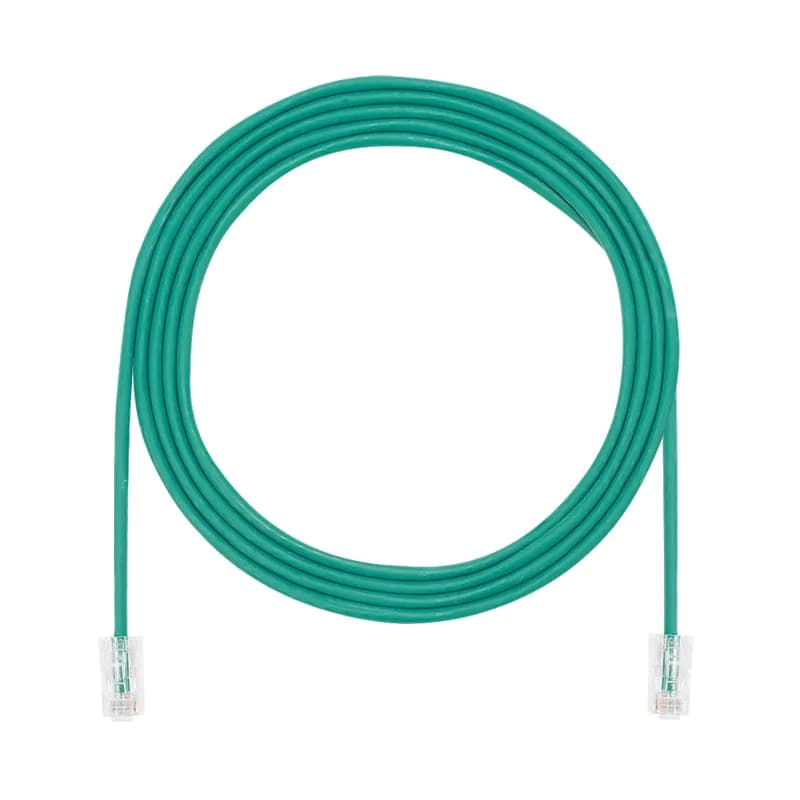

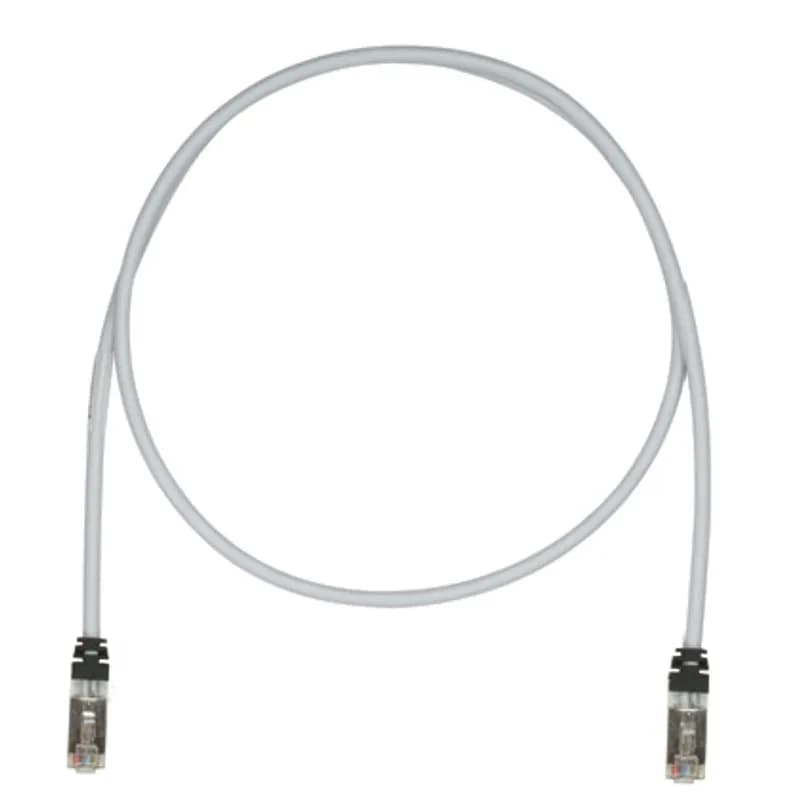

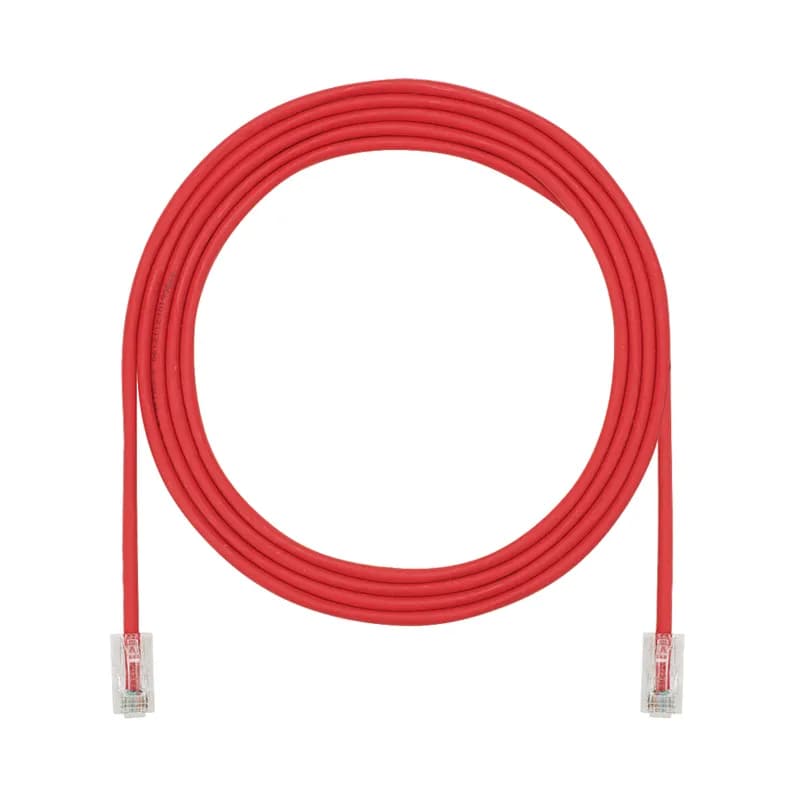

Similar Products
Frequently Asked Questions
What is the maximum frequency supported by this patch cord?
It supports frequencies from 1 to 100 MHz, exceeding ISO 11801 Class D and ANSI/TIA-568.2-D standards.
What wiring schemes are compatible with this patch cord?
The patch cord is compatible with both T568A and T568B wiring schemes.
Is this product compliant with RoHS?
Yes, the patch cord is RoHS compliant.
What are the cable specifications for STPCH10MBYL?
The cable is 26 AWG shielded twisted pair stranded copper with a nominal diameter of 0.205 in.
What is the PoE compliance rating?
It is rated for 2500 cycles with IEEE 802.3af, 802.3at, and 802.3bt type 3 and type 4.
What lengths are available for this patch cord?
The patch cord is available in lengths from 1 to 40 meters in 1-meter increments.
How many mating cycles is the plug rated for?
The plug is rated for 2500 mating cycles.
What applications does this patch cord support?
It supports Ethernet, ATM, Token Ring, voice/data systems, and VoIP applications.
What is the flammability rating of the patch cord?
The patch cord has a CM/LSZH dual flammability rating.
What safety compliance standards does this product meet?
It meets ANSI/TIA-1096-A and IEC 60603-7 compliance standards.
