Contact for Pricing
Overview
- 25-inch deep, 1 RU adjustable shelf for 2-post EIA racks
- Supports test gear, computer equipment, and small networking devices
- Mounts to front and back of 3" (76mm) or 6" (152mm) channel racks
- Heavy-duty steel construction with 250 lb load capacity
- One-piece design for easy installation
Specifications
Application | NA |
Color | Black |
Depth | 25 In. |
Material | Steel |
Size | 25 inches deep, 1 RU |
Standard | RoHS Compliant |
Type | Rack Shelf |
Width | 19 in |
Width | 482.6 mm |
Package Dimensions (L x W x H) | 29.5 IN x 23.1 IN x 5.2 IN |
Package Weight (Imperial) | 24.32 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
PDCP2078
DataCom Enclosure Pkg, Bulletin DPVD (PROLINE® Voice and Data Package - PROLINE Voice and Data Package), Size/Dims: 2000x700x800mm, Material: Steel, Finish: Lt Gray
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions

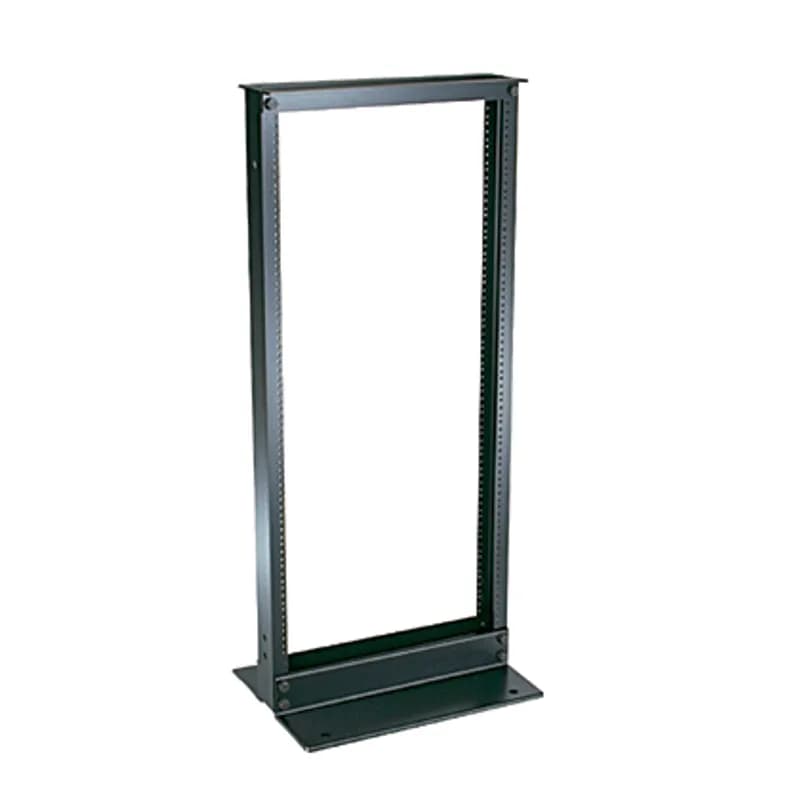

What is the weight capacity of the 2-Post rack?
The 3-inch channel rack is UL listed for 1000 lbs, while the 6-inch channel rack is UL listed for 1500 lbs.
What is the UL listing for the rack?
The rack is UL listed for load ratings of 1000 lbs for 3-inch channel and 1500 lbs for 6-inch channel.
What are the dimensions of the SRM19CMV3 shelf?
The SRM19CMV3 shelf measures 5.2 inches high, 19.0 inches wide, and 12.5 inches deep.
What mounting options are available for the rack?
The rack features double-sided #12-24 mounting holes and multiple mounting hole locations for flexible installation.
What materials are used in the rack construction?
The rack is constructed of either extruded aluminum or heavy-duty steel, ensuring durability and lightweight design.
How is the rack grounded?
The rack includes paint piercing washers that fully electrically bond components, simplifying the grounding process.
What accessories are available for the 2-Post rack?
Accessories include front mount shelves, cantilevered shelves, adjustable shelves, and power distribution unit brackets.
Is the rack compatible with cable managers?
Yes, the rack is compatible with both horizontal and vertical cable managers, enhancing cable management.
What is the purpose of printed rack space identification?
Printed rack space identification allows for quick location of rack-mounted equipment, facilitating faster installation.
What is the recommended installation for minimizing deflection?
Utilizing mounting holes closest to the vertical uprights will minimize deflection during installation.
How to Install the SRM19CMV3 Rack Mount Shelf
This guide provides step-by-step instructions for installing the SRM19CMV3 rack mount shelf securely onto a 2-post rack.
Estimated time: 30m
Tools needed:
Screwdriver
Supplies needed:
#12-24 screws, #10-32 screws
- Prepare the rack
Identify the desired location on the 2-post rack for mounting the SRM19CMV3 shelf.
- Attach the shelf brackets
Line up the shelf bracket flange holes with the desired position on the rack. Secure each bracket with the provided #12-24 screws.
- Mount the shelf
Slide the side flanges of the shelf through the notches in the brackets until the screw holes line up. Secure the shelf in place with the provided #10-32 screws.
