Contact for Pricing
Overview

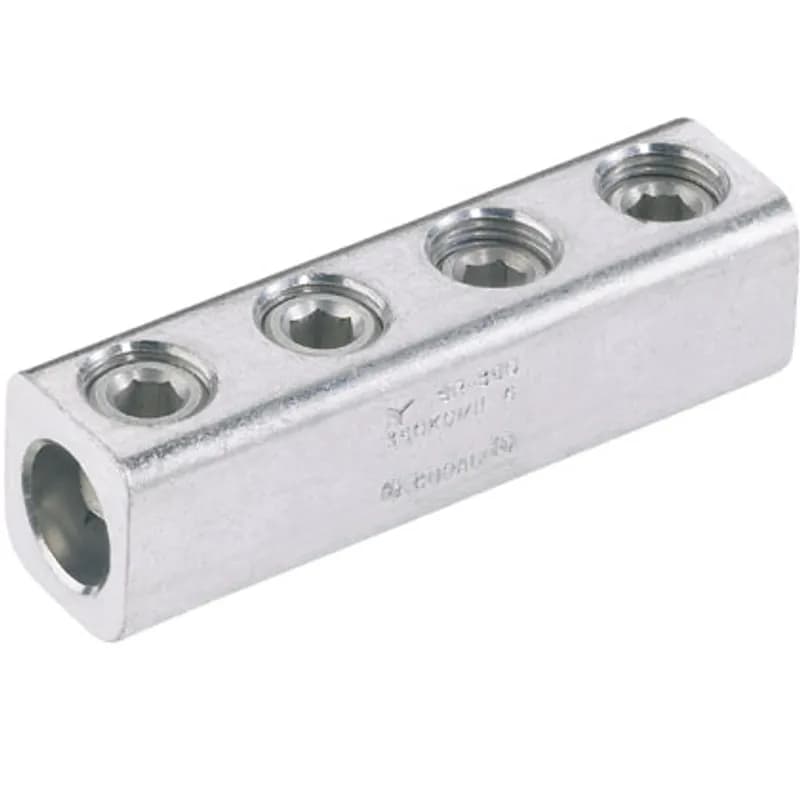

- Dual-rated aluminum splicer/reducer for #6 AWG - 250 kcmil conductors
- Constructed from high-strength 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance and oxidation prevention
- UL Listed (UL486A/B) for wire connectors, 90°C temperature rating
- Pre-filled with oxide inhibiting joint compound for moisture protection
Specifications
Finish | Tin-Plated |
Height | 1.13 IN |
Insulation | Non-Insulated |
Length | 3.94 IN |
Length* | 3.94 |
Material | Aluminum |
Standard | C22.2 No. 65-13 |
Type | Mechanical Splicer/Reducer |
Voltage Rating | NA V |
Package Dimensions (L x W x H) | 8.2 IN x 4.45 IN x 3.4 IN |
Package Weight (Imperial) | 3.65 lbs |
PISR250-1
The PISR250-1 Splicer/Reducer Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Dual rated for use with copper or aluminum conductors. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
PISR500-1
Splicer/Reducer, dual rated for use with copper or aluminum conductors, clear insulation, 500 kcmil - #6 STR.
