Contact for Pricing
Overview
- Welded 12-gauge steel frame with 16 or 14-gauge steel doors and covers
- Dimensions: 78.3"H x 27.6"W x 48.0"D (2026mm x 700mm x 1200mm)
- Single hinge perforated front door and split perforated rear door with locking swing handle
- Two sets of infinitely adjustable tapped 19-inch rack angles (EIA 310-D spacing)

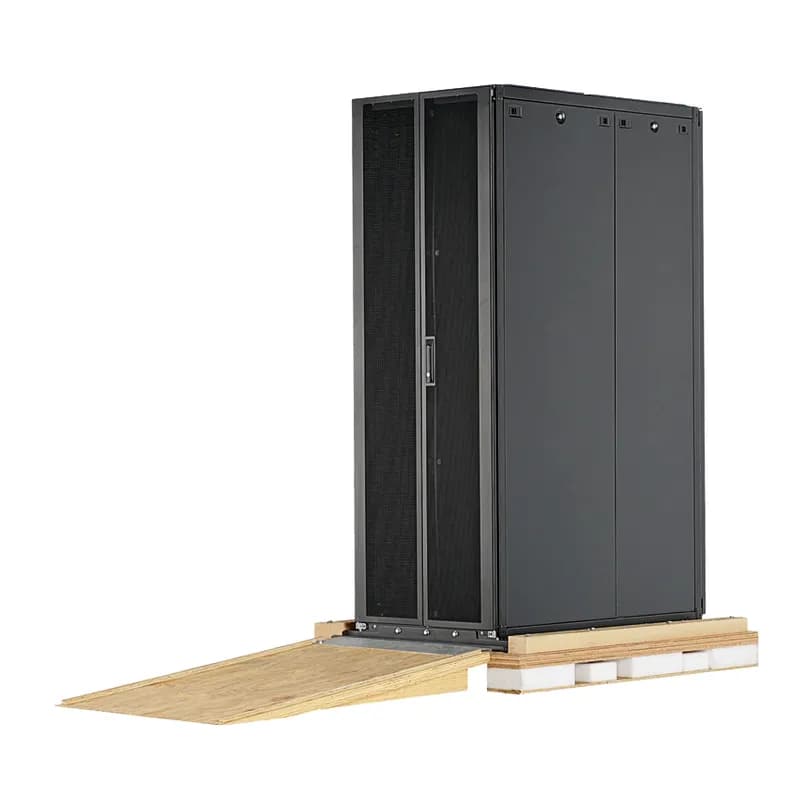

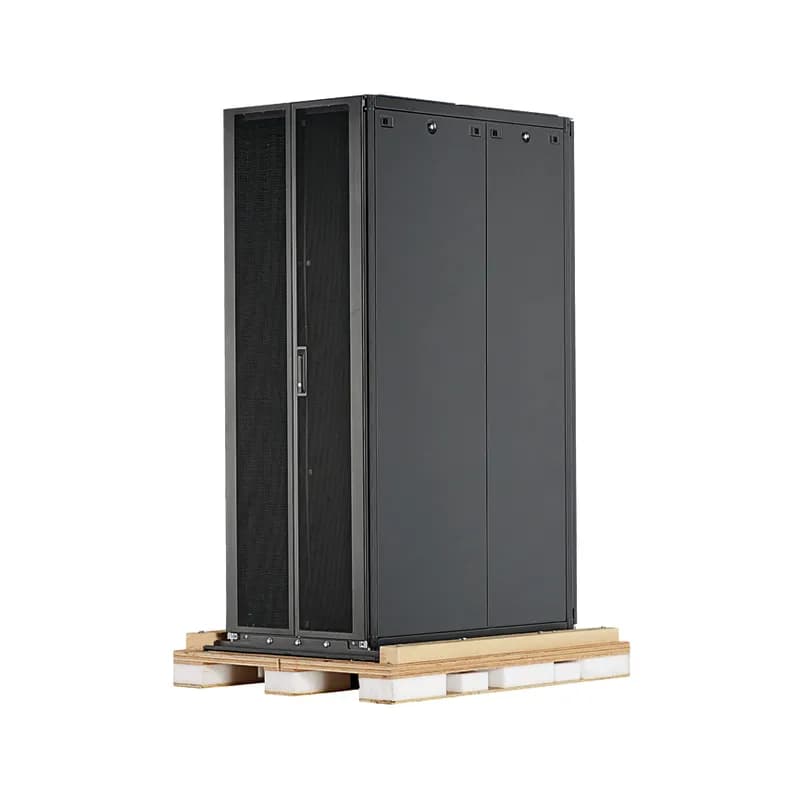

- Includes casters, POU brackets (2 sets), cage nut rails (2 sets), and dynamic pallet (1)
Specifications
Application | NA |
Color | Black |
Depth | 48 In. |
Finish | Powder-coated |
Material | Steel |
Rack Spaces* | 42 |
Series | Net-Access S-Type Dynamic |
Size | 78.3H x 27.6W x 48.0D (2026mm x 700mm x 1200mm) |
Standard | EIA-310-E, TIA/EIA-942, UL Listed 2416, RoHS Compliant |
Type | S-Type Cabinet |
Width | 27.5 In. |
Package Weight (Imperial) | 400 lbs |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the static load rating of the cabinet?
The static load rating is 3000 lbs. for the cabinet.
What is the rolling load rating of the cabinet?
The rolling load rating is 2500 lbs. for the cabinet.
What is the installation time reduction with the leveling feet?
The innovative leveling feet design reduces installation time by up to 80%.
What safety features are included in the cabinet?
The entire cabinet is fully electrically bonded, requiring no grounding whips for safety.
What are the cabinet width options available?
Cabinet widths available are 600mm, 700mm, and 800mm.
What heights are available for the cabinets?
Cabinet heights available are 42RU, 45RU, and 48RU.
Are the cabinets compatible with other Panduit products?
Yes, the cabinets are compatible with various Panduit product lines including FiberRunner®.
What are the color options for the cabinets?
The cabinets are available in black and white color options.
What is the benefit of the integral cabinet air seal?
The integral cabinet air seal improves thermal management and reduces cooling energy consumption.
How can I improve cable management in the cabinet?
Use modular snap-in fingers that align with rack spaces for cable management.
How to Install the NET-ACCESS S-Type Dynamic Server Cabinet
This guide provides step-by-step instructions for safely installing and leveling the NET-ACCESS S-Type Dynamic Server Cabinet.
Estimated time: 1h
Tools needed:
Phillips screwdriver, Flatblade screwdriver, 22mm socket wrench, 15mm socket wrench, 6mm Allen key
Supplies needed:
Mounting screws, Hold down brackets, Leveling legs
- Remove packaging material
Cut and remove all stretch wrap and protective cardboard from the outside of the cabinet. Ensure that the cabinet was shipped in the upright position by checking the tip indicator.
- Position the cabinet
Ensure that the leveling legs are fully retracted. Slide the cabinet into its final position, ensuring it is not standing on the leveling legs.
- Level the cabinet
Lower the leveling legs until the cabinet weight is fully supported. Adjust the leveling legs to ensure the cabinet is level both front-to-back and side-to-side.
- Secure the cabinet to the floor
If necessary, secure hold down brackets at the front and rear of the cabinet. Attach anchors to the floor using appropriate hardware for your floor type.
- Ground the cabinet
Attach a grounding lug or grounding bar at any of the designated locations on the cabinet. Use a M5 bonding screw to secure the grounding connection.
