Panduit S150X225VATY - The S150X225VATY Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 1.5" x 2.25" (38.1 mm x 57.2 mm). Color Clear/White. 5000 labels per package.
Panduit

S150X225VATY

UPC: 074983683925

Documents & Media
BrochureTechnical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 5000

Multiplier: 5000

*Contact for lower quantities*

Overview

The Panduit S150X225VATY is a thermal transfer self-laminating label designed for efficient wire and cable identification. This label features a white print area for clear legend inscription, protected by a transparent overlaminate. This protective layer ensures the legend remains legible and resistant to environmental factors, crucial for long-term identification in industrial settings. The dimensions of 1.5" x 2.25" (38.1 mm x 57.2 mm) are optimized for a variety of wire and cable sizes, facilitating improved organization and identification within your infrastructure. Constructed from durable vinyl, these labels offer resilience for demanding applications. Each package contains 5000 labels, providing ample supply for large-scale projects. For optimal performance and ease of use, the S150X225VATY is compatible with Panduit's Easy-Mark Plus Labeling Software and TDP series thermal transfer printers. This integrated system streamlines the labeling process, ensuring consistent and professional results for your cable coding needs. Upgrade your cable management system with reliable and long-lasting identification solutions from Panduit.
  • Self-laminating design with white print area and clear overlaminate for legend protection.
  • Specifically sized for wire and cable applications: 1.5" x 2.25" (38.1 mm x 57.2 mm).
  • Durable vinyl material ensures long-lasting identification.
  • Compatible with Panduit Easy-Mark Plus Labeling Software and TDP printers.
  • 5000 labels per package for efficient inventory management.

Specifications

Color
White
Length
2.25 In.
Material
Vinyl
Printer Type
Thermal Transfer
Standard
RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979
Temperature Range
150 F
Type
Self-Laminating Label
Width
1.5 In.
Package Dimensions (L x W x H)
10.2 IN x 9.75 IN x 3.65 IN
Package Weight (Imperial)
5 lbs
The S100X225VATY Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150 F (65 C). 1.0" x 2.25" (25.4 mm x 57.2 mm) with a 3.0" (76.2 mm) core. Color White. 5000 per package.

S100X225VATY

The S100X225VATY Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150 F (65 C). 1.0" x 2.25" (25.4 mm x 57.2 mm) with a 3.0" (76.2 mm) core. Color White. 5000 per package.
The S100X225VA1Y Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150 F (65 C). 1.0" x 2.25" (25.4 mm x 57.2 mm) with a 1.0" (25.4 mm) core. Color White. 1500 per package.

S100X225VA1Y

The S100X225VA1Y Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150 F (65 C). 1.0" x 2.25" (25.4 mm x 57.2 mm) with a 1.0" (25.4 mm) core. Color White. 1500 per package.
The S100X150VA1Y Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150 F (65 C). 1.0" x 1.5" (25.4 mm x 38.1 mm) with a 1.0" (25.4 mm) core. Color White. 2500 per package.

S100X150VA1Y

The S100X150VA1Y Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150 F (65 C). 1.0" x 1.5" (25.4 mm x 38.1 mm) with a 1.0" (25.4 mm) core. Color White. 2500 per package.

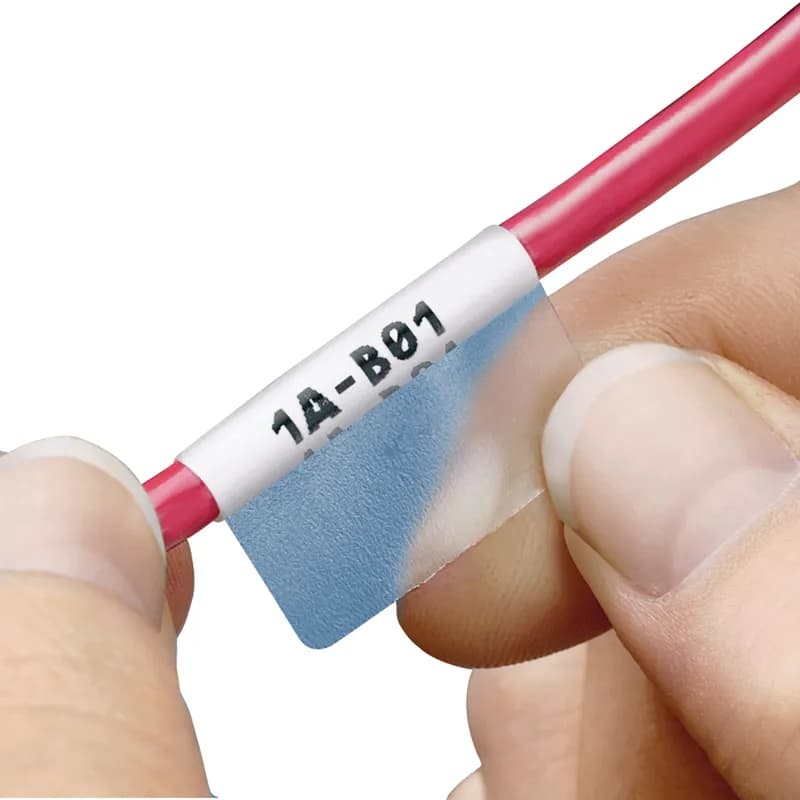

The S200X400VA1Y Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 2.0" x 4.0" (50.8 mm x 101.6 mm). Color Clear/White. 500 labels per package.

S200X400VA1Y

The S200X400VA1Y Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 2.0" x 4.0" (50.8 mm x 101.6 mm). Color Clear/White. 500 labels per package.

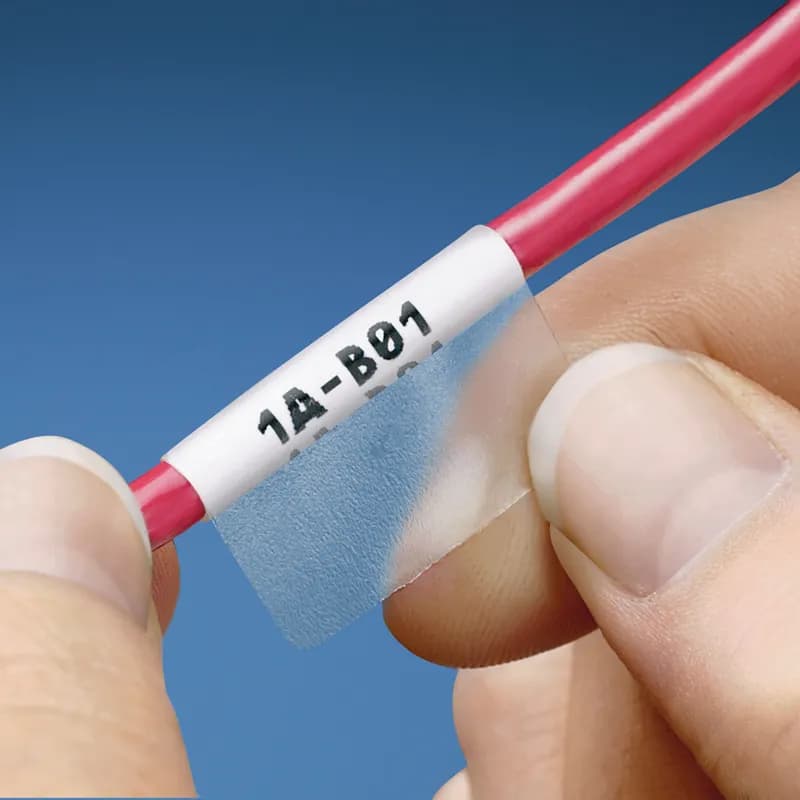

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 5 labels per row. The label has a white colored print-on area 0.25" (6.4 mm) high for 18 - 14 AWG wires and a clear overlaminate. It is 0.75" wide and 0.75" long (19.1 x 19.1 mm) with a 3.0" (76.2 mm) core. It comes in packages of 5000.

S075X075VATY

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 5 labels per row. The label has a white colored print-on area 0.25" (6.4 mm) high for 18 - 14 AWG wires and a clear overlaminate. It is 0.75" wide and 0.75" long (19.1 x 19.1 mm) with a 3.0" (76.2 mm) core. It comes in packages of 5000.

Frequently Asked Questions

What is the print resolution of the medium volume printer?

The medium volume desktop printer has a print resolution of 300 dots per inch (dpi).

What software is included with the printers?

All printers come with the Easy-Mark Plus™ Labeling Software included.

What is included in the PTR-CLN cleaning kit?

The PTR-CLN cleaning kit contains one cleaning pen, eight cleaning solution soaked wipes, eight foam swabs pre-saturated with cleaning solution, an MSDS, and cleaning instructions.

What is the maximum print speed of high volume printers?

High volume desktop printers can print at speeds up to 11.8 inches per second.

What types of labels can be used with the printers?

The printers can use various labels including heat shrink, self-laminating, and vinyl cloth labels, among others.

What is the temperature range for Turn-Tell labels?

Turn-Tell labels operate within a temperature range of -40°F to 150°F (-40°C to 66°C).

What are the maintenance requirements for the printers?

Regular cleaning with the PTR-CLN cleaning kit is recommended to maintain printer performance.

What is the temperature range for vinyl self-laminating labels?

Vinyl self-laminating labels can withstand temperatures ranging from -40°F to 150°F (-40°C to 66°C).
