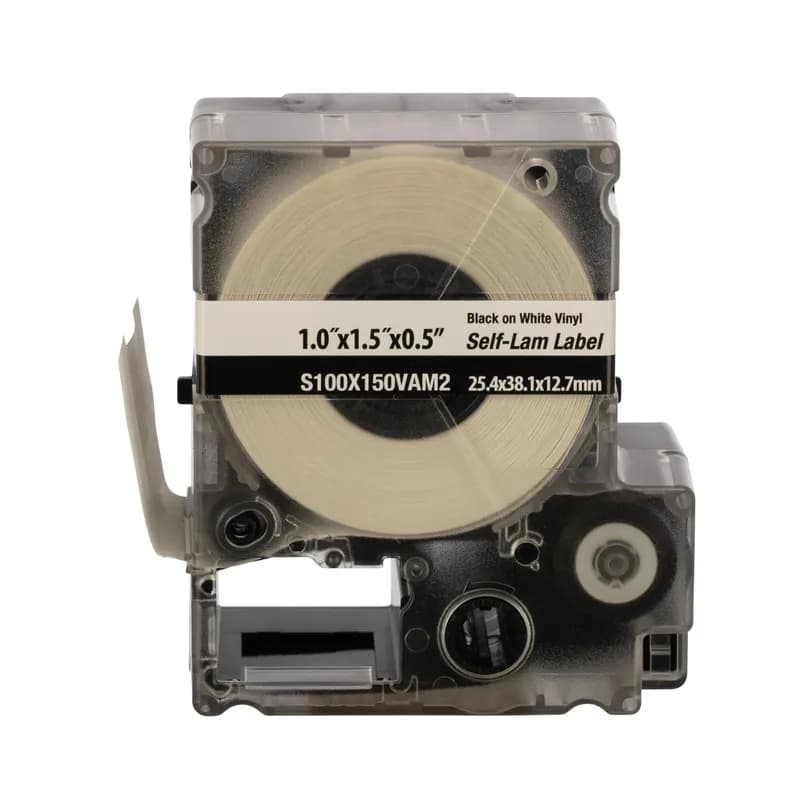

Panduit S100X150VAM2 - The PXE™ Die-Cut Self-Laminating Label Cassette includes both label material and ribbon for easy changeover. Self-laminating vinyl adhesive labels for wire/cable identification include a white print-on area and a clear overlaminate. For use with the MP500 and MP550 printers. 1.00" x 1.50" (25.4 mm x 38.1 mm) with 0.50" (12.7 mm) print-on area. 180 labels per cassette.

Panduit S100X150VAM2 The PXE™ Die-Cut Self-Laminating Label Cassette includes both label material and ribbon…

UPC: 613056902343

Documents & Media
Technical BulletinTechnical DrawingFull Engineering Drawing

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit PXE™ Die-Cut Self-Laminating Label Cassette, SKU S100X150VAM2, is a fast-loading label cassette designed for efficient wire and cable identification in industrial environments. This cassette integrates both label material and print ribbon, enabling quick changeovers between print jobs without manual ribbon swaps. The labels are constructed from self-laminating vinyl adhesive, featuring a white print-on area (0.50" / 12.7 mm height) protected by a clear overlaminate. This design ensures printed information remains legible despite abrasion, moisture, or chemical exposure. Each label measures 1.00" x 1.50" (25.4 mm x 38.1 mm), providing ample space for critical identification data such as circuit numbers, asset tags, or safety warnings. The cassette contains 180 labels, optimizing productivity by reducing downtime associated with label replenishment. Compatible with Panduit MP500 and MP550 thermal transfer printers, the S100X150VAM2 delivers consistent print quality and reliability for labeling applications in electrical panels, control systems, and structured cabling environments. The self-laminating adhesive simplifies application: print the label, wrap the clear overlaminate around the wire or cable, and secure it for a durable, professional finish. Ideal for Cat. 5e/6 cable sizes (0.16"–0.32" / 4.0–8.1 mm outer diameter), this cassette supports high-density labeling in data centers, industrial automation, and telecommunications installations.
  • Fast-loading cassette with integrated label material and print ribbon for quick changeovers
  • Self-laminating vinyl adhesive labels with white print-on area and clear overlaminate for durability
  • Label dimensions: 1.00" x 1.50" (25.4 mm x 38.1 mm) with 0.50" (12.7 mm) print-on area
  • 180 labels per cassette; compatible with Panduit MP500 and MP550 thermal transfer printers
  • Supports Cat. 5e/6 cable sizes (0.16"–0.32" / 4.0–8.1 mm outer diameter)

Specifications

Color
White
Material
Vinyl
Maximum Temperature
150 °F
Series
PXE
Size
1.00" x 1.50" (25.4 mm x 38.1 mm)
Standard
UL969, File number: MH14979, UL2238, File number: MH62615, cUL C22.2 No. 0.15-01, File number: MH14979, RoHS Compliant
Type
Self-Laminating Label Cassette
Width
1 In.
Package Dimensions (L x W x H)
3.7 IN x 9.7 IN x 3 IN
Package Dimensions (L x W x H)
9.398 cm x 24.638 cm x 7.62 cm
Package Weight (Imperial)
1.0500 L
Package Weight (Metric)
0.4763 kg
Voltage marker, 2.25" W x 0.50" H, '120/208 Volts' (legend), vinyl, black/orange, 18 marker/card, 5 cards/package.

PCV-120/208CY

Voltage marker, 2.25" W x 0.50" H, '120/208 Volts' (legend), vinyl, black/orange, 18 marker/card, 5 cards/package.
The PXE™ Die-Cut Self-Laminating Label Cassette includes both label material and ribbon for easy changeover. Self-laminating vinyl adhesive labels for wire/cable identification include a white print-on area and a clear overlaminate. For use with the MP500 and MP550 printers. 1.50" x 1.50" (38.1 mm x 38.1 mm) with 0.50" (12.7 mm) print-on area. 175 labels per cassette.

S150X150VAM2

The PXE™ Die-Cut Self-Laminating Label Cassette includes both label material and ribbon for easy changeover. Self-laminating vinyl adhesive labels for wire/cable identification include a white print-on area and a clear overlaminate. For use with the MP500 and MP550 printers. 1.50" x 1.50" (38.1 mm x 38.1 mm) with 0.50" (12.7 mm) print-on area. 175 labels per cassette.
Printer cleaning kit for desktop printers contains (1) cleaning pen, (8) cleaning solution soaked wipes, (8) foam swabs pre-saturated with cleaning solution, MSDS, and cleaning instructions. It is designed for global usage. It comes in packages of 1.

PTR-CLN

Printer cleaning kit for desktop printers contains (1) cleaning pen, (8) cleaning solution soaked wipes, (8) foam swabs pre-saturated with cleaning solution, MSDS, and cleaning instructions. It is designed for global usage. It comes in packages of 1.
Ground warning tag, 2.75" W x 1.38" H, 'Warning ground wire do not remove' (legend), semi-rigid polyethylene, black/yellow, 100 tags/package, 1 pc. package quantity.

PT-GND

Ground warning tag, 2.75" W x 1.38" H, 'Warning ground wire do not remove' (legend), semi-rigid polyethylene, black/yellow, 100 tags/package, 1 pc. package quantity.
ISO warning symbol, 2" H x 2" W, 'Caution sensitive electronic devices..' (legend), adhesive paper, black/yellow, 500 labels/roll, 1 roll/package.

WL1

ISO warning symbol, 2" H x 2" W, 'Caution sensitive electronic devices..' (legend), adhesive paper, black/yellow, 500 labels/roll, 1 roll/package.
Electrical label in dispenser, 1.0" W x 1.5" H, 'Intrinsically safe wiring' (legend), polyester adhesive, blue/white, 200 labels per package.

PLD-80

Electrical label in dispenser, 1.0" W x 1.5" H, 'Intrinsically safe wiring' (legend), polyester adhesive, blue/white, 200 labels per package.
Inspection Arrow Marker, 0.13 x 0.19, black legend/yellow background.

PARW125-YEL

Inspection Arrow Marker, 0.13 x 0.19, black legend/yellow background.
Pre-printed Network Building Grounding Marker Plate Labeling Kit includes ten printed tags (2.75" X 1.38") and ten flame retardant cable ties.

LTYK

Pre-printed Network Building Grounding Marker Plate Labeling Kit includes ten printed tags (2.75" X 1.38") and ten flame retardant cable ties.

Frequently Asked Questions

What printers are compatible with the S100X150VAM2 label cassette?

The S100X150VAM2 label cassette is designed for use with Panduit MP500 and MP550 printers.

What are the dimensions of the S100X150VAM2 labels?

The labels have a total size of 1.00 inch x 1.50 inches (25.4 mm x 38.1 mm) with a 0.50 inch (12.7 mm) print-on area.

How many labels are included in one S100X150VAM2 cassette?

Each S100X150VAM2 cassette contains 180 labels.

What material are the S100X150VAM2 labels made from?

The labels are made from self-laminating vinyl adhesive.

What is the purpose of the clear overlaminate on these labels?

The clear overlaminate protects the printed information from abrasion, moisture, and chemicals, ensuring long-term legibility.
