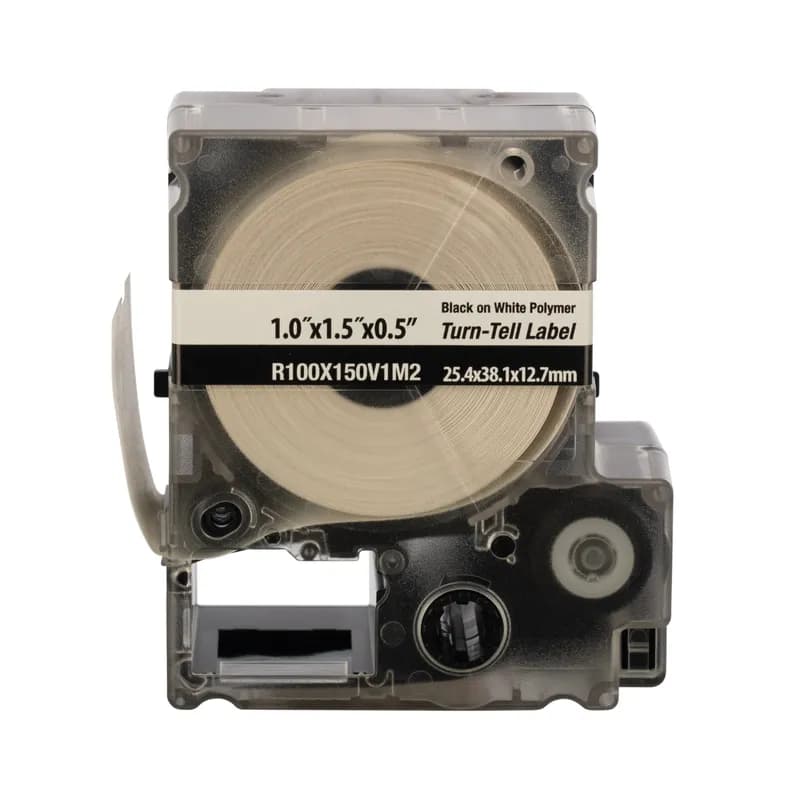

Panduit R100X150V1M2 - PXE MP500/MP550 Cassette, Turn-Tell Label, Vinyl, 1.00"Wx1.50"H, White/Clear

Panduit R100X150V1M2 PXE MP500/MP550 Cassette, Turn-Tell Label, Vinyl, 1.00"Wx1.50"H, White/Clear

UPC: 613056902336

Documents & Media
Technical Bulletin

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Panduit PXE MP500/MP550 Cassette (SKU: R100X150V1M2) is a self-laminating vinyl label cassette designed for cable and wire identification in industrial, telecommunications, and data center environments. Each cassette measures 1.00 inches in width and 1.50 inches in height, with a 0.5-inch printable area for clear, legible text and symbols. The white/clear color scheme provides high contrast for improved readability, while the turn-tell feature allows quick visual confirmation of applied labels. Each cassette contains 100 labels and supports cable outer diameters ranging from 0.22 inches (5.6 mm) to 0.28 inches (7.1 mm), making it compatible with Cat. 5e UTP, Cat. 6 UTP, and Cat. 6A UTP cables. The vinyl construction resists moisture, abrasion, and chemicals, ensuring long-term performance in harsh conditions. Ideal for high-density cable management, this cassette reduces downtime by streamlining identification processes and improving operational efficiency. Its durable design and compatibility with Panduit’s MP series systems make it a reliable solution for labeling in demanding environments.
  • 100 self-laminating vinyl labels per cassette
  • 1.00" width x 1.50" height with 0.5" printable area
  • Supports cable O.D. from 0.22" to 0.28" (5.6 mm to 7.1 mm)
  • Compatible with Cat. 5e UTP, Cat. 6 UTP, and Cat. 6A UTP cables
  • Turn-tell label feature for quick visual confirmation

Specifications

Color
White
Height
0.5 In.
Material
Vinyl
Standard
RoHS Compliant
Temperature Range
150 °F
Type
Turn-Tell Label
Width
1 In.
Package Dimensions (L x W x H)
3.7 IN x 9.7 IN x 3 IN
Package Dimensions (L x W x H)
9.398 cm x 24.638 cm x 7.62 cm
Package Weight (Imperial)
1.0800 L
Package Weight (Metric)
0.4899 kg
The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50" (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a gray print-on area color. The label is 1.0" wide and 1.5" long (25.4 x 38.1 mm). It has a 3.0" (76.2 mm) core and supports 10-6 AWG wire / cable and Cat 5e/6/6A UTP and Cat. 5e FTP cables. It has 4 labels per row and comes in packages of 2500. It can be used with Easy-Mark Plus Labeling Software.

R100X150V4T

The thermal transfer Turn-Tell label made of vinyl has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50" (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a gray print-on area color. The label is 1.0" wide and 1.5" long (25.4 x 38.1 mm). It has a 3.0" (76.2 mm) core and supports 10-6 AWG wire / cable and Cat 5e/6/6A UTP and Cat. 5e FTP cables. It has 4 labels per row and comes in packages of 2500. It can be used with Easy-Mark Plus Labeling Software.
PXE MP500/MP550 Cassette Bulk, Turn-Tell Label, Vinyl, 1.0"Wx1.50"H, White/Clear

R100X150V1M3

PXE MP500/MP550 Cassette Bulk, Turn-Tell Label, Vinyl, 1.0"Wx1.50"H, White/Clear
The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50" (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 1.50" long (25.4 x 38.1 mm). It supports 10-6 AWG wire /cable, Cat 5e/6/6A UTP and Cat 5e FTP cable. It has 6 labels per row, 24 labels per sheet and comes in packages of 1000. It can be used with Easy-Mark Plus Labeling Software.

R100X150X1J

The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.50" (12.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 1.50" long (25.4 x 38.1 mm). It supports 10-6 AWG wire /cable, Cat 5e/6/6A UTP and Cat 5e FTP cable. It has 6 labels per row, 24 labels per sheet and comes in packages of 1000. It can be used with Easy-Mark Plus Labeling Software.
The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.38" (9.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 1.25" long (25.4 x 31.8 mm). It supports 12-10 AWG wire/cable and Cat 3 UTP cable. It has 6 labels per row, 24 labels per sheet, and comes in packages of 1000. It can be used with Easy-Mark Plus Labeling Software.

R100X125X1J

The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.38" (9.7 mm) high. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 1.25" long (25.4 x 31.8 mm). It supports 12-10 AWG wire/cable and Cat 3 UTP cable. It has 6 labels per row, 24 labels per sheet, and comes in packages of 1000. It can be used with Easy-Mark Plus Labeling Software.
The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.25" (6.4 mm). It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 0.75" long (25.4 x 19.1 mm). It supports 18-14 AWG wire/cable and Cat. 6 28 AWG. It has 6 labels per row, 42 labels per sheet, and comes in packages of 2500. It can be used with Easy-Mark Plus Labeling Software.

R100X075X1J

The laser/ink jet, self-laminating Turn-Tell label made of polymer has an innovative design that allows it to rotate to any angle for improved visibility, aesthetics, and easy repositioning on wires and cables. The label has a print-on area 0.25" (6.4 mm). It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. It is clear with a white print-on area color. The label is 1.0" wide and 0.75" long (25.4 x 19.1 mm). It supports 18-14 AWG wire/cable and Cat. 6 28 AWG. It has 6 labels per row, 42 labels per sheet, and comes in packages of 2500. It can be used with Easy-Mark Plus Labeling Software.
Yellow print-on area, 10 6 AWG wire/cable, Cat. 5e/6/6e UTP and Cat. 5e FTP cable, 100/cassette.

R100X150V8C

Yellow print-on area, 10 6 AWG wire/cable, Cat. 5e/6/6e UTP and Cat. 5e FTP cable, 100/cassette.
Yellow print-on area, 8 4 AWG wire/cable, Cat. 6 FTP and Cat. 6a/10Gig cable, 75/cassette.

R100X225V8C

Yellow print-on area, 8 4 AWG wire/cable, Cat. 6 FTP and Cat. 6a/10Gig cable, 75/cassette.
Blue print-on area, 10 6 AWG wire/cable, Cat. 5e/6/6e UTP and Cat. 5e FTP cable, 100/cassette.

R100X150V2C

Blue print-on area, 10 6 AWG wire/cable, Cat. 5e/6/6e UTP and Cat. 5e FTP cable, 100/cassette.

Frequently Asked Questions

What are the dimensions of the R100X150V1M2 cassette?

The cassette measures 1.00 inches in width and 1.50 inches in height.

Is the R100X150V1M2 cassette compatible with Panduit MP500/MP550 systems?

Yes, the R100X150V1M2 cassette is designed for use with Panduit’s MP500/MP550 series cable management systems.

What material is the R100X150V1M2 cassette made of?

The cassette is made of clear vinyl with a white/clear color scheme.

Does the R100X150V1M2 cassette feature a turn-tell label?

Yes, the cassette includes a turn-tell label for easy visual identification.

What environments is the R100X150V1M2 cassette suitable for?

The cassette is suitable for industrial, telecommunications, and data center environments due to its resistance to moisture, abrasion, and chemicals.
